Installation
The ERM needs to be supported on the perimeter panels.
The frame surface should be flat and perfectly aligned with the rooftop bottom plan. Position
the ERM so that it is aligned with the down left corner of the rooftop. See Figure 3.

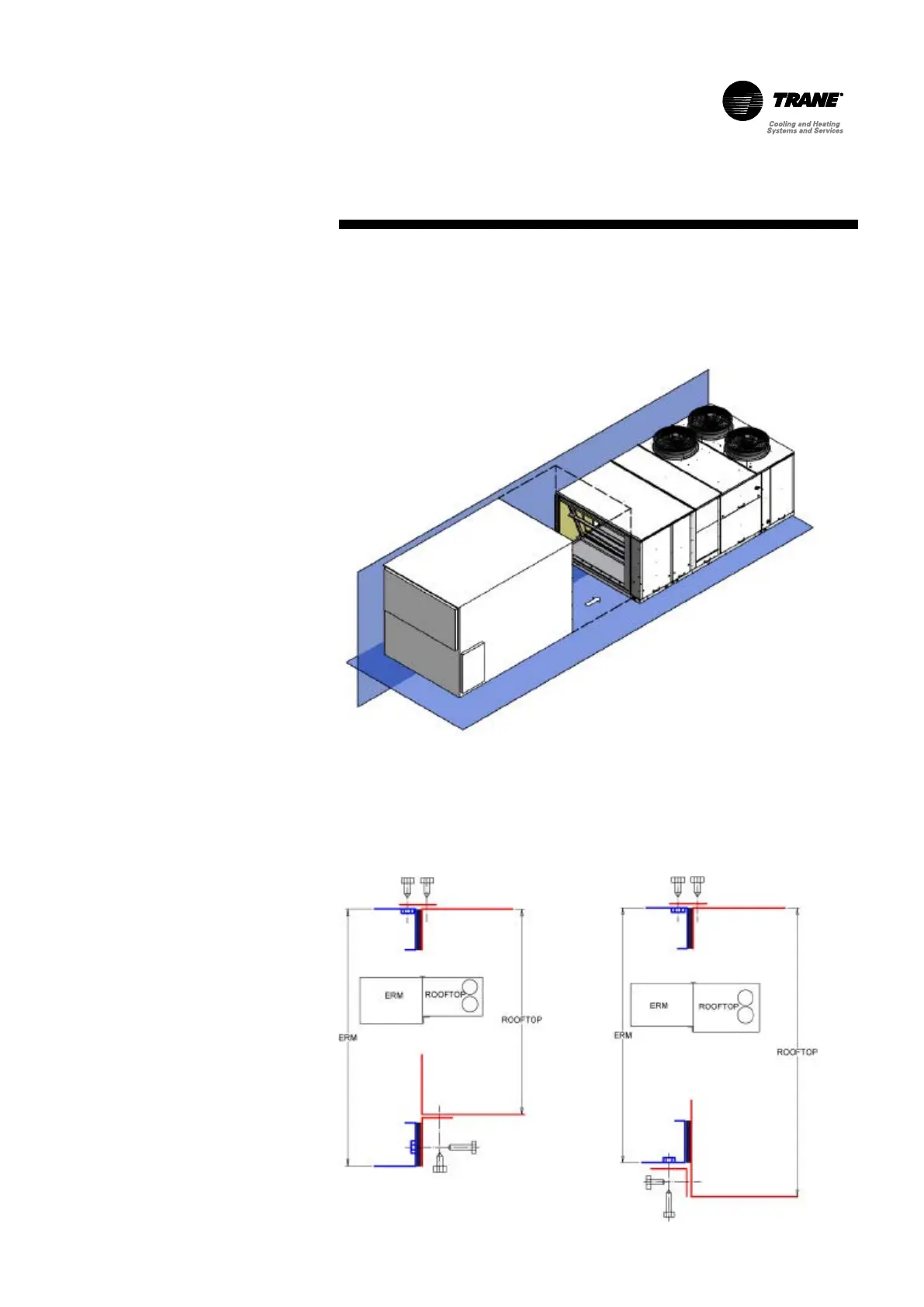

Figure 3 -
Fasten the ERM with the flat / back side flange (1) to ensure the ERM is perfectly aligned
with the rooftop. See Figure 4
Fasten the front side vertical angle flange (2). Verify that the gasket is not damaged during
this operation.
Figure 4 -
