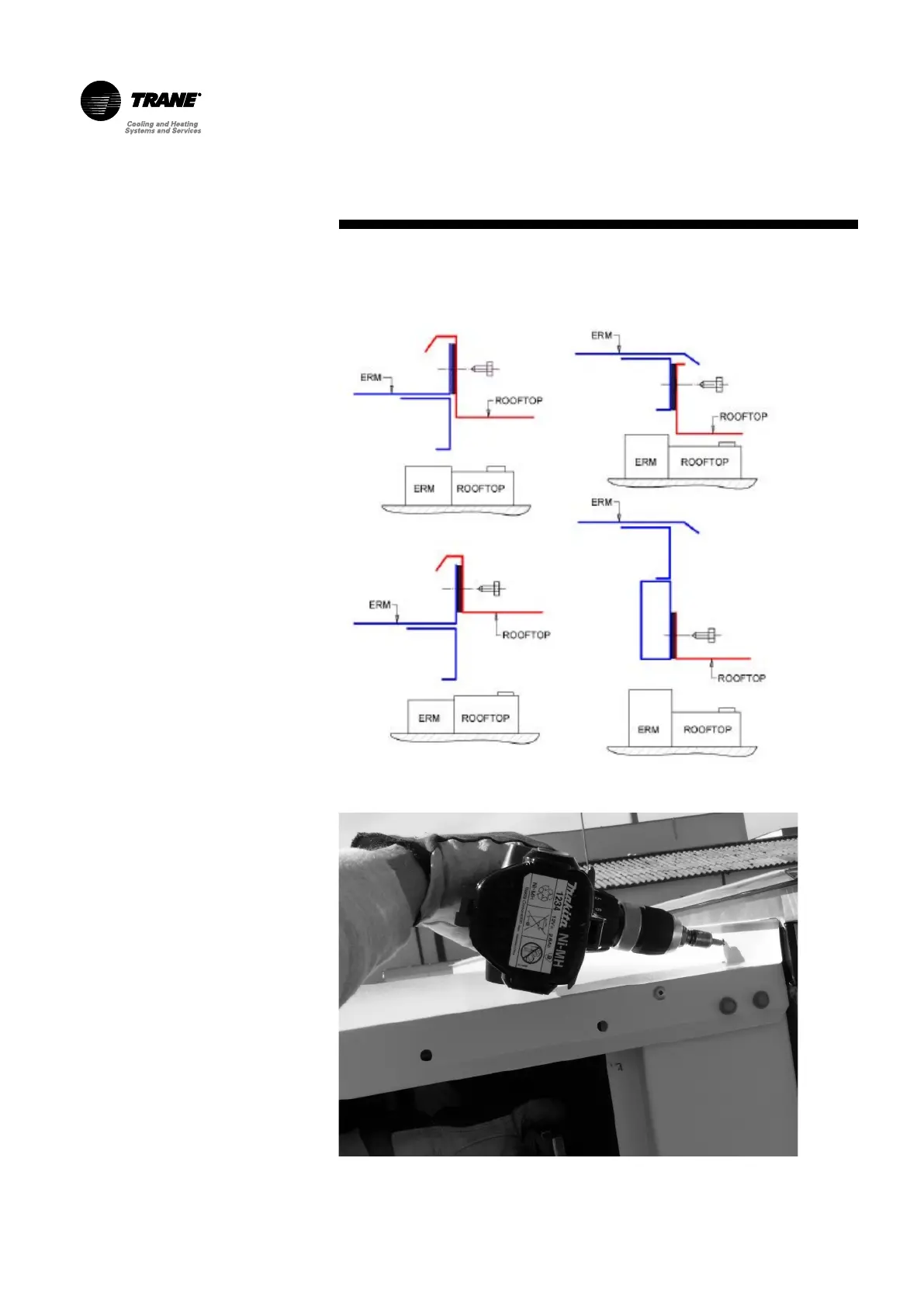

Fasten the roof end to the ERM with self-drilling screws as shown in Figure 5.
Figure 5a -
Figure 5b -
Run all the ERM cable (power and actuator) and transparent hose (if installed) into the
rooftop fresh air / filter section.
Place the fresh air filter into the filter rack located behind the fresh air inlet louver
of the ERM.
