Trane 4TTR4042N - Section 2. Unit Location Considerations

18-AC51D1-10F-EN 3
Table 2.1

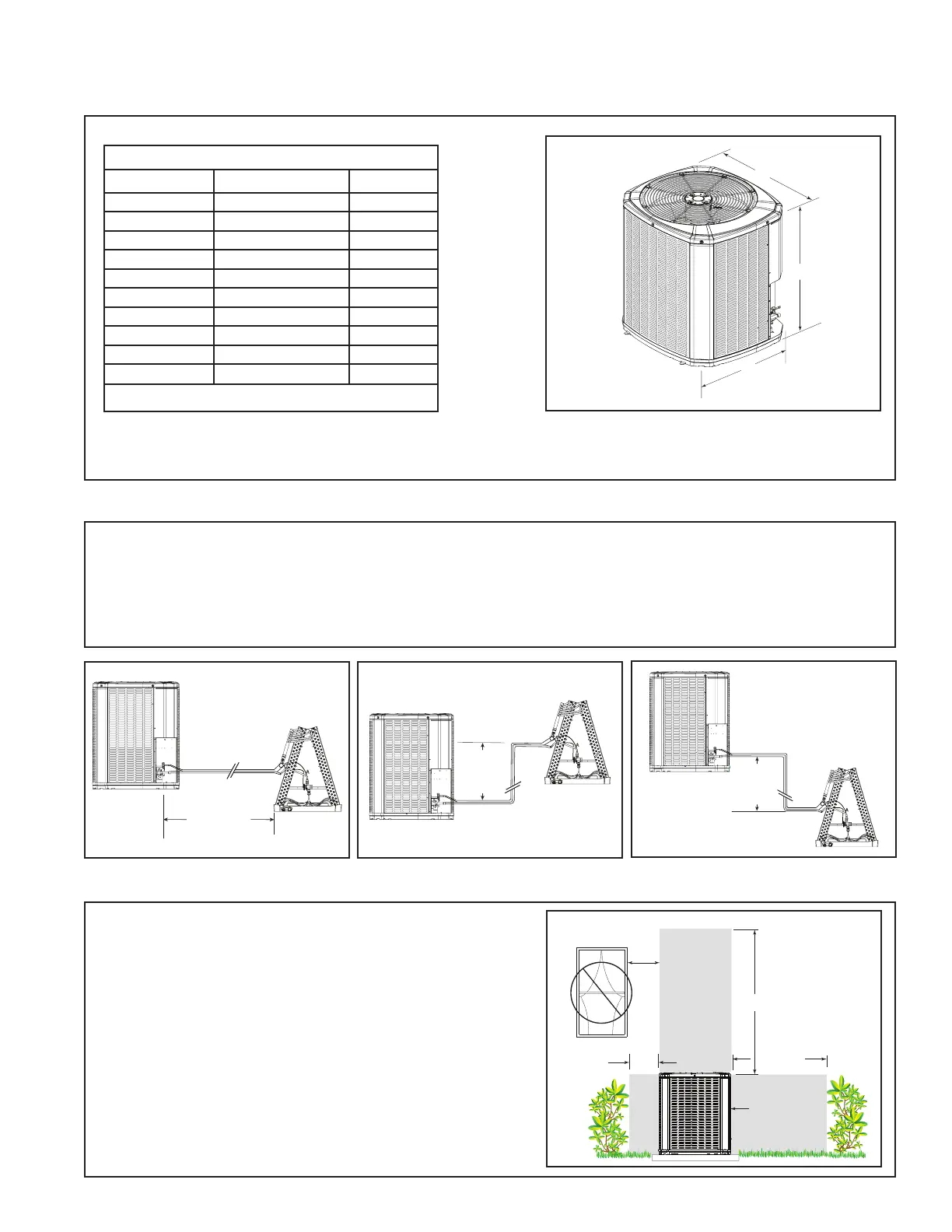

Section 2. Unit Location Considerations
2.1 Unit Dimensions and Weight
When mounting the outdoor unit on a roof, be sure the roof will support the unit’s weight.
Properly selected isolation is recommended to alleviate sound or vibration transmission to the building structure.
D
H
W
Unit Dimensions and Weight
Models H x D x W (in) Weight* (lb)
4TTR4018N 29 x 26 x 29 133
4TTR4019N 29 x 30 x 33 161
4TTR4024N 29 x 26 x 29 133
4TTR4025N 29 x 30 x 33 162
4TTR4030N 33 x 30 x 33 156
4TTR4036N 33 x 30 x 33 156
4TTR4042N 37 x 34 x 37 212
4TTR4048N 29 x 34 x 37 189
4TTR4049N 45 x 34 x 37 256
4TTR4060N 45 x 34 x 37 277
* Weight values are estimated.
2.2 Refrigerant Piping Limits
1. The maximum length of refrigerant lines from outdoor to indoor unit should NOT exceed sixty (60) feet.
2. The maximum vertical change should not exceed sixty (60) feet.
3. Service valve connection diameters are shown in Table 5.1.
Note: For line lengths greater than sixty (60) feet, Refer to Refrigerant Piping Application Guide, SS-APG006F-EN,
or Refrigerant Piping Software Program.
Standard
Line Set
60’ Max
Line Length
60’
Max
Vertical
Change
60’
Max
Vertical
Change
2.3 Suggested Locations for Best Reliability
Ensure the top discharge area is unrestricted for
at least five (5) feet above the unit.
Three (3) feet clearance must be provided in
front of the control box (access panels) and any
other side requiring service.
Do not locate close to bedrooms as operational
sounds may be objectionable.
Position the outdoor unit a minimum of 12” from
any wall or surrounding shrubbery to ensure
adequate airflow.
Outdoor unit location must be far enough away
from any structure to prevent excess roof runoff
water from pouring directly on the unit.
Min. 12” to
Shrubber
y
Avoid Install
Near Bedrooms
Min 5’ Unrestricted
Access Panel
Min 3’
Unrestricted
