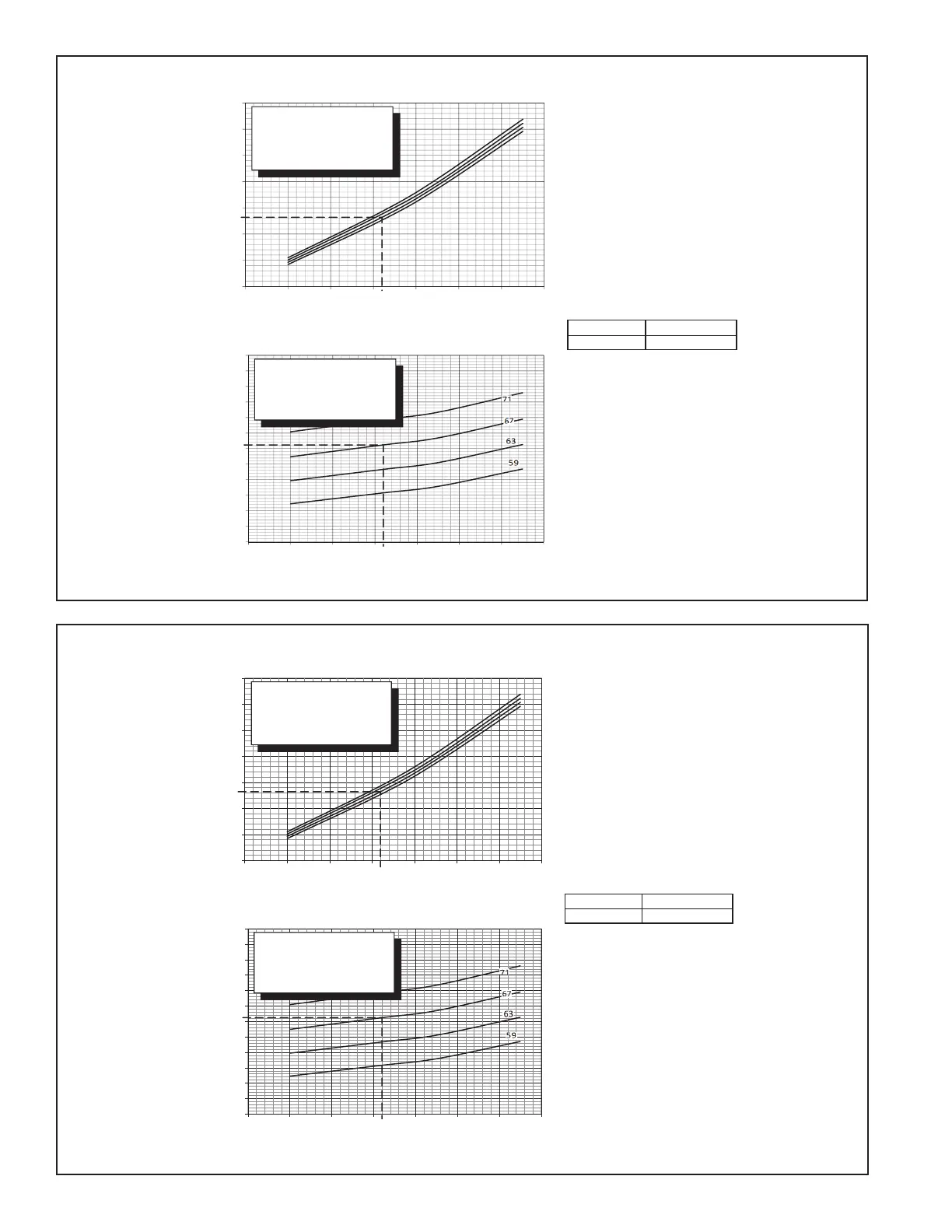

PRESSURE CURVES for 5TWR5024A1
LIQUID PRESSURE (PSIG)
OUTDOOR TEMPERATURE (Degree F)
OD Model Cooling @SCFM
5TWR5024A1 750
SUCTION PRESSURE (PSIG)
OUTDOOR TEMPERATURE (Degree F)
110
115
120
125
130
135
140
145
150
155
160
165
170
50 60 70 80 90 100 110 120
(1)
170
220
270
320
370
420
470
520
50 60 70 80 90 100 110 120
(1)
(3)
(3)
(5)
(4)
(2)
(2)
INDOOR ENTERING
WET BULB CURVES
TOP TO BOTTOM
71, 67, 63 AND 59 DEG F.
INDOOR ENTERING
WET BULB CURVES
TOP TO BOTTOM
71, 67, 63 AND 59 DEG F.
PRESSURE CURVES for 5TWR5030A1
LIQUID PRESSURE (PSIG)
OUTDOOR TEMPERATURE (Degree F) OD Model Cooling @SCFM
5TWR5030A1 1000
SUCTION PRESSURE (PSIG)
OUTDOOR TEMPERATURE (Degree F)
110
115
120
125
130
135
140
145
150
155
160
165
170
50 60 70 80 90 100 110 120
(1)
170
220
270
320
370
420
470
520
50 60 70 80 90 100 110 120
(1)
(3)
(3)
(5)
(4)
(2)
(2)
INDOOR ENTERING
WET BULB CURVES
TOP TO BOTTOM
71, 67, 63 AND 59 DEG F.
INDOOR ENTERING
WET BULB CURVES
TOP TO BOTTOM
71, 67, 63 AND 59 DEG F.
