Trane 80 - Single Stage Heating;Cooling Wiring; 2 Stage Heating Single Stage Cooling Wiring

13Pub. No. 22-1682-05-0802 (EN)
Field
Wiring

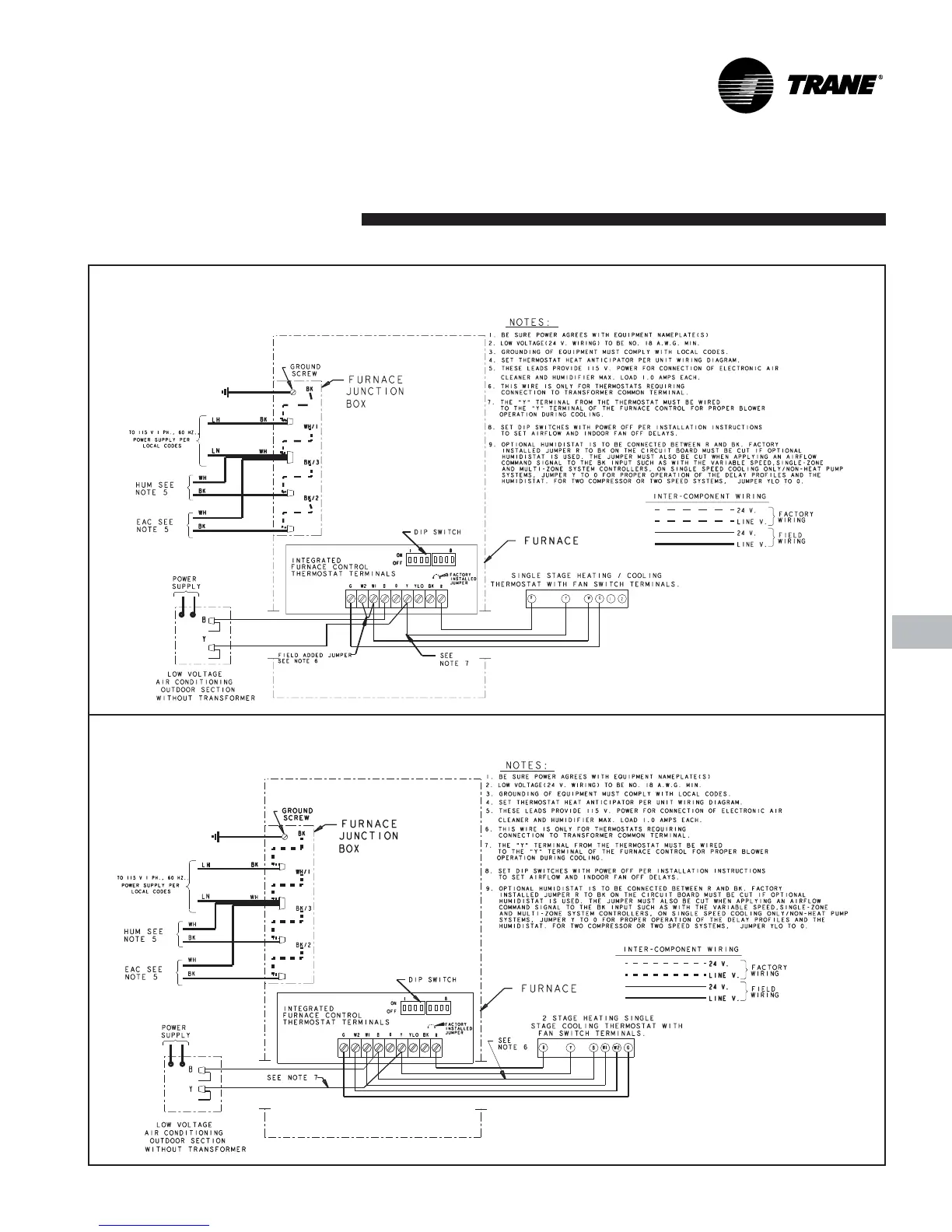

FIELD WIRING DIAGRAM FOR SINGLE STAGE HEATING/COOLING
(OUTDOOR SECTION WITHOUT TRANSFORMER)
From Dwg. 21B341125 Rev. 1
From Dwg. 21B341124 Rev. 1
FIELD WIRING DIAGRAM FOR 2 STAGE HEATING SINGLE STAGE COOLING
(OUTDOOR SECTION WITHOUT TRANSFORMER)
