Trane 80 - Field Wiring (Continued); 2 Stage Heating Two Stage Cooling Wiring

14 Pub. No. 22-1682-05-0802 (EN)
Field
Wiring

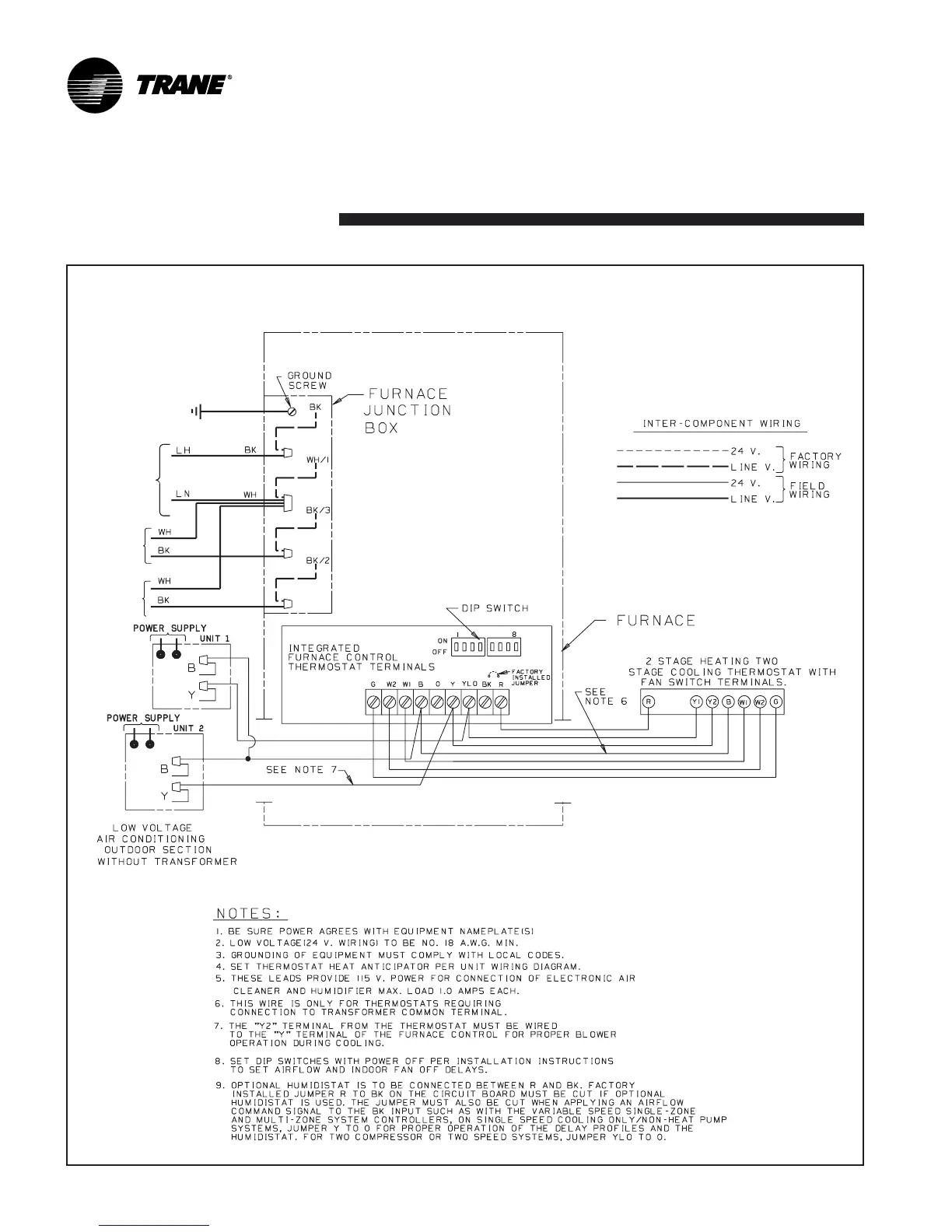

FIELD WIRING DIAGRAM FOR 2 STAGE HEATING TWO STAGE COOLING
(OUTDOOR SECTION WITHOUT TRANSFORMER)
From Dwg. 21B341128 Rev. 0
TO 115 V 1 PH.,
60 HZ., POWER
SUPPLY PER
LOCAL CODES
HUM SEE
NOTE 5
EAC SEE
NOTE 5
