Trane A4AH4 Series - Electrical Data

10
18-GF16D1-1B-EN

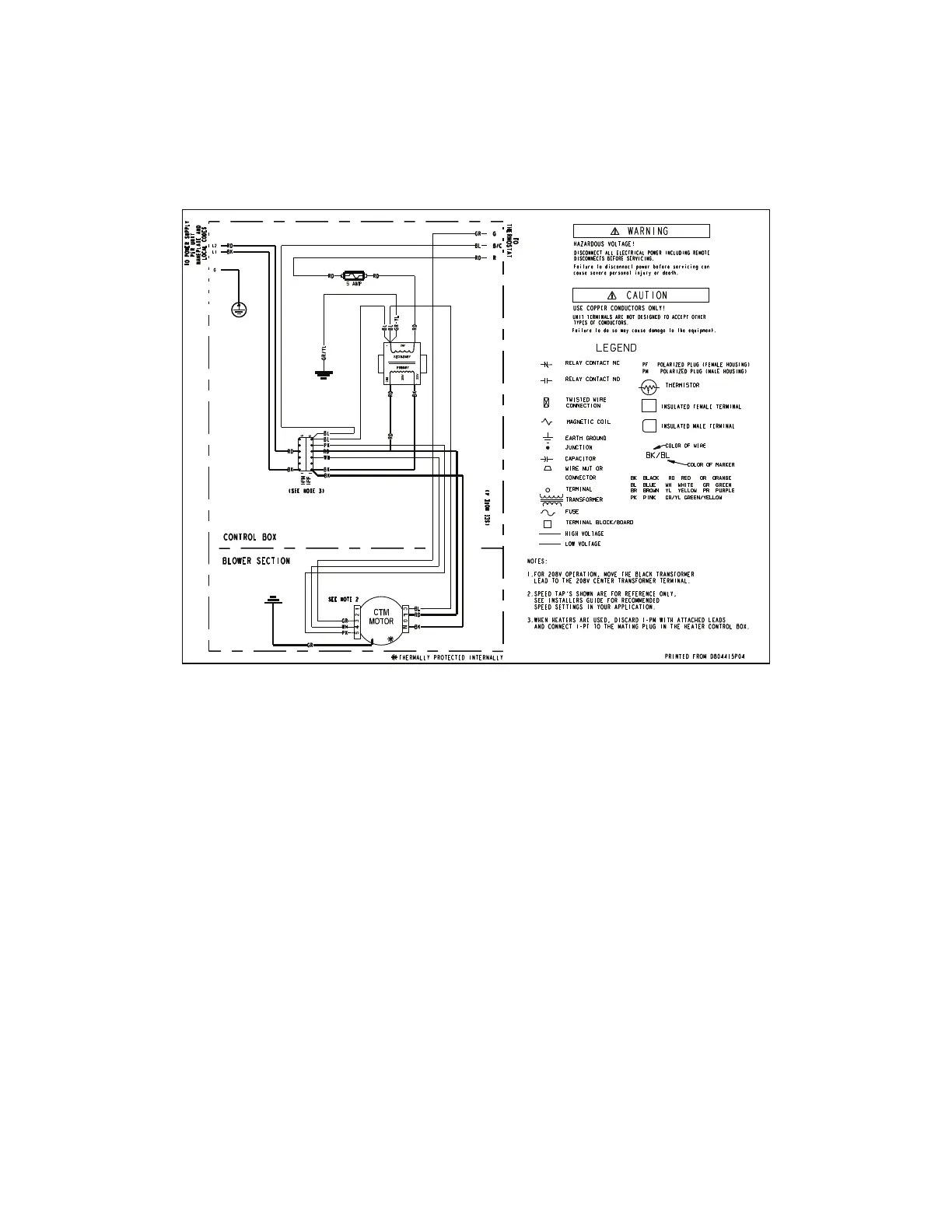

Performance and Electrical Data
Table 3. Air Flow Performance Tables
A4AH4E24A1B60A
EXTERNAL STATIC
(in w.g)
AIRFLOW
Speed Taps: 208 – 230 VOLTS
High Med-High
Med † Low
0.1 1140 1078 930 851
0.2 1087 1017 870 796
0.3 1034 955 807 733
0.4 978 894 741 663
0.5 922 834 671 584
0.6 863 774 597 497
0.7 804 715 519 403
• Low = Taps 1–2, Med = Tap 3, Med-High= Tap 4, High = Tap 5
A4AH4E30A1B30A
EXTERNAL STATIC
(in w.g)
AIRFLOW
Speed Taps: 208 – 230 VOLTS
High Med-High
Med † Med-Low Low
0.1 1192 1126 1070 995 940
0.2 1148 1079 1021 943 885
0.3 1103 1031 971 890 828
0.4 1057 980 919 834 767
0.5 1009 929 865 775 702
0.6 961 875 810 714 635
0.7 911 820 753 651 564
• Low = Tap 1, Med-Low = Tap 2, Med = Tap 3, Med-High= Tap 4, High = Tap 5
A4AH4E36A1C30A, A4AH4E42B1C30A
EXTERNAL STATIC
(in w.g)
AIRFLOW
Speed Taps: 208 – 230 VOLTS
High Med-High
Med † Med-Low Low
0.1 1492 1418 1302 1268 1140
0.2 1460 1385 1266 1230 1096
0.3 1426 1349 1228 1190 1050
0.4 1390 1311 1187 1147 1002
0.5 1352 1271 1144 1101 952
0.6 1311 1229 1099 1053 899
0.7 1269 1184 1051 1003 845
• In downflow applications, airflow must not exceed 1600 cfm due to condensate blowoff.
• Low = Tap 1, Med-Low = Tap 2, Med = Tap 3, Med-High= Tap 4, High = Tap 5
