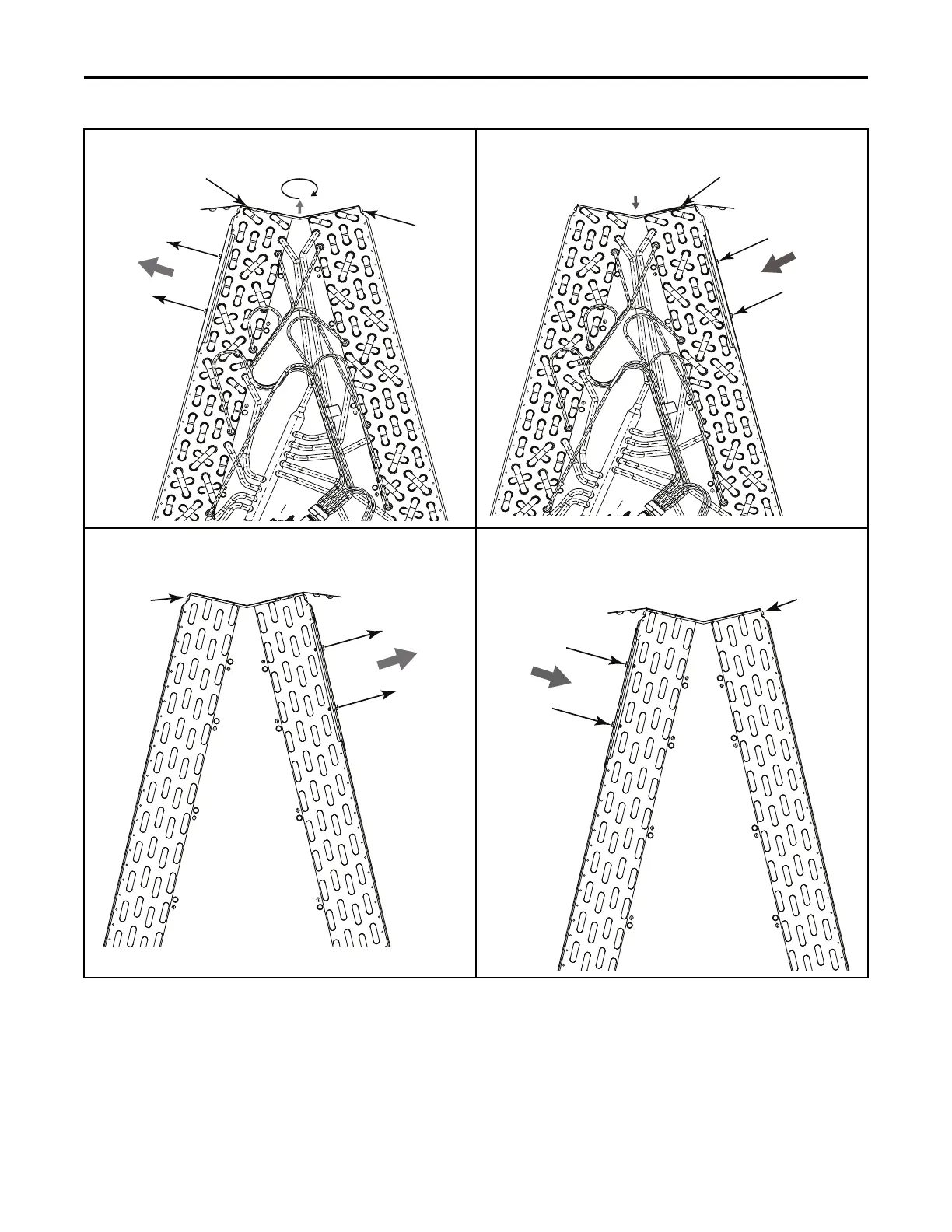

Figure 32. A4AH6E49, A4AH6E61, A4AH6V48, A4AH6V60 — Front view
Remove 2 screws
and water diverter
bracket
Snap Tab
Feature
180°
Top Baffle Assembly
Figure 33. A4AH6E49, A4AH6E61, A4AH6V48, A4AH6V60 — Front view
Replace 2 screws
and water diverter
bracket
Top Baffle Assembly
Figure 34. A4AH6E49, A4AH6E61, A4AH6V48, A4AH6V60 — Rear view
Remove 2 screws
and water diverter
bracket
Snap Tab
Feature
Figure 35. A4AH6E49, A4AH6E61, A4AH6V48, A4AH6V60 — Rear view
Replace 2 screws
and water diverter
bracket
Snap Tab
Feature
CCooiill CCoonnvveerrssiioonn IInnssttrruuccttiioonnss
