Trane A4AH6E19A1B30B User Manual

18-GF14D1-1C-EN
31

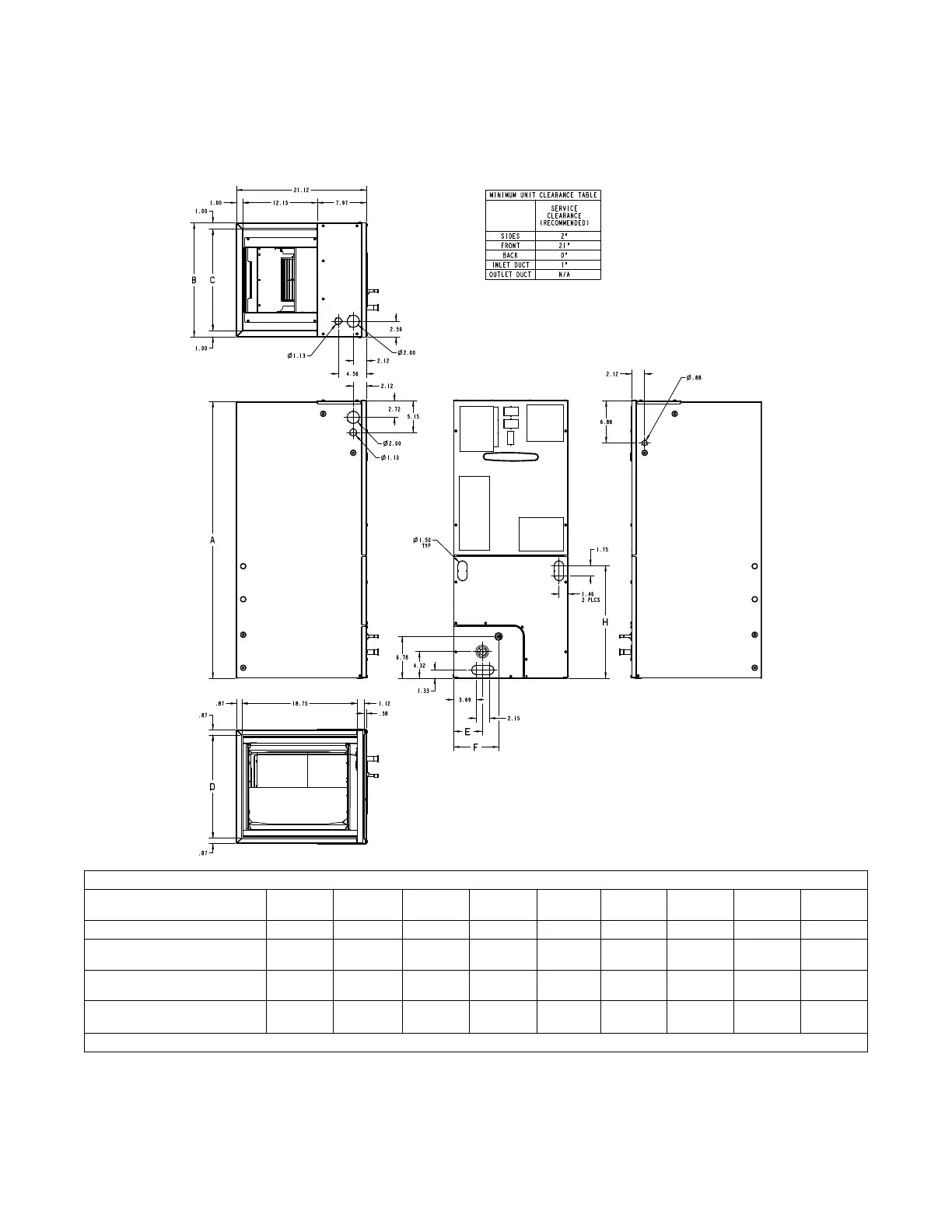

Outline Drawing
NOTE: THIS UNIT IS APPROVED FOR INSTALLATION
CLEARANCES TO COMBUSTIBLE MATERIAL AS
STATED ON THE UNIT RATING NAMEPLATE
NOTE: ALL DIMENSIONS ARE REFERENCE DIMENSIONS
PRODUCT DIMENSIONS
Air Handler Model A B C D E F H
Flow
Control
Gas Line
Braze
A4AH6E19 45.02 18.50 16.50 16.75 4.68 7.33 18.34 TXV
3/4
A4AH6E31, A4AH6V24,
A4AH6V30
46.77 18.50 16.50 16.75 4.68 7.33 20.09 TXV
3/4
A4AH6E43, A4AH6V36,
A4AH6V42
51.27 23.50 21.50 21.75 7.01 9.66 24.59 TXV
7/8
A4AH6E49, A4AH6E61,
A4AH6V48A1C, A4AH6V60B1C
57.40 23.50 21.50 21.75 4.68 9.66 27.19 TXV
7/8
All dimensions are in inches

Trane A4AH6E19A1B30B Specifications

General

Brand	Trane
Model	A4AH6E19A1B30B
Category	Air Handlers
Language	English
