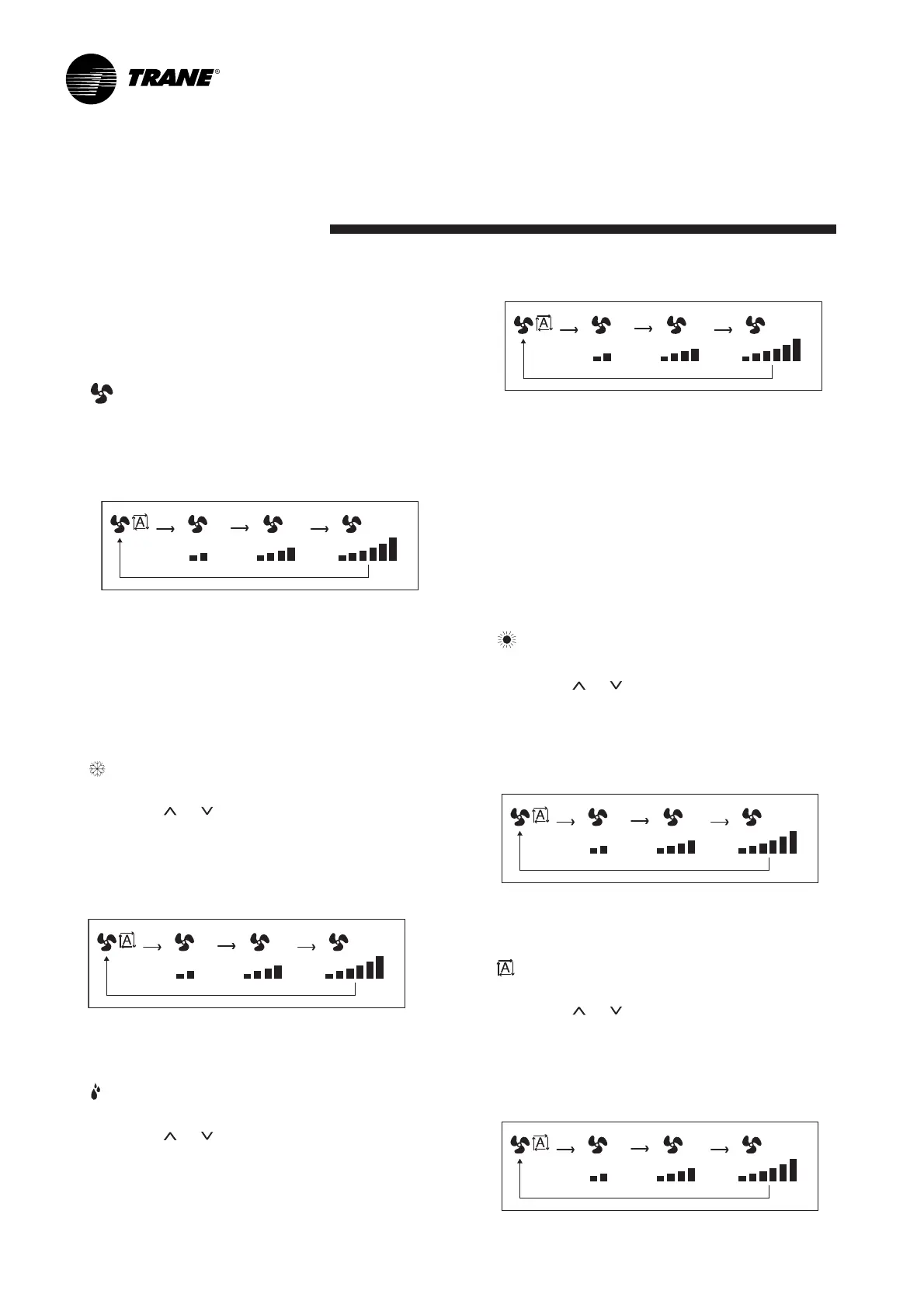

Operation Mode
FAN Mode
- Press MODE button to select the operation mode.
- will be shown on the display when FAN mode is
selected.
- Press FAN SPEED button to select the desired fan speed
level and the display will show Auto, Low, Medium, and
High respectively.
Note:
• In DRY mode, if the compressor/valve stops working, fan
motor and SWEEP function will be stopped; fan motor
and SWEEP function will operate when compressor/
valve operates.
• ECONO mode can not be activated during DRY mode
operation.
HEAT Mode
- Press MODE button to select the operation mode.
- will be shown on the display when HEAT mode is
selected.
-
Press either or button to set the desired temperature
between 15
O
C to 30
O
C.
- Press FAN SPEED button to select the desired fan speed
level and the display will show Auto, Low, Medium, and
High respectively.
Display Unit and Receiver Board
LCD Wired Control
Note:
• In FAN mode, the LCD display will not show set
temperature and can not adjust set temperature,
SLEEP, ECONO, and TURBO mode.
COOL Mode
- Press MODE button to select the operation mode.
- will be shown on the display when COOL mode is
selected.
- Press either or button to set the desired temperature
between 15
O
C to 30
O
C.
- Press FAN SPEED button to select the desired fan
speed level and the display will show Auto, Low,
Medium, and High respectively.
Auto --> Low --> Medium --> High
Auto --> Low --> Medium --> High
DRY Mode
- Press MODE button to select the operation mode.
- will be shown on the display when DRY mode is
selected.
-
Press either or button to set the desired temperature
between 15
O
C to 30
O
C.
- Press FAN SPEED button to select the desired fan speed
level and the display will show Auto, Low, Medium, and
High respectively.
Auto --> Low --> Medium --> High
Auto --> Low --> Medium --> High
AUTO Mode
- Press MODE button to select the operation mode.
- will be shown on the display when AUTO mode is
selected.
- Press either or button to set the desired temperature
between 15
O
C to 30
O
C.
- Press FAN SPEED button to select the desired fan speed
level and the display will show Auto, Low, Medium, and
High respectively.
Auto --> Low --> Medium --> High
