TAM718

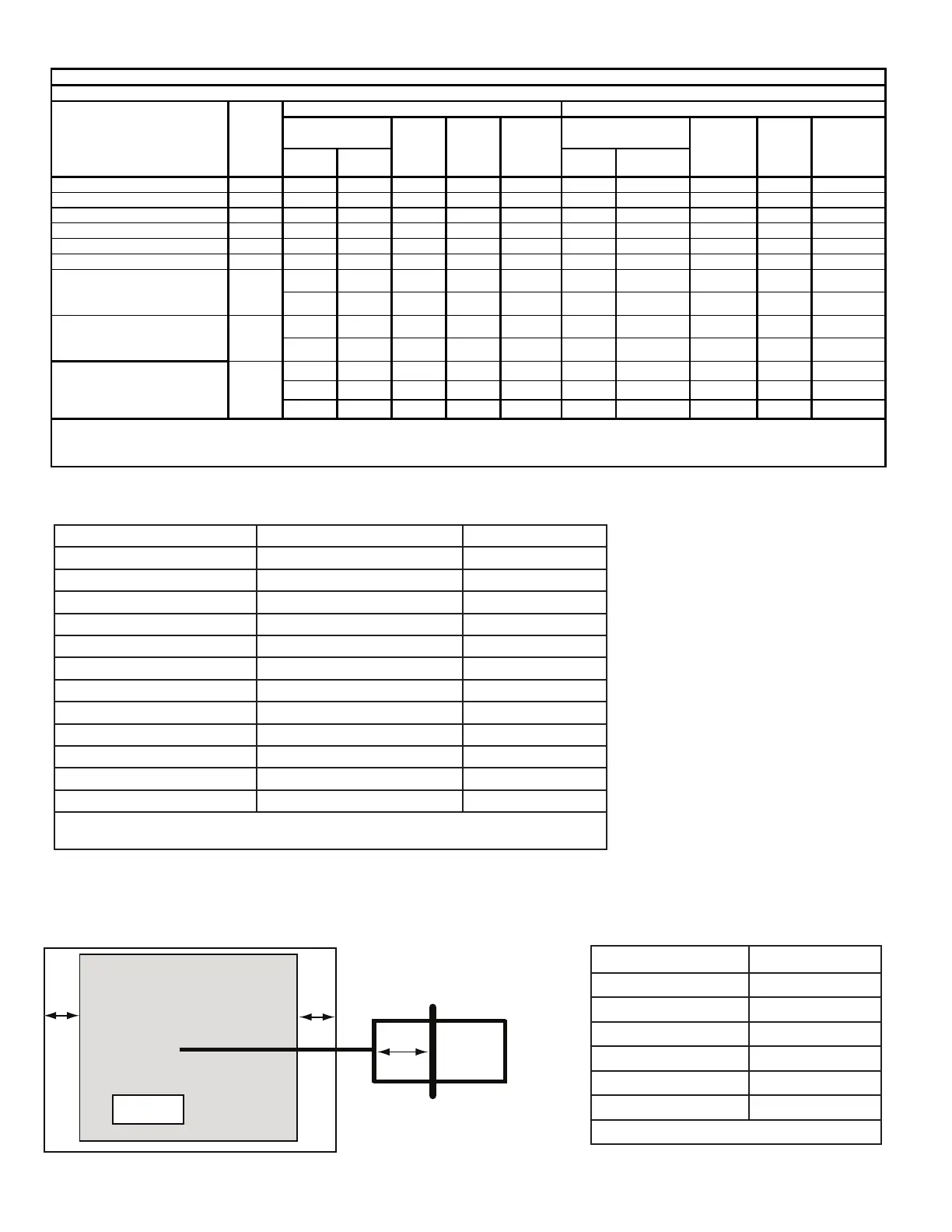

DISTANCE FROM BELLY BAND TO SHAFT FACE OF MOTOR FOR MINIMUM VIBRATION
WHEEL
BLOWER HOUSING
BELLY BAND
MOTOR
A
A is determined per chart
Wheel is centered in
Blower Housing
MODEL DIM "A"
*AM7A0A24H21SA 2-3/8
*AM7A0B30H21SA 2-3/8
*AM7A0C36H31SA 2-3/8
*AM7A0C42H31SA 2-3/8
*AM7A0C48H41SA 2-3/8
*AM7A0C60H51SA 2-3/8
* May be "A" or" T"
SUBCOOLING ADJUSTMENT
Indoor Unit Model No. Outdoor Unit Model No. Subcooling
*AM7A0B30H21SA 4A6H6024E, 4TWX6024E 9°
*AM7A0C36H31SA 4A6H6036E, 4TWX6036E 10°
*AM7A0C48H41SA 4A6H6048E, 4TWX6048E 8°
*AM7A0B30H21SA 4A7A6024E, 4TTX6024E 8°
*AM7A0C36H31SA 4A7A6036E, 4TTX6036E 8°
*AM7A0C48H41SA 4A7A6048E, 4TTX6048E 8°
*AM7A0B30H21SA 4TWZ0024A, 4A6Z0024A 9°
*AM7A0C36H31SA 4TWZ0036A, 4A6Z0036A 10°
*AM7A0C48H41SA 4TWZ0048A, 4A6Z0048A 12°
*AM7A0B30H21SA 4TTZ0024A, 4A7Z0024A 9°
*AM7A0C36H31SA 4TTZ0036A, 4A7Z0036A 11°
*AM7A0C48H41SA 4TTZ0048A, 4A7Z0048A 13°
* May be “A” or “T”
All other matches must be charged per the nameplate charging instructions.
kW BTUH kW BTUH
No Heater 0 - - 5.5** 7 15 - - 5.5** 7 15
BAYEVAC05++1 1 4.80 16400 20.0 30 30 3.60 12300 17.3 27 30
BAYEVAC08++1 1 7.68 26200 32.0 45 45 5.76 19700 27.7 40 40
BAYEVAC10++1 1 9.60 32800 40.0 55 60 7.20 24600 34.6 49 50
BAYEVAC10LG3 1-3 PH 9.60 32800 23.1 34 35 7.20 24600 20.0 30 30
BAYEVBC15LG3 1-3 PH 14.40 42000 34.6 48 50 10.80 36900 30.0 42 45
9.60 32800 40.0 55 60 7.20 24600 34.6 49 50
4.80 16400 20.0 25 25 3.60 12300 17.3 22 25
9.60 32800 40.0 55 60 7.20 24600 34.6 49 50
9.60 32800 40.0 50 50 7.20 24600 34.6 43 45
9.60 32800 40.0 55 60 7.20 24600 34.6 49 50
9.60 32800 40.0 50 50 7.20 24600 34.6 43 45
4.80 16400 20.0 25 25 3.60 12300 17.3 22 25
BAYEVCC25BK1 - Circuit 1 1
BAYEVCC25BK1 - Circuit 2
BAYEVCC25BK1 - Circuit 3
Note: * May be "A" or "T"
Note: ** Motor Amps
1 MCA and MOP for circuit 1 contains the motor amps
Minimum
Circuit
Ampacity
Maximum
Overload
Protection
BAYEVBC15BK1 - Circuit 1 1
BAYEVBC15BK1 - Circuit 2
BAYEVBC20BK1 - Circuit 1 1
BAYEVBC20BK1 - Circuit 2
Heater Model No.
No. of
Circuits
240 Volt 208 Volt
Capacity Heater
Amps per
Circuit
Heater Attribute Data
*AM7A0C60H51SA
Capacity Heater
A
mps per
Circuit
Minimum
Circuit
Ampacity
Maximum
Overload
Protection
2
3
2
