Installer’s Guide
3a. 2/4WC** Units
230 Volt 2/4WC** with Compressor Start Kit &
460 Volt 2/4WC*3060A4 & 460 Volt 4WCZ6 units
1. Remove the Control Module from the Universal Bracket
(remove 2 machine screws).
2. Mount the Control Module to the Compressor Start Kit
bracket using the two (2) machine screws. See Figure 3.
3. Continue with step 4. Mounting the Liquid Line Sensor,
page 7.

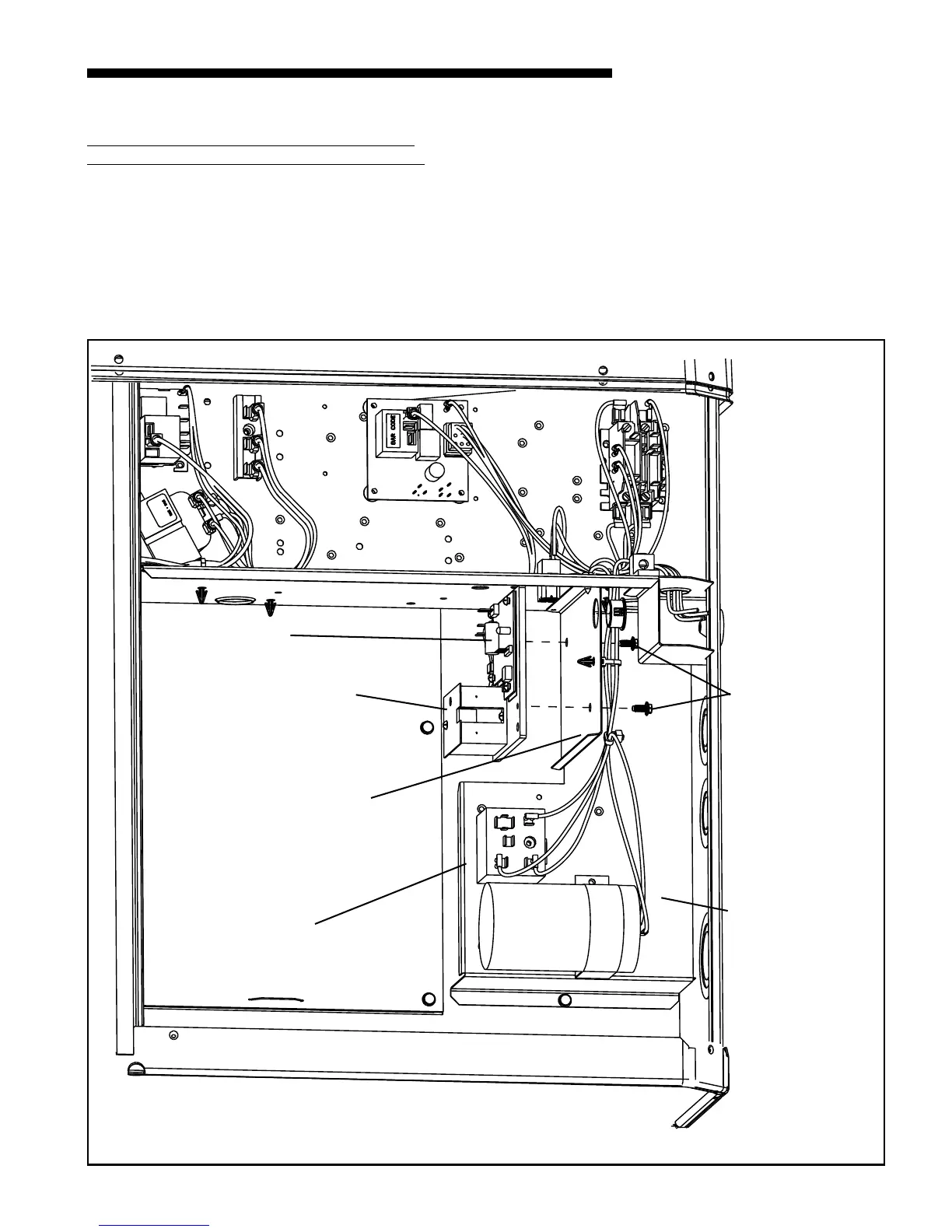

Figure 3. 230 Volt 2/4WC** with Compressor Start Kit & 460 Volt 2/4WC*3060A4 & 460 Volt 4WCZ6 units
Start Kit
Bracket
Mount Control
Module
to Start Kit Bracket
Using Two Machine
Screws.
Compressor
Start Kit
Control Module
SSR
460v Transformer is
mounted in place of
Start Kit for 460 volt
2/4WC*3060A4 &
4WCZ6 units
