CG-PRC026C-GB
45
Typical Unit Schematics

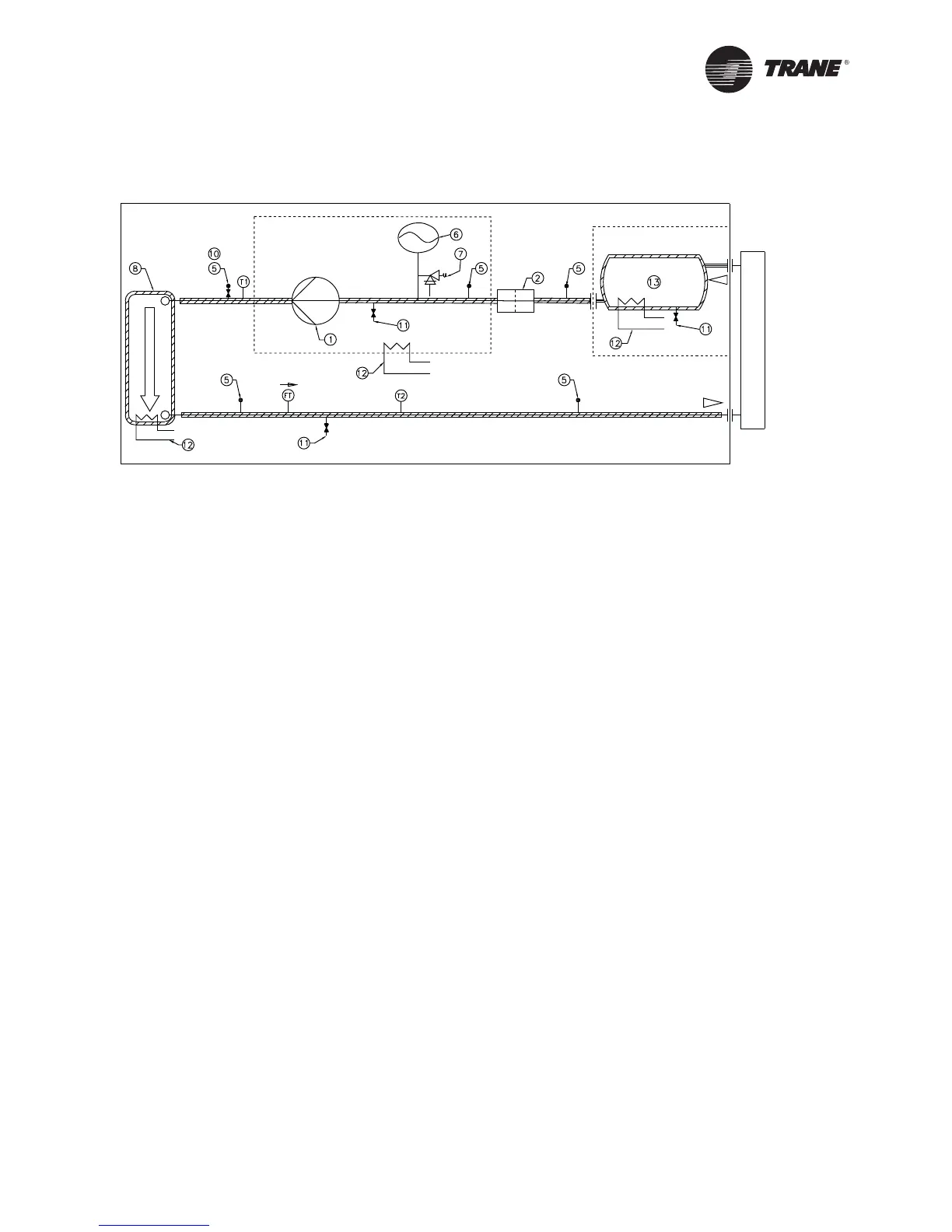

Figure 10 - Hydraulic Module water chart
1 - Single or Dual Pump
2 - Water Strainer
5 - Valve for pressure point
6 - Expansion tank
7 - Water pressure point
8 - Brazed Plate Heat Exchanger
10 - Manual air bleed
11 - Drain valve
12 - Optional Freeze protection
13 - Optional buffer tank
FT - Water fl ow switch
T1 - Water inlet temperature sensor
T2 - Water outlet temperature sensor
CHILLED
WATER
