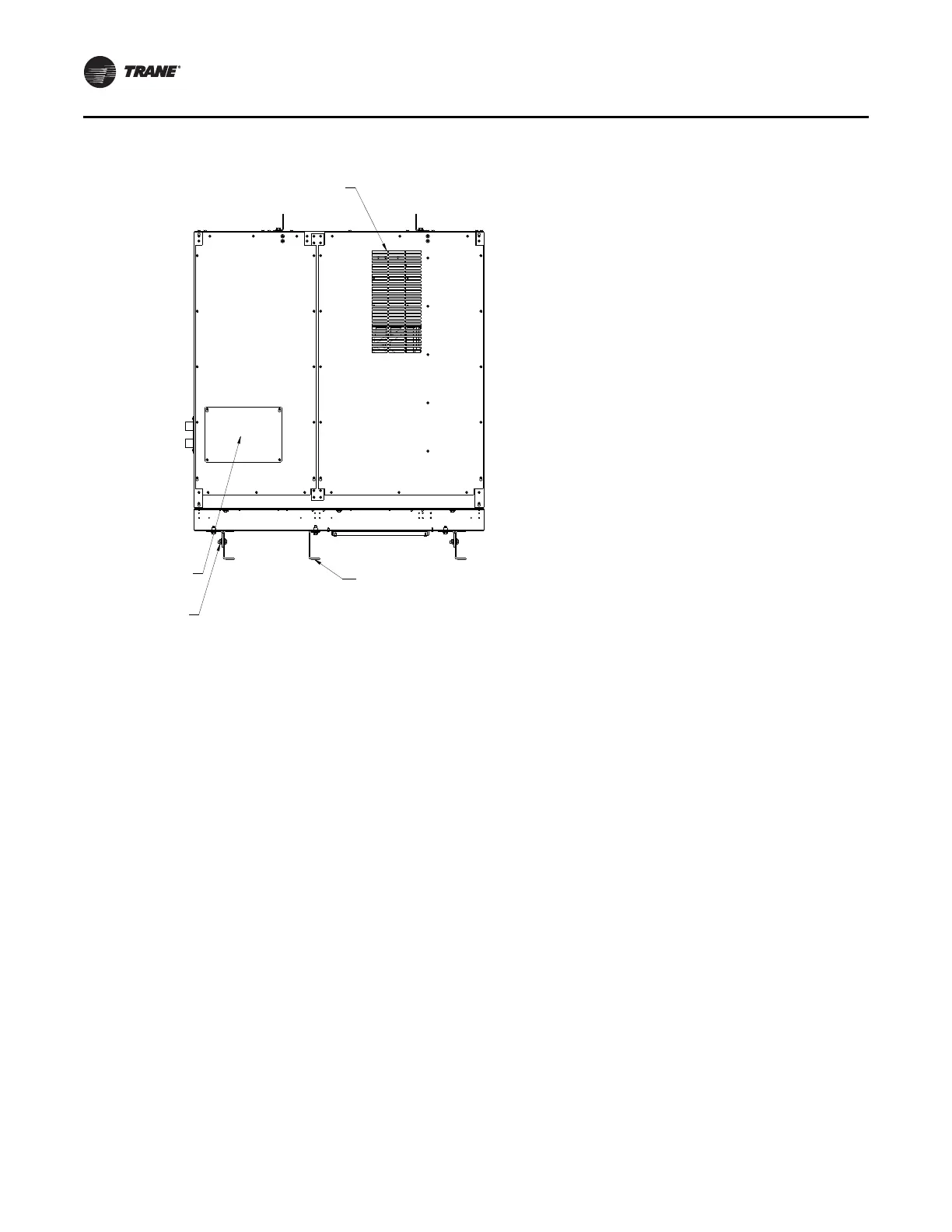

Figure 8. Drive cabinet dimensions: Frame 3 (dimensions shown in inches [mm])
(a)
Drive and Cabinet
18 AFDK-SVU01C-EN
(a)Material courtesy of Rockwell.
71.500
.375 WIDE X 3.250 LONG VENTS
DRIVE TUBE CONNECTION
ACCESS PLATE
FLOOR MOUNTING KIT (3 PLACES)
SITE INSTALLED
SHIPPED INSIDE CABINET
(CUSTOMER SUPPLIED)
(6) 1/2-13 X 1.500 BOLT
(10) 1/2 FLAT WASHERS
(6) 1/2 LOCK WASHER
(4) 1/2-13 NUT
WALL
CLEARANCE
Back View
