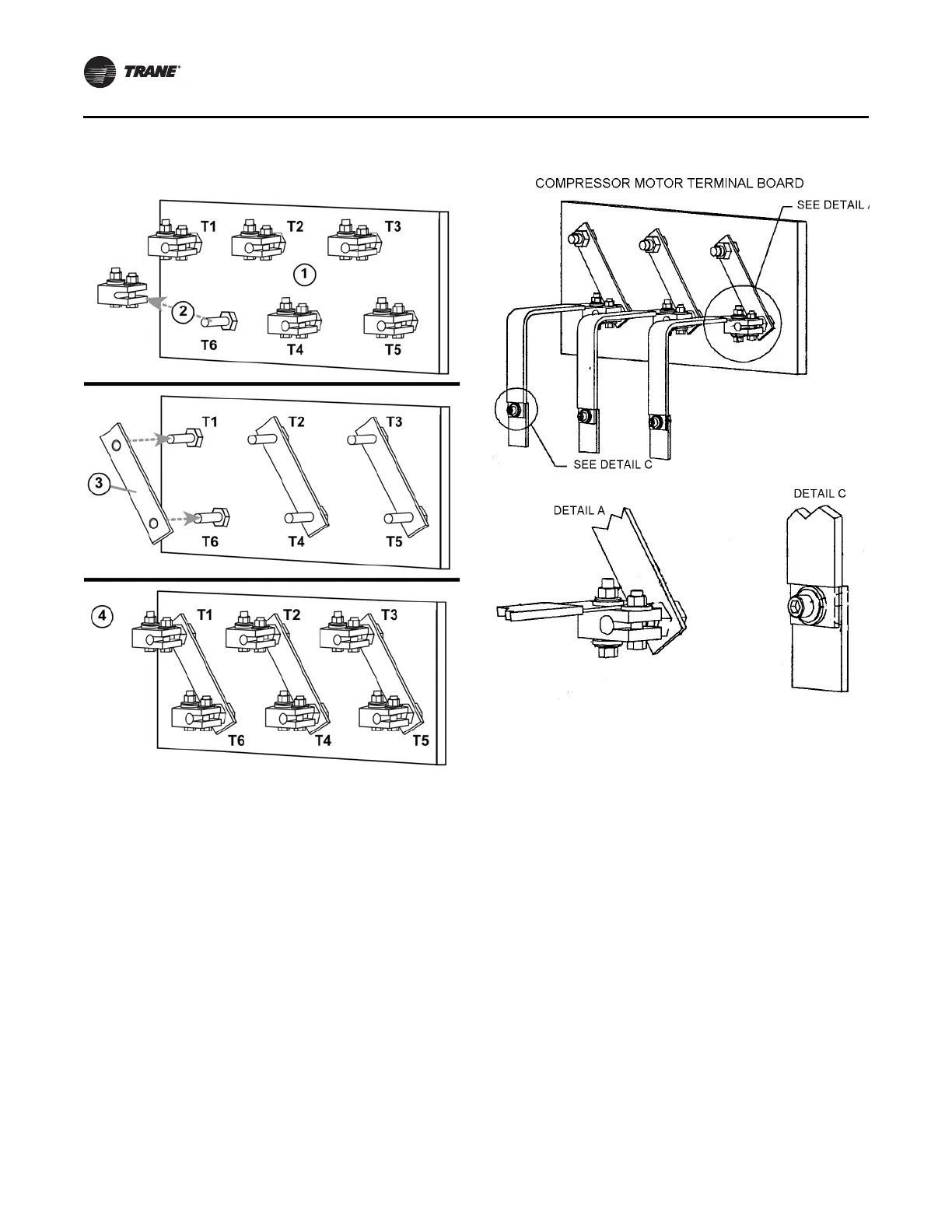

Figure 17. Busbar installation on compressor motor
terminal board
1. Compressor motor terminal board
2. Remove motor terminal lugs (from all 6 terminals).
3. Install shorting busbars across the motor terminal
pairs as shown.
4. Motor terminal lugs reinstalled
Input Power and Control Wiring
36 AFDK-SVU01C-EN
Installing Unit-Mounted Output
Conductors
Unit-mounted drives are connected to the motor by
Flexibar conductors.
1. Verify shorting bus bars are installed on motor
terminals
as described in “Insta
lling Shorting
Busbars,” p. 35.
2. Verify Flexibar conductors are routed through the
provided ma
gnetic choke.
3. The Flexibar connections to the motor terminals
sh
ould be t
orqued to 27ft·lb (36.6N·m); refer to
Figure 18, p. 36 and Figure 19, p. 37 for configuration.
Figure 18. Motor connection assembly
