Trane CLCH - Drain Pan

11
4. Assembly and
Installation
4.4 Condensate Drain From
Drain Pan
Correctly-sized traps must be fitted
immediately after the drip pan outlet (see
Figures 12, 13 and 14).
An “air break,” by means of a tun dish,
must be fitted immediately after the trap.

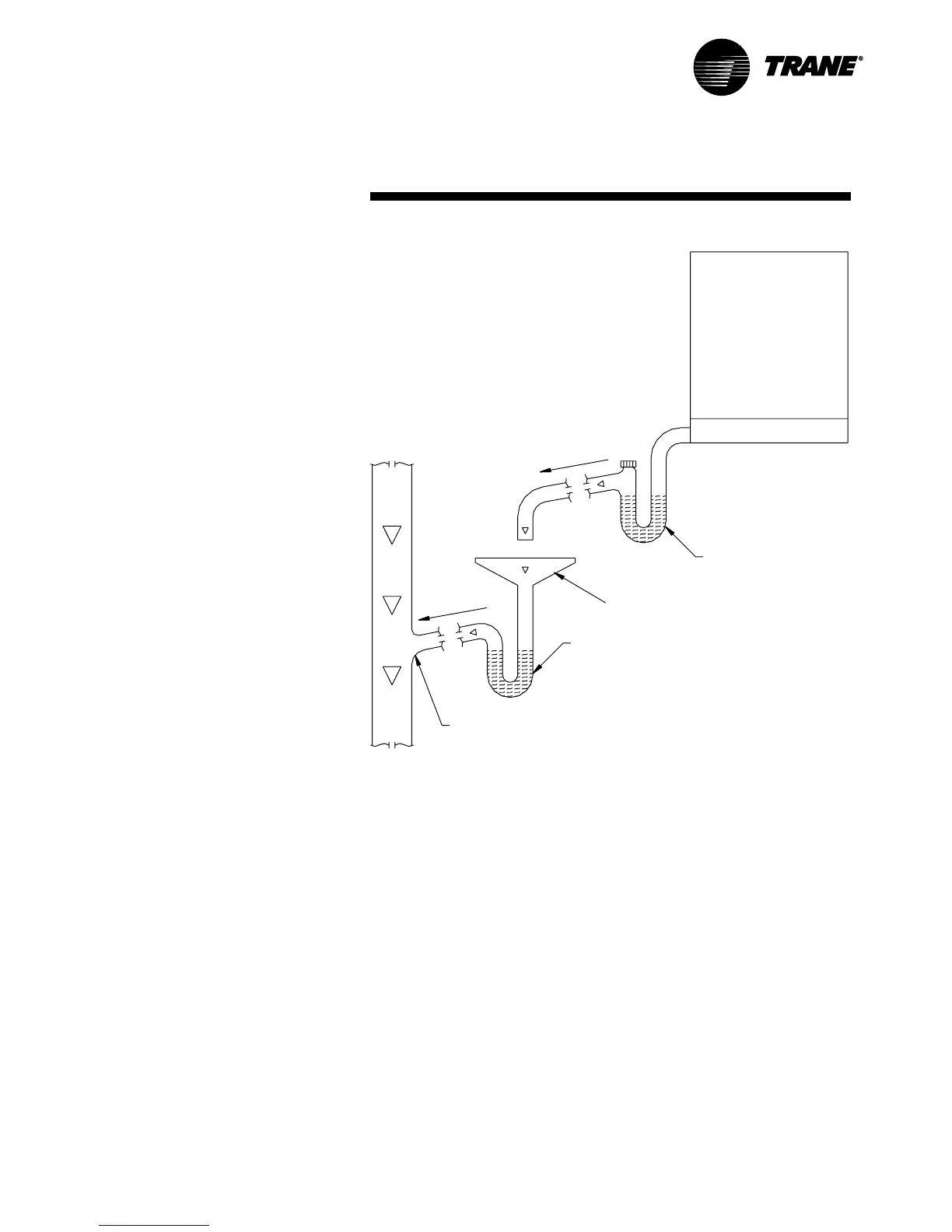

Figure 12 – Typical Air Conditioning Plant Drain
Figure 12 Notes:
1. Cooling coil, humidifier, or chilled battery.
2. Vented drainage stack
3. Fall
4. Air break
5. Swept connection
6. Trap with water seal (with filling cap)
7. Open tun dish or floor gully/channel
8. Trap with water seal
1
2
3
4
3
5
8
7
6
CLCH-SVX05A-GB
