Unit Components
NNoottee:: The control panel side of the unit is always
designated as the front side of the unit.

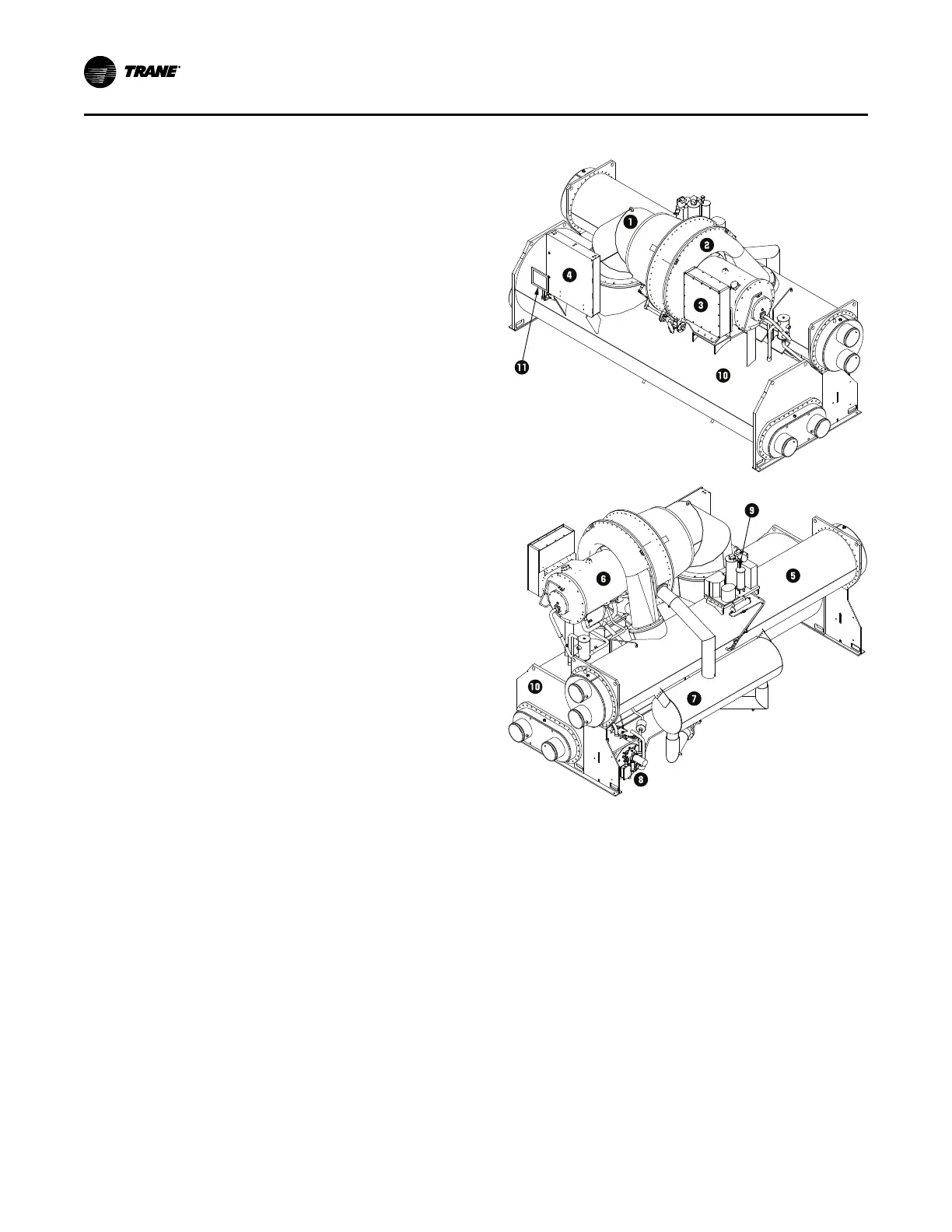

Figure 3. Typical CVHF CenTraVac™™ chiller
1. Suction Elbow
2. Compressor
3. Terminal Box
4. Control Panel
5. Condenser
6. Motor Housing
7. Economizer
8. Oil Tank Assembly
9. Purge
10. Evaporator
11. Display Panel
