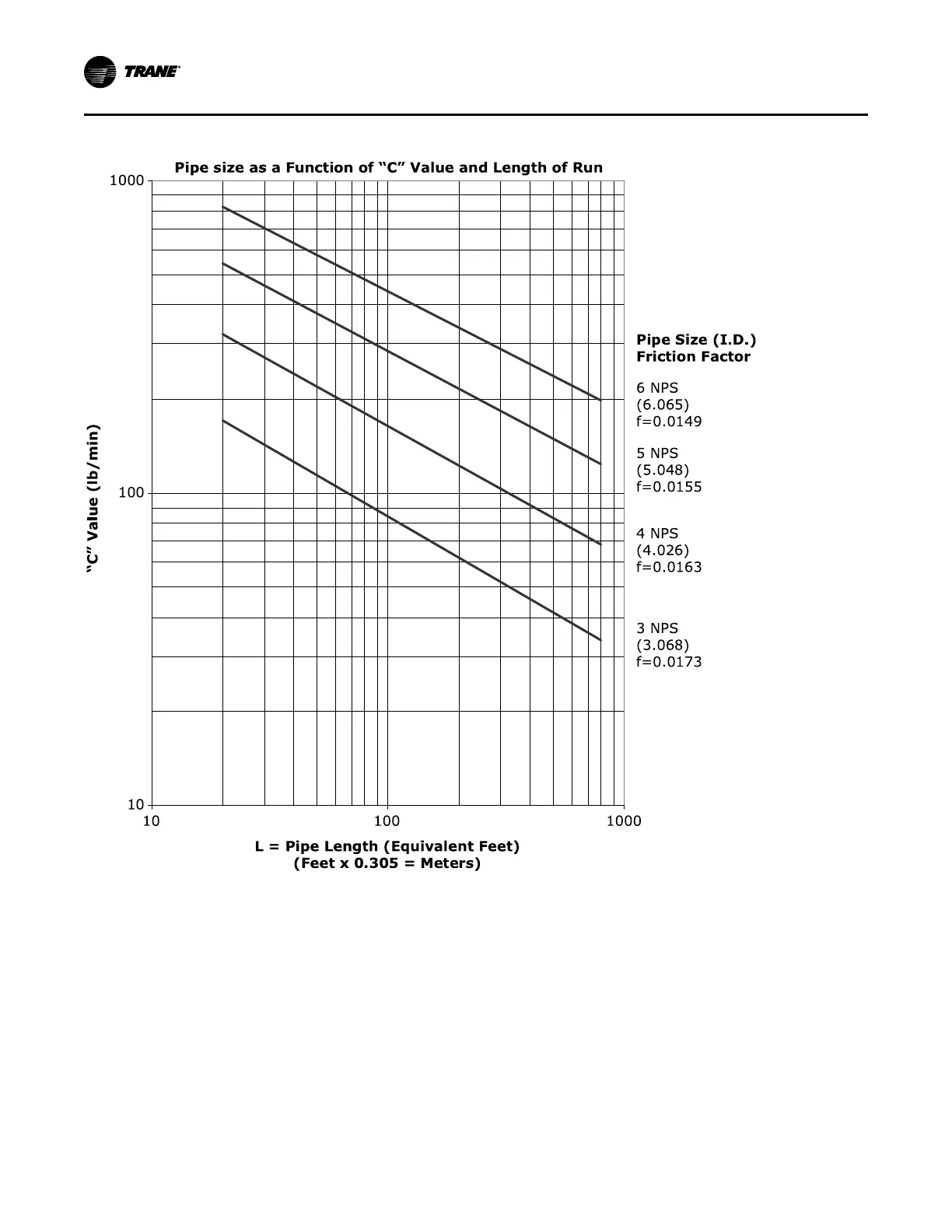

Figure 27. Rupture disk vent pipe sizing; for use with the preceding table
NNoottee:: The preceding figure, provided as a reference, is based on ASHRAE Standard 15. Vent line size is typically
dictated by state or local code which may be different from ASHRAE Standard 15 requirements.
VVeenntt PPiippiinngg
