Figure 35. Display attachments to the support arm
base plate
Adjusting the Tracer AdaptiView
Display Arm
The Tracer® AdaptiView™ display arm may become
too loose or too tight and may need adjustment. There
are three joints on the display arm that allow the
display to be positioned at a variety of heights and
angles (refer to items labeled 11, 22, and 33 in the
following figure).

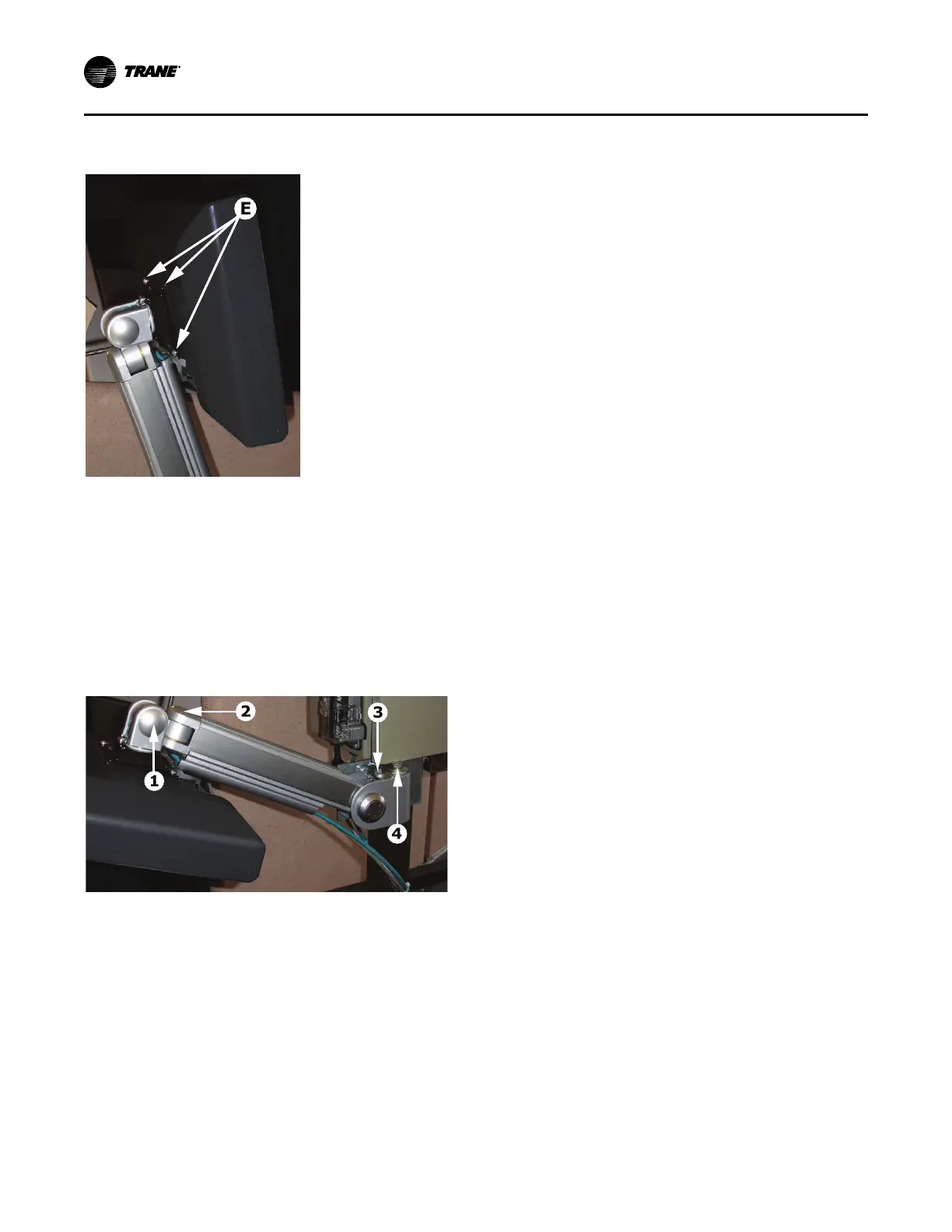

Figure 36. Joint locations on the display arm
To adjust the tension on the display arm:
• At each joint in the display arm, there is either a hex
bolt (11 and 22) or hex screw (33). Turn the hex bolt or
screw in the proper direction to increase or
decrease tension.
NNoottee:: Each hex bolt or screw is labeled with
lloooosseenn/ttiigghhtteenn or ++/-- indicators.
• Joint 33 has a 6 mm hex screw controlling the
tension on a gas spring, which allows the Tracer®
AdaptiView™ display to tilt up and down.
• Joints 11 and 22 are covered by a plastic cap. Remove
the plastic cap to access the hex bolt. Adjust using a
13 mm wrench as necessary.
• To adjust the swivel rotation tension of the Tracer®
AdaptiView™ display, adjust the hex bolt located in
the support arm base plate, as described in the final
step in “Installing the Tracer AdaptiView
Display,” p. 51. This adjustment must be done prior
to attaching the display to the support arm base.
Use a 14 mm wrench to adjust the tension.
• To adjust the left/right swivel of the entire display
arm, use a 13 mm wrench to adjust the bolt labeled
44 in the preceding figure.
IInnssttaallllaattiioonn:: CCoonnttrroollss
