General Information
Vertical Configurations
(DFIA only)
For all arrangements shown, the gas piping is on the near side. The electric
control cabinet (EC) and disconnect are on the side opposite the air entering side.
Selected vertical units are available with special options – steam and electric
coils, no burner section. Contact your Trane representative for availability.

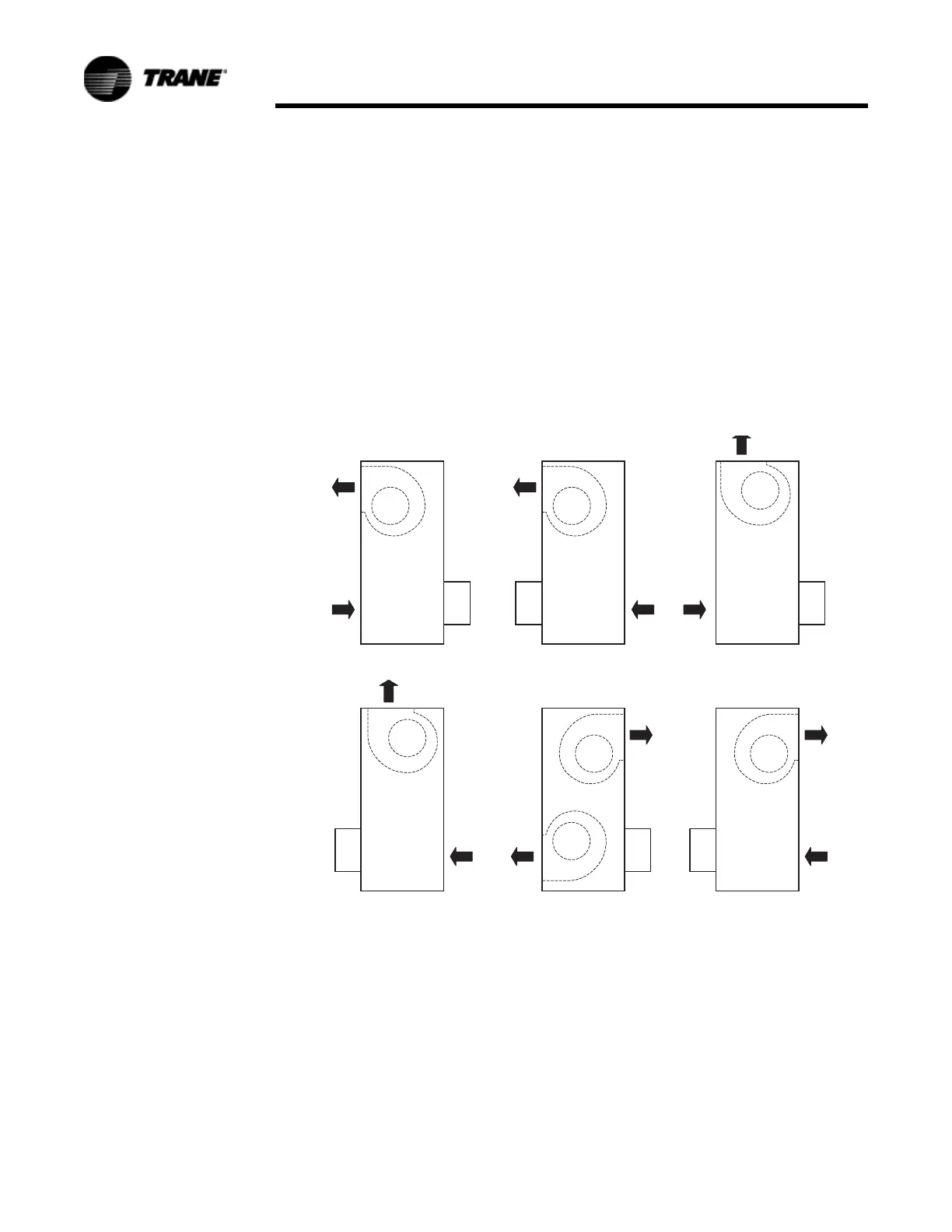

Figure 3. (DFIA only) vertical configurations
Fan Arrangement #9
Side Discharge
Fan Arrangement #6
Top Discharge
EC
EC
Fan Arrangement #8
Side Discharge
Fan Arrangement #5
Side Discharge
EC
EC
Fan Arrangement #7
Top Discharge
Fan Arrangement #4
Side Discharge
EC
EC
