Trane DFOA - Installation; Table 8. DFOA Roof Curb models 215-230 with mixing box

MUA-SVX01A-EN • Direct-Fired Make-up Air 37
Installation
Note 16. Curb to be shipped loose and assembled in the field.
Curb must be square and level.
Curb requires intermediate structural support and is not to be corner post mounted.
Gaskets to be shipped with unit.
Bolting accessories shipped with curb.
Curb drawings shown are for units which have controls on the "standard" side.

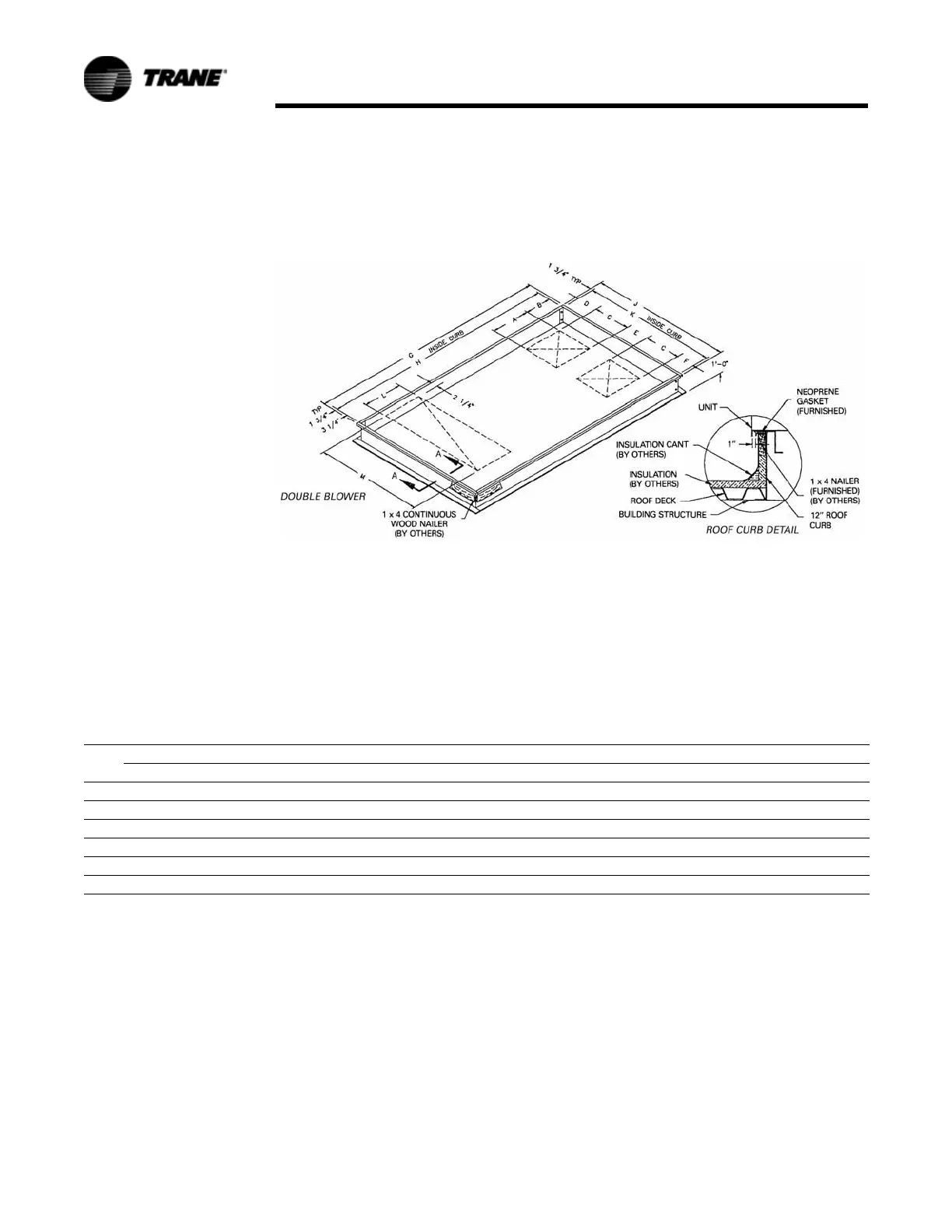

Figure 17. DFOA Roof Curb models 215-230 with mixing box
Table 8. DFOA Roof Curb models 215-230 with mixing box
Model
Dimensions (feet/inches))
AB CDEFGHJKLM
215 1’ - 4" 9 5/8" 1’ - 6 15/16" 5 1/8" 1’ - 10 1/2" 1’ - 11 3/8" 6’ - 3" 5’ - 11 1/2" 7’ - 8" 7’ - 4 1/2" 1’ - 8 1/4" 7’ - 0"
218 1’ - 7" 9 5/8" 1’ - 10 1/16" 5 1/8" 1’ - 4" 1’ - 11 3/8" 6’ - 3" 5’ - 11 1/2" 7’ - 8" 7’ - 4 1/2" 1’ - 8 1/4" 7’ - 0"
220 2’ - 0 7/8" 10 7/16" 2’ - 1 1/16" 9 5/8" 2’ - 5 1/2" 2’ - 11 1/2" 7’ - 10" 7’ - 6 1/2" 10’ - 8" 10’ - 4 1/2" 1’ - 8 1/4" 10’ - 0"
222 2’ - 3 3/8" 10 7/16" 2’ - 3 9/16" 9 5/8" 2’ - 0 5/8" 2’ - 11 1/2" 7’ - 10" 7’ - 6 1/2" 10’ - 8" 10’ - 4 1/2" 1’ - 8 1/4" 10’ - 0"
225 2’ - 7 3/8" 1’ - 2 13/16" 2’ - 7 1/2" 1’ - 0 5/8" 3’ - 1 5/8" 2’ - 11 1/2" 7’ - 10" 7’ - 6 1/2" 12’ - 8" 12’ - 4 1/2" 2’ - 2 1/2" 12’ - 0"
230 3’ - 0 7/8" 1’ - 2 13/16" 3’ - 1" 1’ - 0 5/8" 2’ - 2 5/8" 2’ - 11 1/2" 7’ - 10" 7’ - 6 1/2" 12’ - 8" 12’ - 4 1/2" 2’ - 2 1/2" 12’ - 0"
