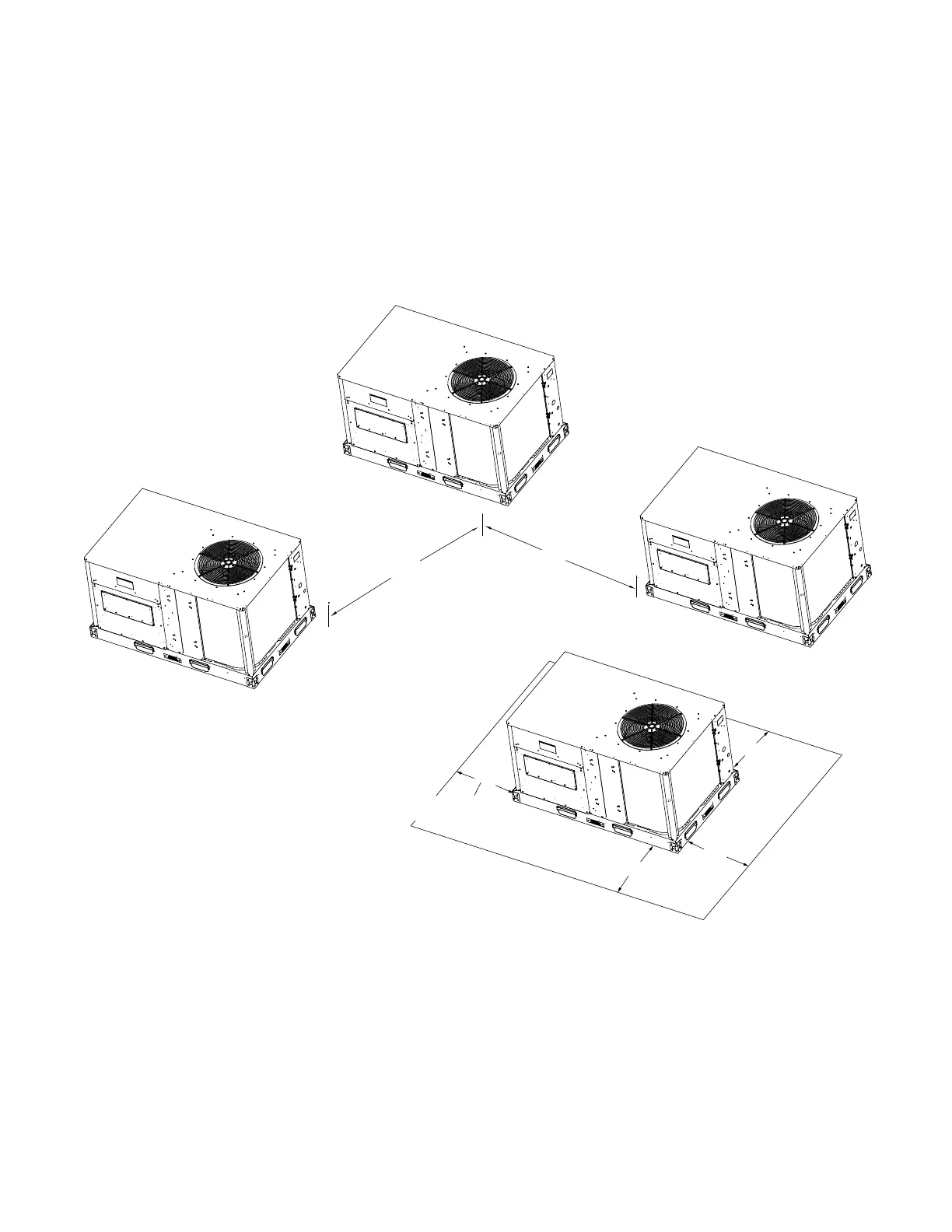

Figure 2. Cooling with optional electrical heat units — overview

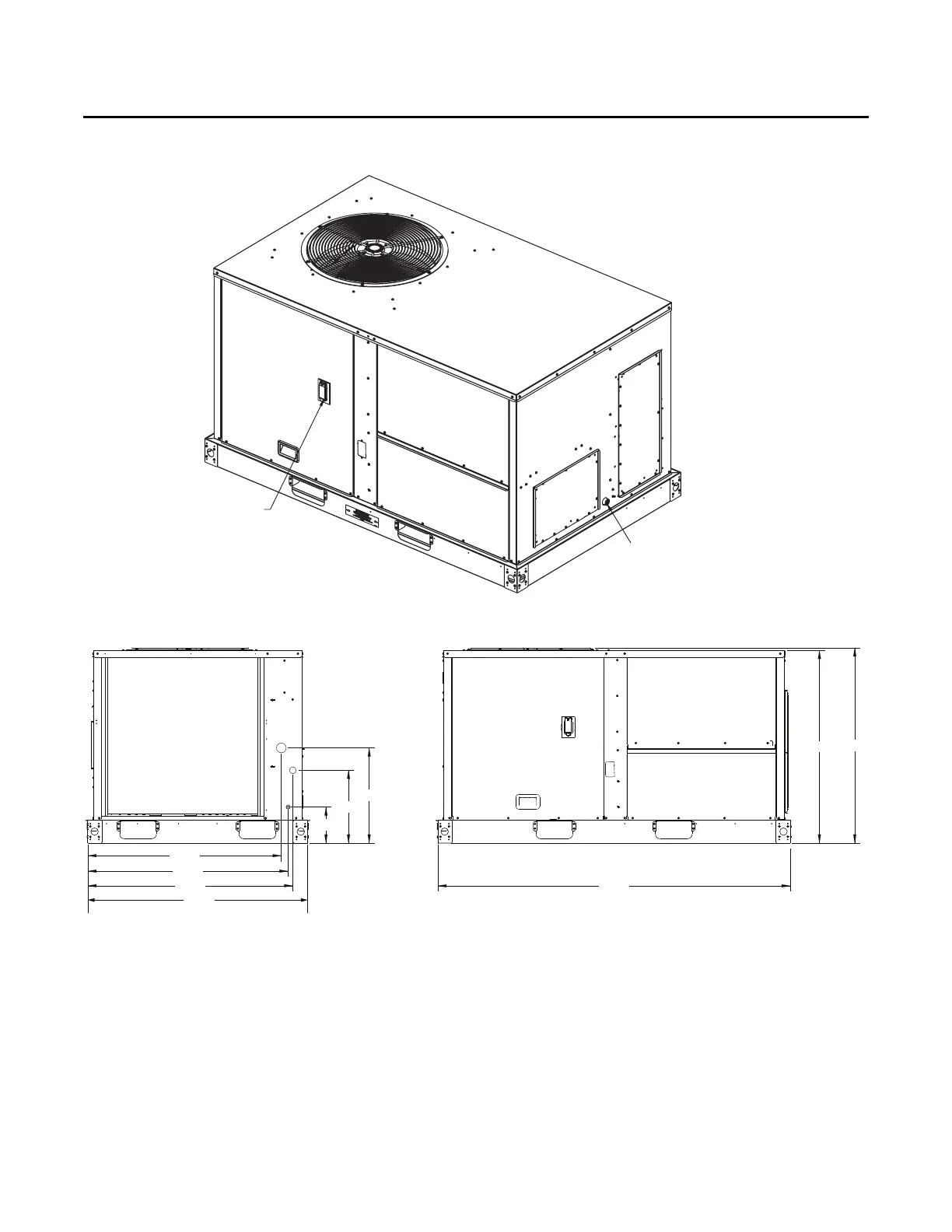

Figure 3. Cooling with optional electrical units — front & side views — 3–5 tons
Dimensional Data
RT-SVX059D-EN 9
DISCONNECT SWITCH ACCESS
CONDENSATE DRAIN CONNECTION
NOTES:
1. THRU-THE-BASE ELECTRICAL IS NOT STANDARD ON ALL UNITS.
2. VERIFY WEIGHT, CONNECTION, AND ALL DIMENSION WITH INSTALLER
DOCUMENTS BEFORE INSTALLATION
47.934
42.175
43.675
44.675
42.004 42.558
76.814
20.735
15.860
7.860
