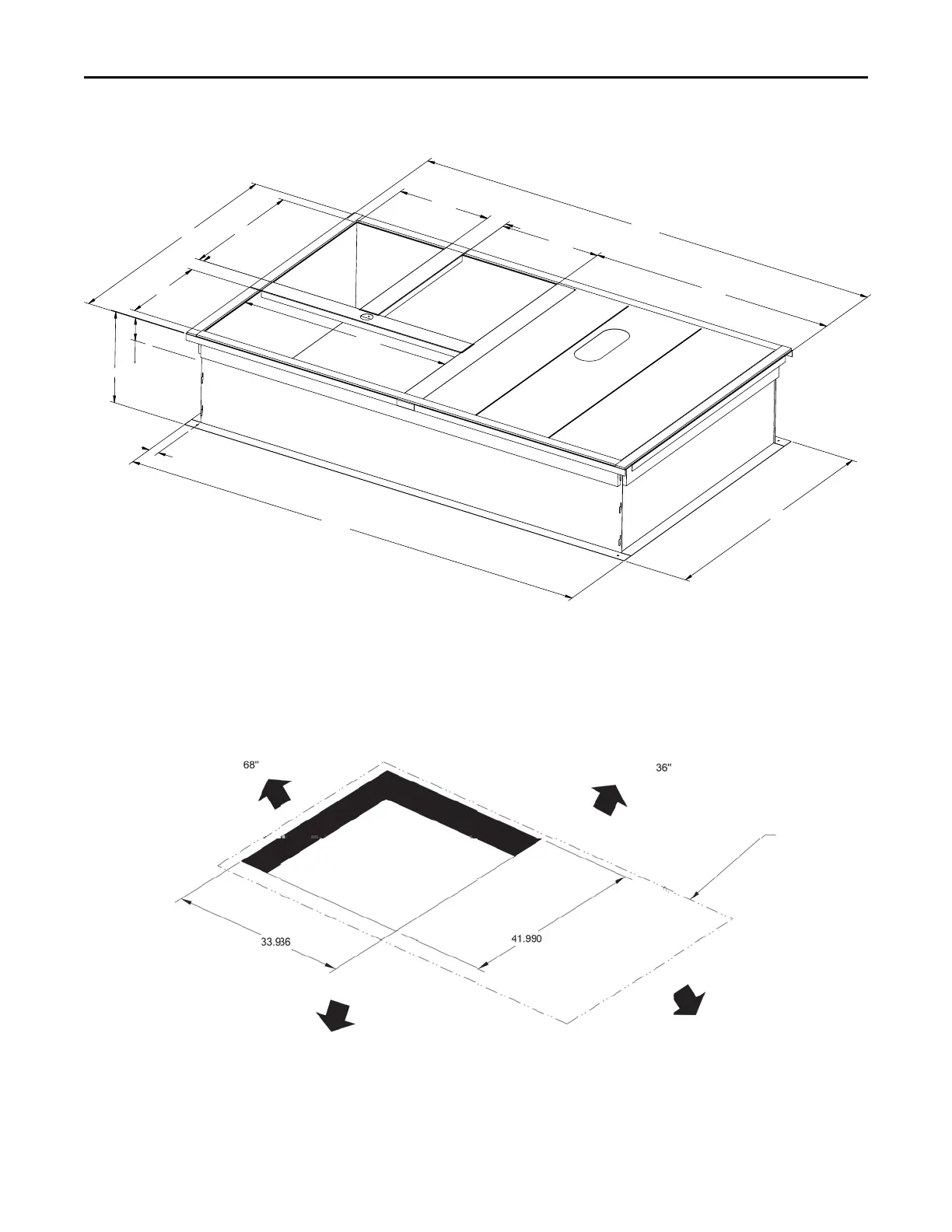

Figure 6. Cooling with optional electrical heat and electric/electric units — roof curb
SUPPLY
RETURN
70.871”
1.500”
41.986”
14.000”
3.548”
14.430”
3.000”
21.060”
41.990”
32.188”
36.938”
15.188”
3.000”
70.875”
14.000”
Figure 7. Cooling with optional electrical heat and electric/electric units — downflow unit clearance
CLEARANCE
CLEARANCE 60”
CLEARANCE
CLEARANCE 48”
UNIT OUTLINE
DDiimmeennssiioonnaall DDaattaa
