Unit Clearances, Curb Dimensions, and Dimensional Data
26 OAU-SVX007A-EN

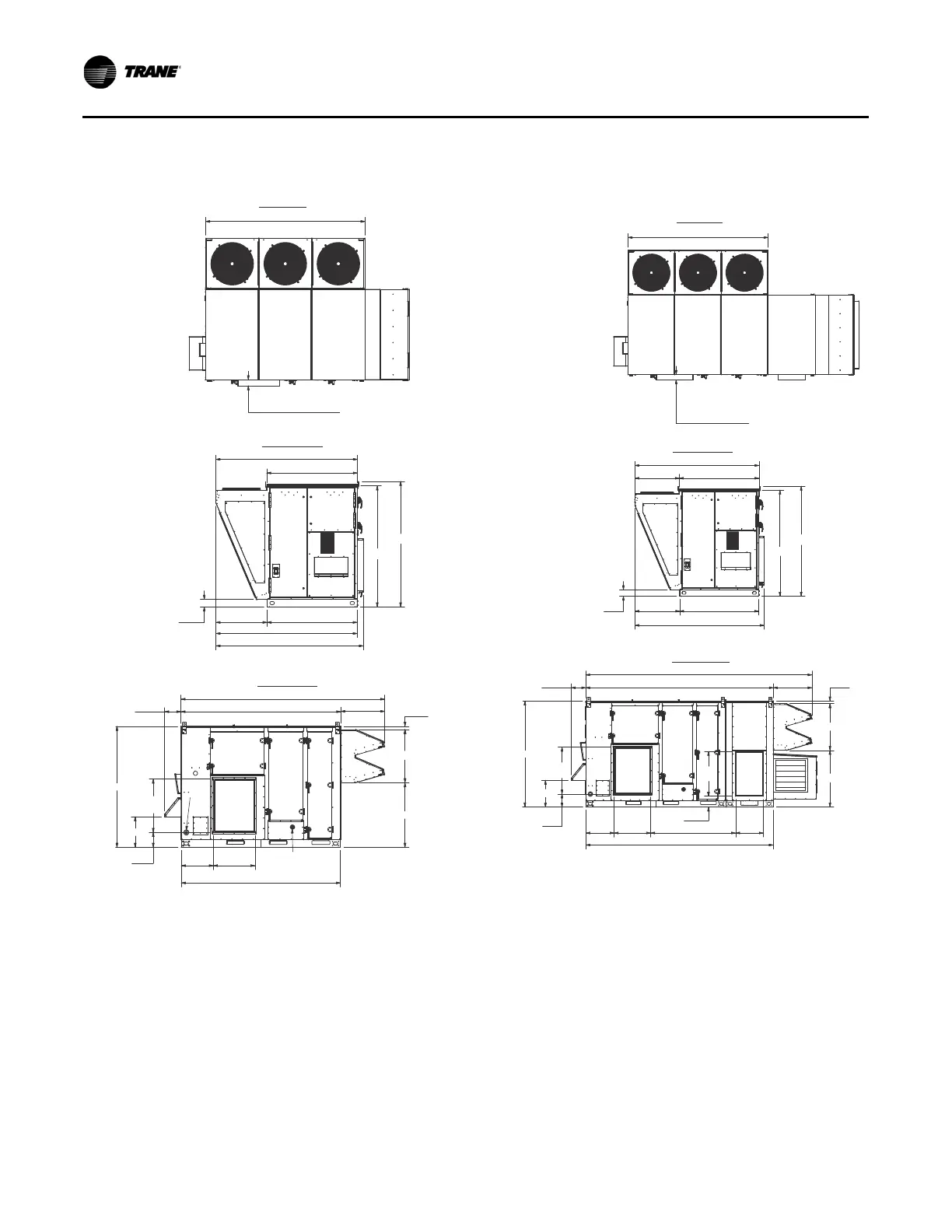

Figure 20. Unit dimensional data for OAK 12–30 tons,
horizontal supply and vertical/no return (in.)
4.00
SA duct flange
106.21
TOP VIEW
60.47
80.57
60.00
34.00
83.57
98.12
94.00
5.00
94.33
FRONT VIEW
Condensate
Drain
SA
Gas
inlet
106.45
20.35
106.00
135.71
80.57
9.94
SA
SA
35.50
21.41
27.68
35.47
29.26
43.02
2.08
10.91
RIGHT VIEW
Figure 21. Unit dimensional data for OAK 12–30 tons,
horizontal supply and horizontal return with
optional exhaust fan (in.)
4.00
RA/SA
duct flange
(Typical)
106.21
TOP VIEW
80.57
83.57
94.21
60.00
34.00
33.75 60.47
5.00
98.11
FRONT VIEW
SA
RA
142.52
34.00
10.91
80.57
8.22
9.94
SA
SA
21.41
64.52
27.68
35.50
RA
RA
21.00
142.11
43.02
35.47
29.28 2.08
20.35
171.80
RIGHT VIEW
