Trane L8V1A040U3VSBA User Manual

L8V1-SVX001-1A-EN
49

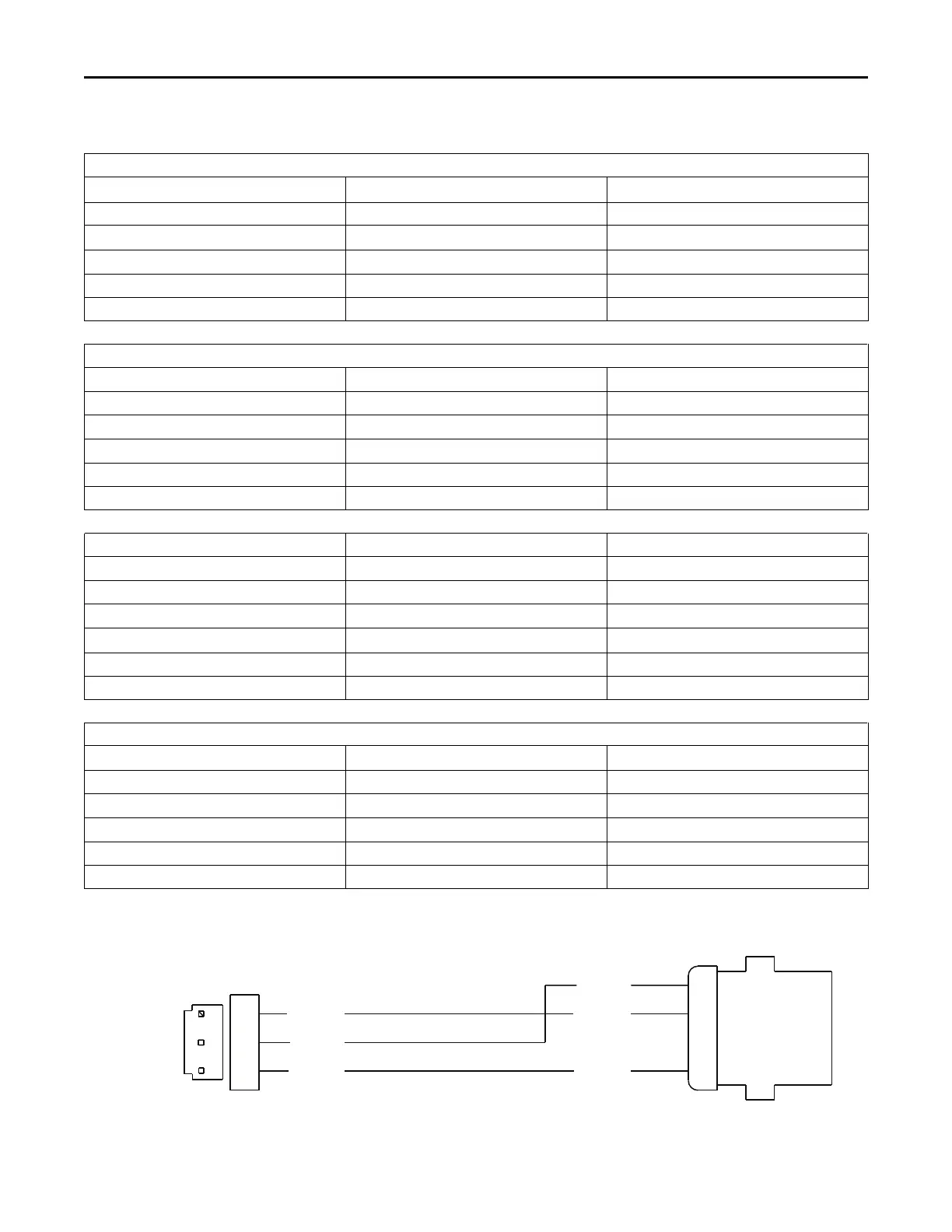

Table 17. Inducer Pressure Transducer
L8V1A040U3VS*
Inducer Mode Pressure (in/H20) VDC Pins 2 & 3
OFF 0 0.5
Pre-Purge – 1.3 1.8
Light-Off
– 1.3 1.8
Stabilization – 1.4 1.9
Run – 1.75 2.25
L8V1A060U3VS*
Inducer Mode Pressure (in/H20) VDC Pins 2 & 3
OFF 0 0.5
Pre-Purge – 1.6 0.1
Light-Off
– 1.1 1.6
Stabilization – 1.3 1.8
Run – 1.6 2.1
L8V1B080U4VS*
Inducer Mode Pressure (in/H20) VDC Pins 2 & 3
OFF 0 0.5
Pre-Purge – 1.5 2
Light-Off
– 0.75 1.25
Stabilization
– 1 1.5
Run – 1.68 2.18
L8V1C100U5VS*
Inducer Mode Pressure (in/H20) VDC Pins 2 & 3
OFF 0 0.5
Pre-Purge – 1.5 2
Light-Off – 0.9 1.4
Stabilization – 1.2 1.7
Run – 1.6 2.1
Note: Source voltage = ~4.8 VDC with pressure transducer removed Pins 2 & 3.
RD/34
BK/32
RD/34
BK/32
GR/33 GR/33
1
2
3
4
PRESSURE
TRANSDUCER
1
2
3
4
GND 3
E18
VCC 1
PI 2
1
2
3
LLEEDD FFaauulltt CCooddeess
