10 LPC-SVX01C-EN

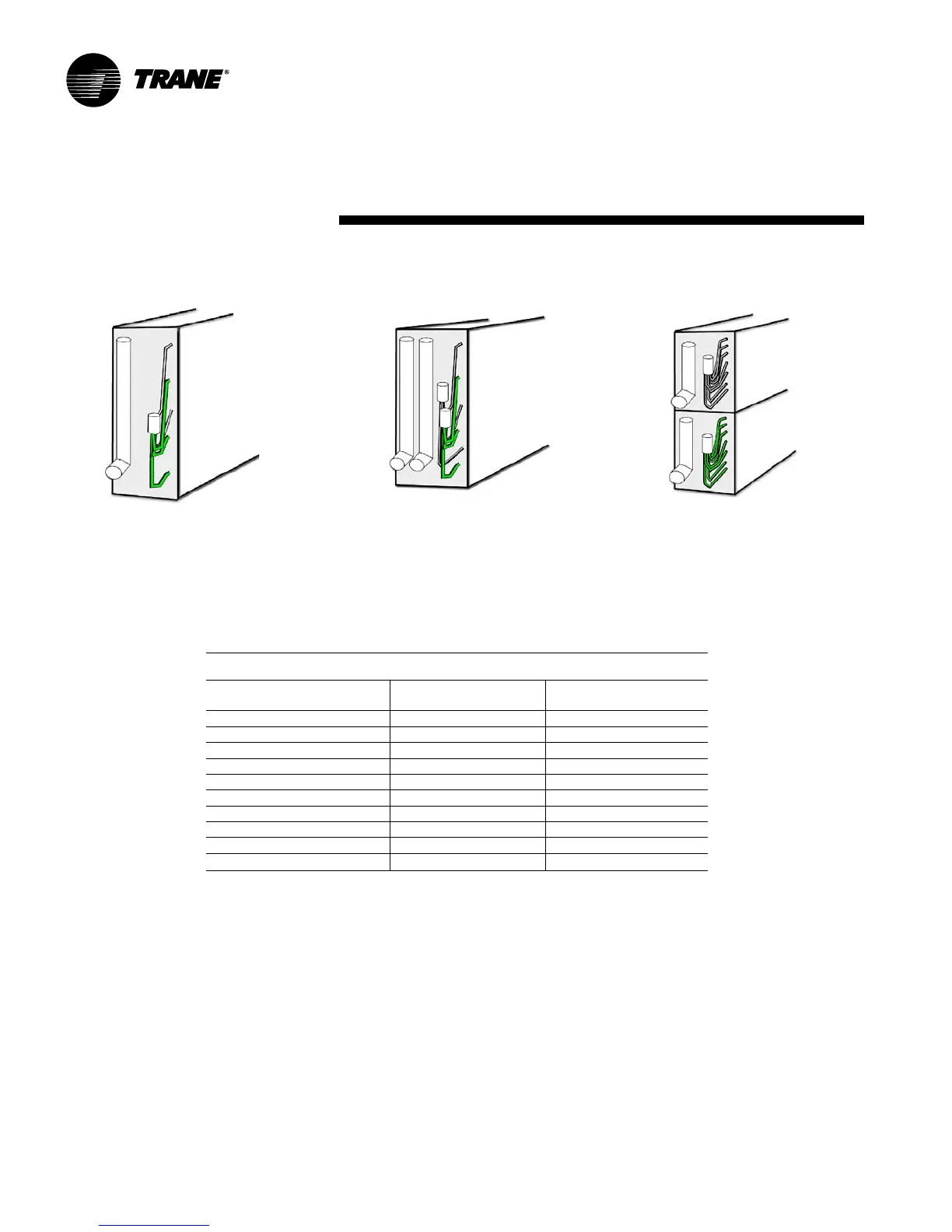

Figure I-GI-3. Horizontal Face Split DX Coil
Figure I-GI-2. Intertwined DX Coil
Dx Coil Options
Figure I-GI-1. Single Circuit DX Coil
Installation
general
information
Table I-GI-5. Packaged Climate Changer DX Coil Configuration Options
Coil
Configuration Single Horizontal Face Split Intertwined
Unit # # Coil Fin # # Coil Fin # # Coil Fin
Size Dist. Circuits Width Length Dist. Circuits Width Length Dist. Circuits Width Length
3 1 3 17.5 23.0 – – – – – – – –
6 1 5 22.5 36.0 – – – – – – – –
8 1 7 27.5 39.0 2 7 27.5 39.0 2 7 27.5 39.0
10 1 10 27.5 51.0 2 10 27.5 51.0 2 10 27.5 51.0
12 – – – – 2 13 35.0 51.0 2 13 35.0 51.0
14 – – – – 2 13 35.0 59.0 2 13 35.0 59.0
17 – – – – 2 17 45.0 54.0 4 17 45.0 54.0
21 – – – – 2 17 45.0 66.0 4 17 45.0 66.0
25 – – – – 2 20 51.3 68.0 4 20 51.5 68.0
30 – – – – 4 40 51.3 81.0 4 40 51.3 81.0
Note: 4-row coils have a
3
/16" distributor. 6-row coils have a
1
/4" distributor.
