Note: Access section is only available with a
1 or 2-row heating coil and ships seperate
from main unit.
Note: This is a flanged
edge to secure section
to either the main unit
or another section.
Installation
dimensions
& weights

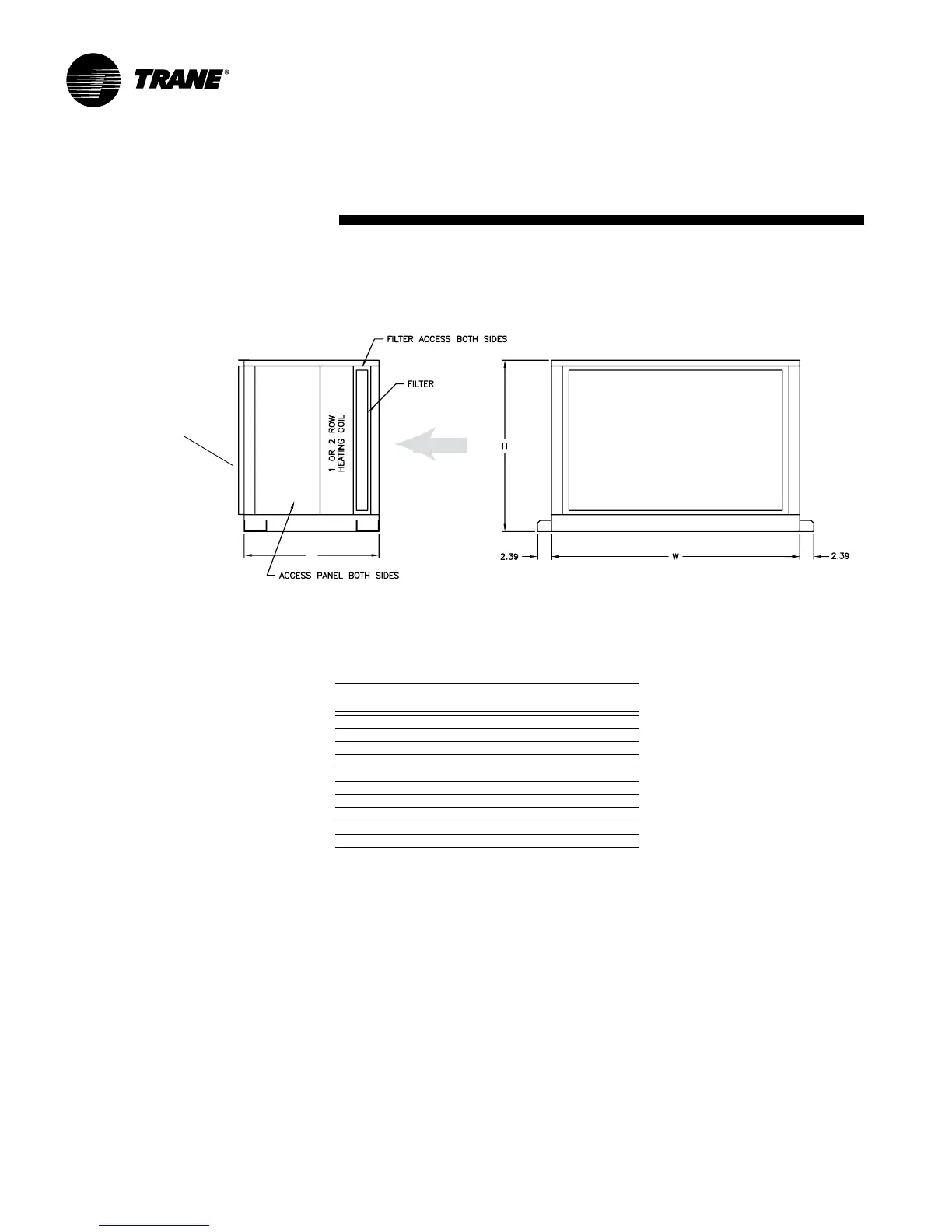

Access Section, in.
Access section dimensions & weights, in-lbs.
unit weight
size H L W SW DW
3 24.5 24.3 31.2 69 97
6 30.5 24.3 44.2 100 137
8 34.5 24.3 48.2 106 148
10 34.5 24.3 60.2 119 169
12 42.0 24.3 68.2 162 218
14 42.0 24.3 68.2 157 213
17 52.0 24.3 76.2 204 267
21 52.0 24.3 76.2 196 259
25 59.5 28.3 78.2 248 336
30 59.5 28.3 91.2 271 370
Notes: 1. SW = Single Wall
2. DW = Double Wall
Airflow
