LPC-SVX01C-EN 17

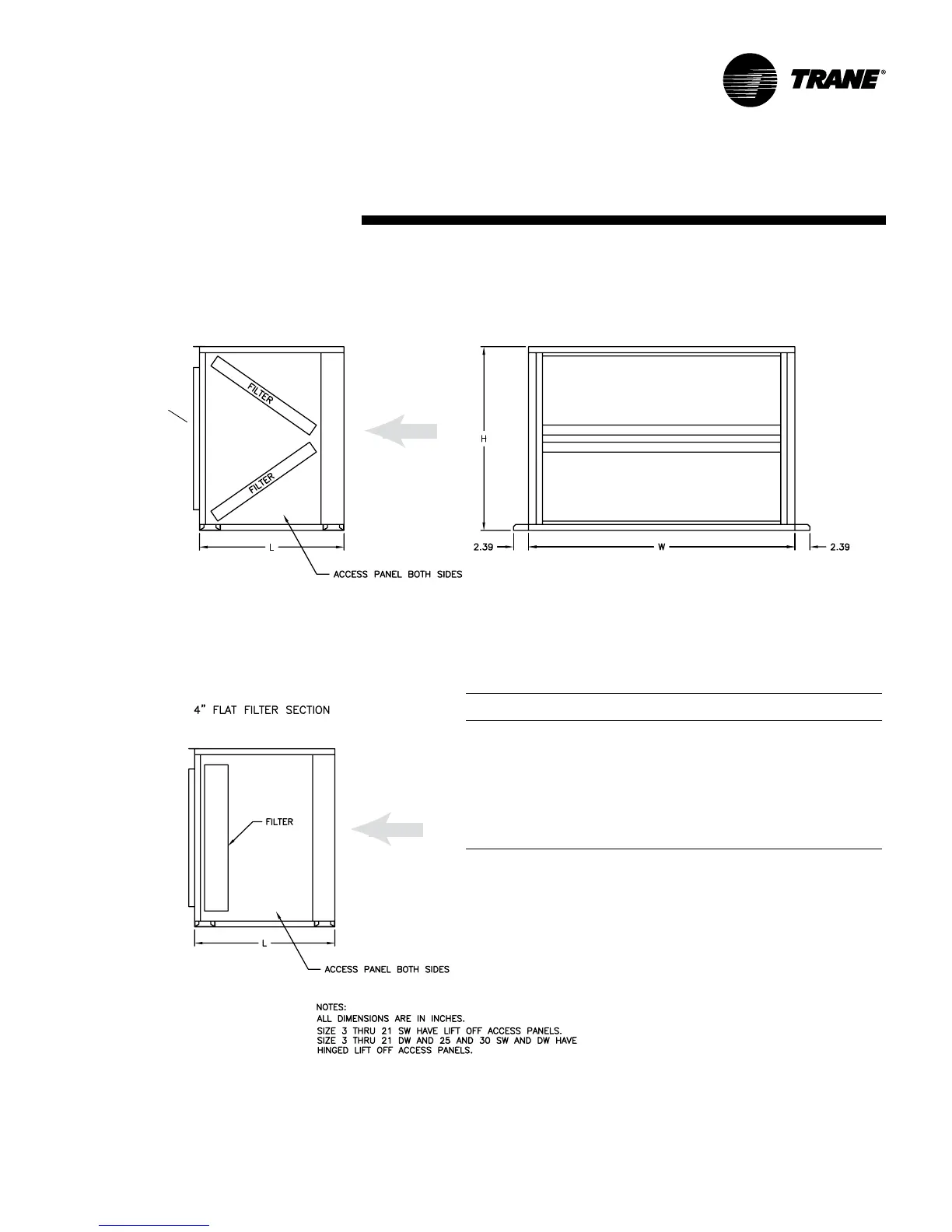

Installation
dimensions
& weights
(5.6)
(5.6)
Note: Angle filter section ships
seperate from main unit.
Note: This
is a flanged
edge to secure
section to
either the main
unit or
another section.
Flat Filter Section in.
Angle Filter Section in.
Angle & flat filter section dimensions & weights, in-lbs.
unit flat filter angle filter
size H L W SW DW SW DW
3 24.5 21.5 31.2 46 60 50 64
6 30.5 24.0 44.2 64 86 68 90
8 34.5 27.3 48.2 78 107 82 111
10 34.5 25.5 60.2 83 115 89 121
12 42.0 27.3 68.2 112 151 126 165
14 42.0 27.3 68.2 112 151 126 165
17 52.0 29.3 76.2 164 209 179 224
21 52.0 29.3 76.2 164 209 179 224
25 59.5 35.0 78.2 184 250 200 266
30 59.5 35.0 91.2 201 275 217 291
Notes: 1. SW = Single Wall
2. DW = Double Wall
Airflow
Airflow
