18 LPC-SVX01C-EN
Notes:
All dimensions are in inches.
Damper section ships seperate from main unit.
Linkage between dampers factory installed inside
mixing box on drive side.
Note: This is a flanged
edge to secure section
to either the main unit
or another section.
OPENING OPENING
(6.1)
(6.1)
Installation
dimensions
& weights

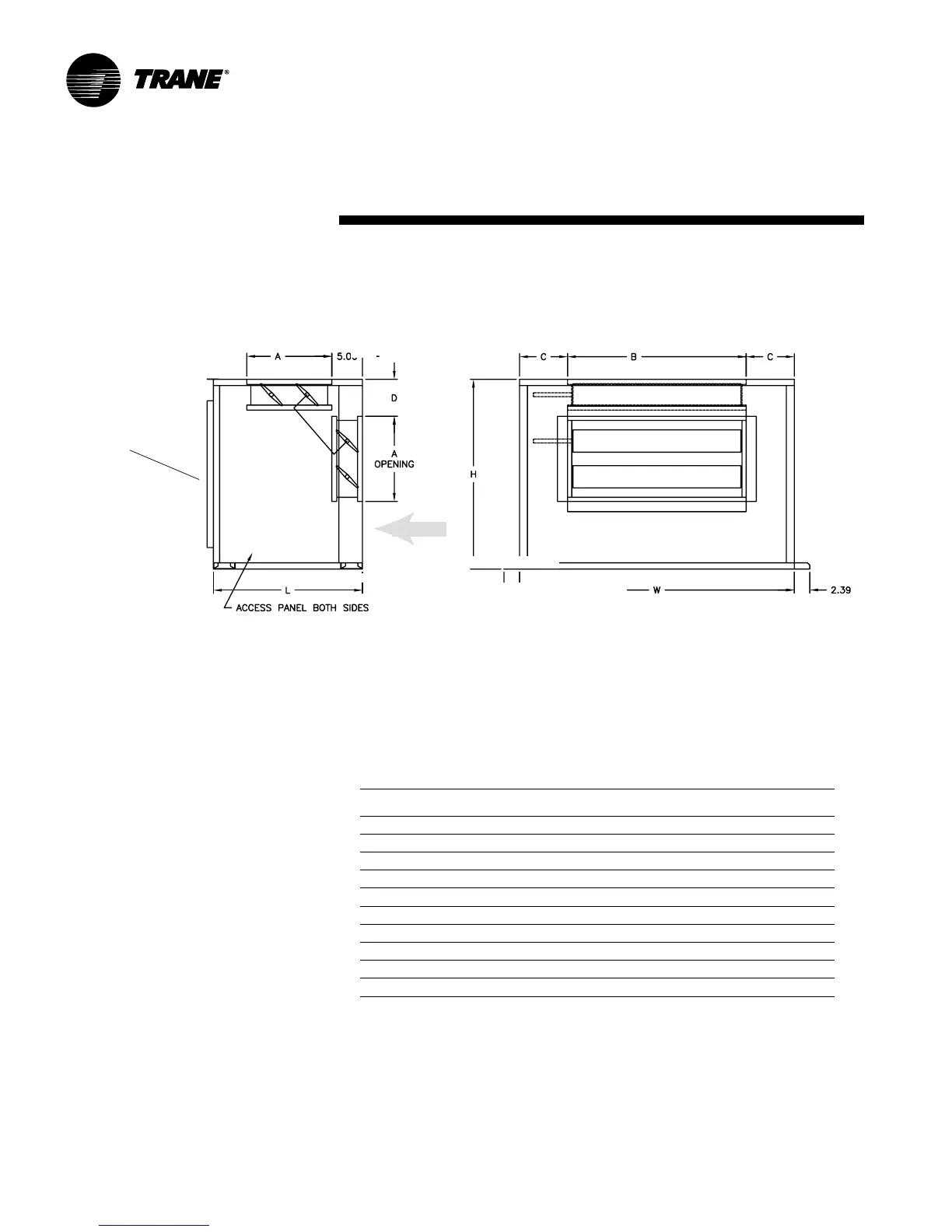

Damper section dimensions & weights, in-lbs.
unit damper weights
size H L W A B C D qty. - size SW DW
3 24.5 21.5 31.2 14.0 16.0 7.6 5.8 2 - 14.0 x 16.0 80 98
6 30.5 24.0 44.2 14.0 29.0 7.6 5.8 2 - 14.0 x 29.0 119 147
8 34.5 27.3 48.2 19.7 26.0 11.1 5.8 2 - 19.7 x 26.0 135 170
10 34.5 25.5 60.2 14.0 46.0 7.1 5.8 2 - 14.0 x 46.0 168 208
12 42.0 27.3 68.2 19.7 37.0 15.6 5.8 2 - 19.7 x 37.0 186 237
14 42.0 27.3 68.2 19.7 44.0 12.1 5.8 2 - 19.7 x 44.0 199 248
17 52.0 29.3 76.2 19.7 53.0 11.6 5.8 2 - 19.7 x 53.0 274 340
21 52.0 34.0 76.2 25.5 53.0 11.6 5.8 2 - 25.7 x 53.0 309 376
25 59.5 35.0 78.2 25.5 58.0 10.1 6.0 2 - 25.7 x 58.0 318 399
30 59.5 35.0 91.2 25.5 68.0 11.6 6.0 2 - 25.7 x 68.0 355 447
Damper Section, in.
Airflow
Notes: 1. SW = Single Wall
2. DW = Double Wall
