20 LPC-SVX01C-EN
Installation
Electric Heat Section
CUSTOMER ELECTRICAL
CONNECTION LOCATION &
SIZE TO BE DETERMINED BY
TUTCO

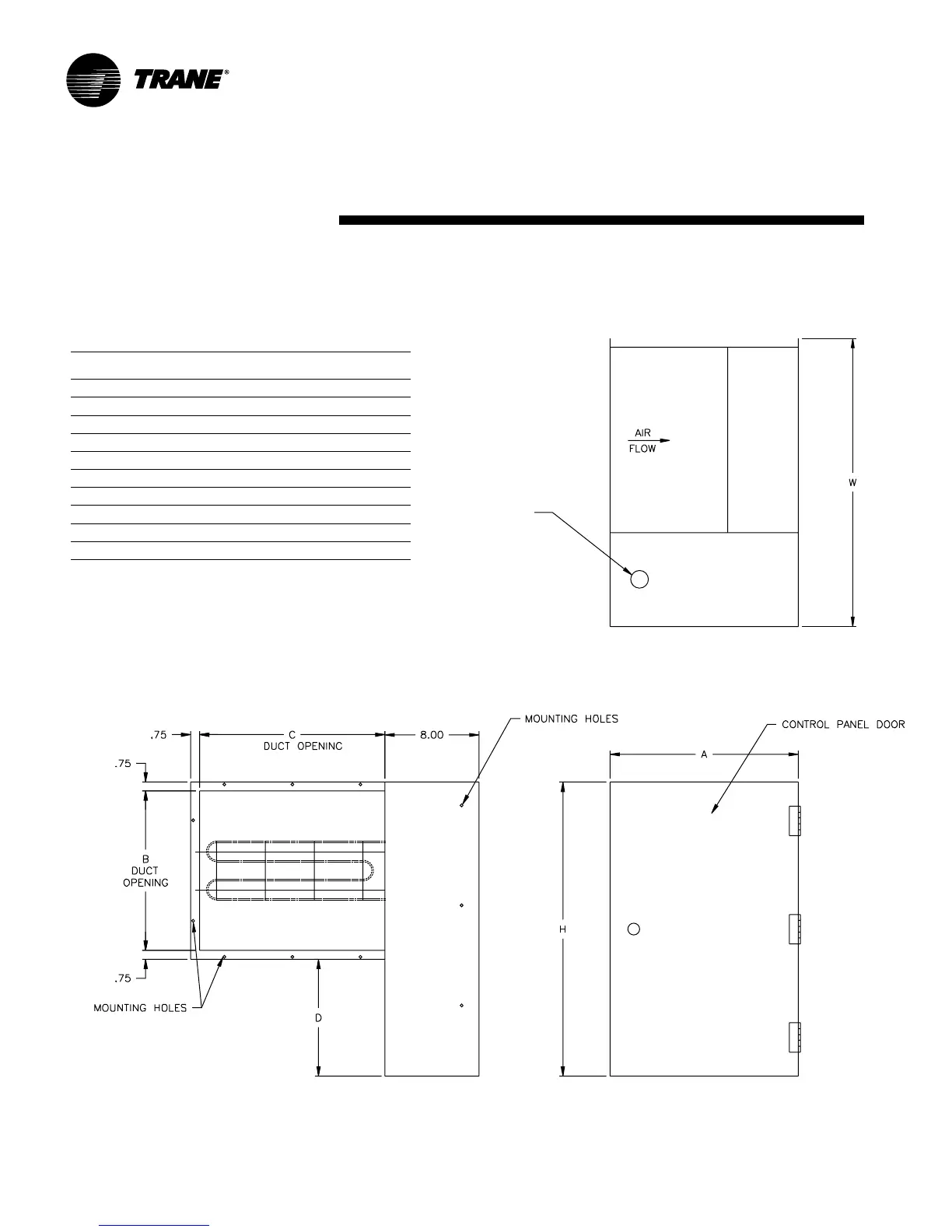

Electric Heat Section Dimensions & Weights, in-lbs.
Unit
Size H W A B C D Weight
3 24.5 18.0 12.0 10.4 9.3 12.1 34.0
6 30.5 21.0 16.0 13.6 12.3 8.9 38.0
8 34.5 24.5 16.0 13.6 15.8 9.9 44.0
10 34.5 27.5 20.0 16.0 18.8 11.5 62.0
12 42.0 27.8 20.0 19.0 19.0 13.5 66.0
14 42.0 30.8 20.0 19.0 22.0 13.5 69.0
17 52.0 28.6 20.0 24.9 19.9 7.6 73.0
21 52.0 33.6 20.0 24.9 24.9 7.6 77.0
25 59.5 32.0 20.0 25.3 23.3 7.3 79.0
30 59.5 35.1 20.0 28.3 26.4 4.2 82.0
dimensions
& weights
