LPC-SVX01C-EN 21

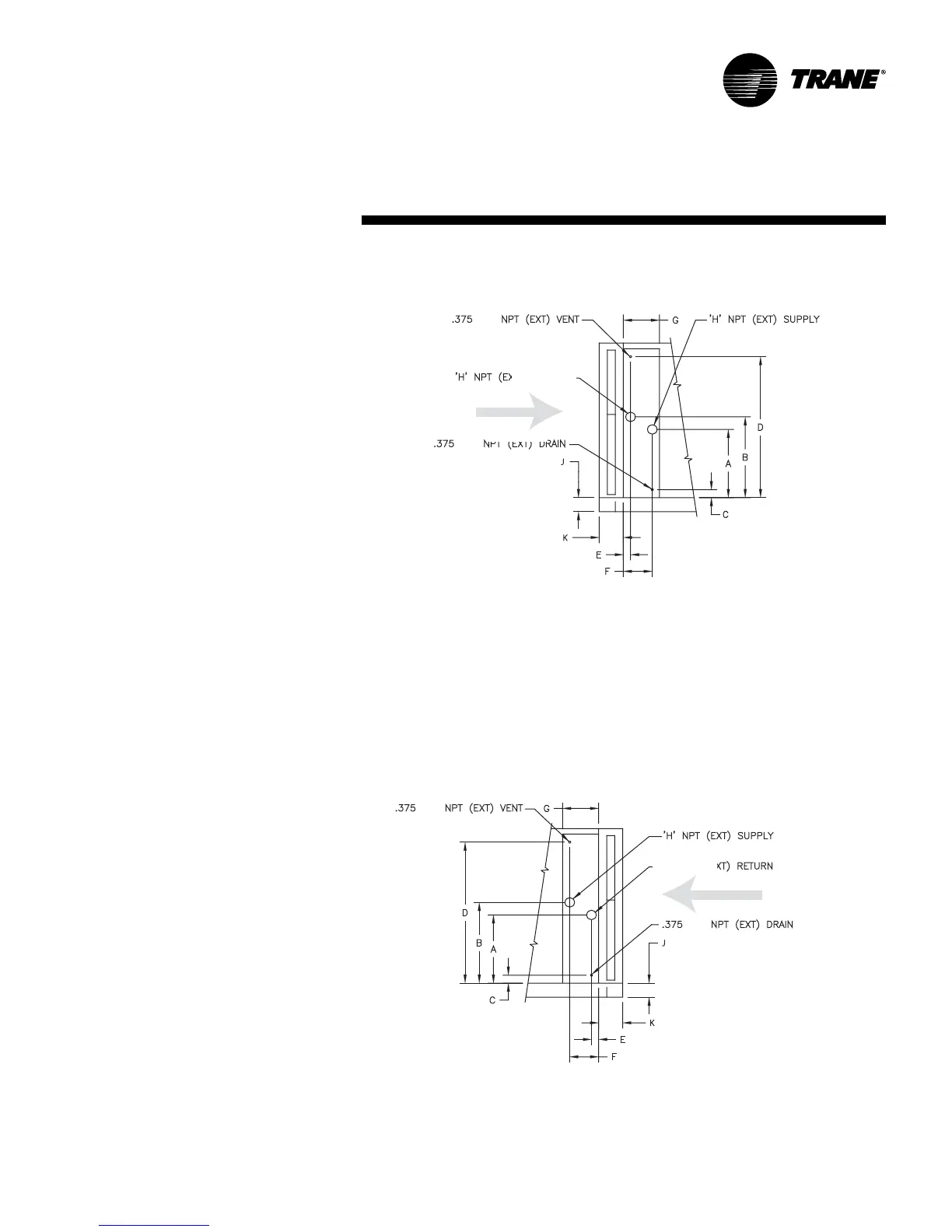

Water Coil Connections
left hand
right hand
Note: J = 3.1” on unit sizes 3 and 6
= 3.6” on unit sizes 8–21
= 4.6” on unit sizes 25 & 30
K = 6.1” on unit sizes 3–21
= 8.1” on unit sizes 25 & 30
Installation
dimensions
& weights
AIR FLOW
AIR FLOW
