Trane LPC User Manual

LPC-SVX01C-EN 7
Installation
general
information

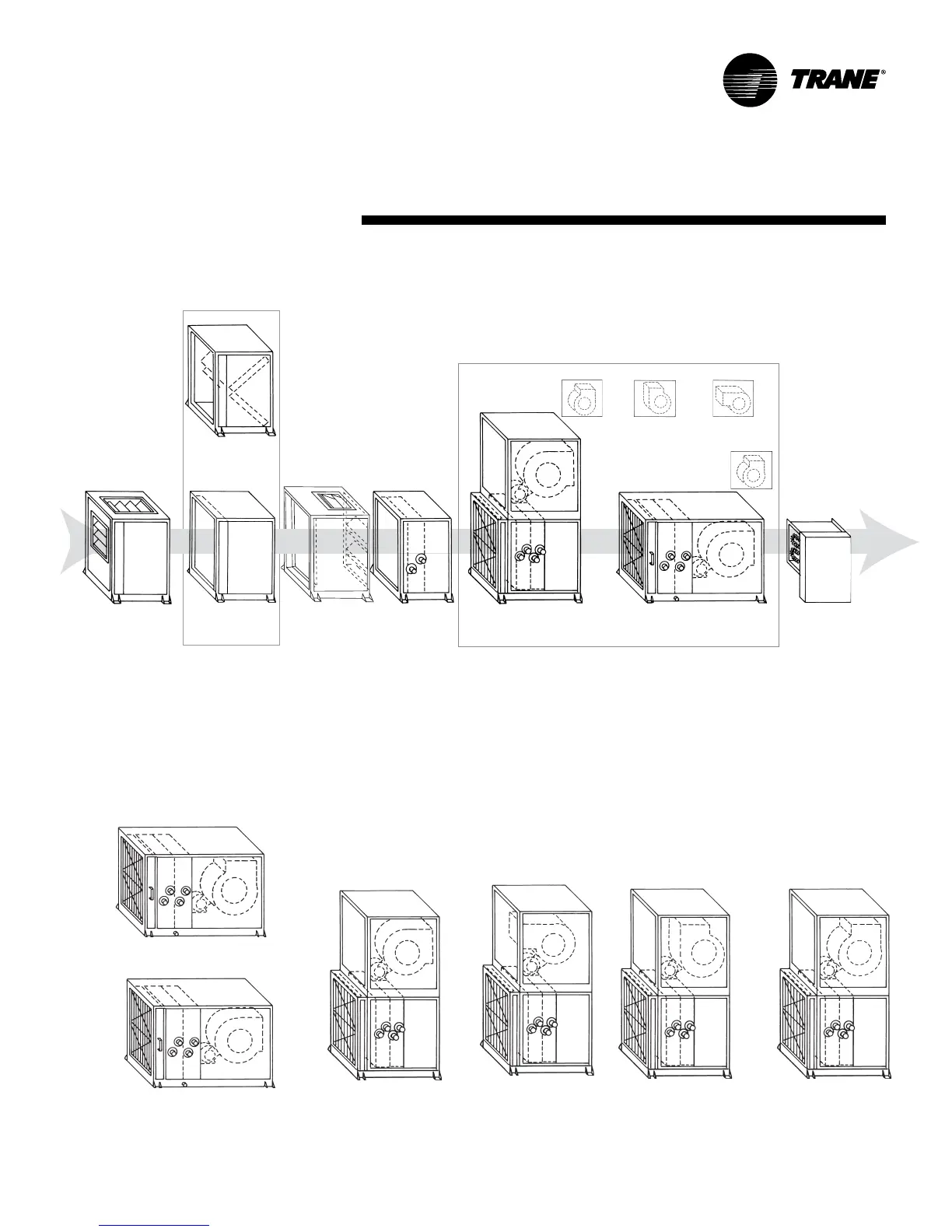

Packaged Climate Changer Unit Configurations and Optional Sections
Available Fan Discharge Configurations Detail
Horizontal Unit, Top Front Fan Discharge
Horizontal Unit, Front Top Fan Discharge
Vertical Unit, Front Top
Fan Discharge
Vertical Unit, Back Top
Fan Discharge
Vertical Unit, Top Back
Fan Discharge
Vertical Unit, Top Front
Fan Discharge
Electric Heat
Section
Optional
Section
Main Unit Section Configurations
Vertical Unit, Front Top
Discharge
Horizontal Unit, Front Top
Discharge
OR
Top Front
Horizontal Unit Fan
Discharge Option
Top Front Top Back
Back Top
Vertical Unit Fan Discharge Options
Face & Bypass
Section
Optional Sections
Flat Filter
Section
Angle Filter
Section OR
Coil Access
Section
Mixing
Section
