[ IX Disassembly Procedure ]
- 34 -
HWE1832A GB
3. Drainpan
Exercise caution when removing heavy parts.
1. Removing the filter and the bottom plate
(1) Push down the tab on the filter, and pull out the filter in
the direction of the arrow 1.
(2) Remove the fixing screws on the bottom plate (D), (E) to
remove it.
Tighten screws to a torque of 1.4 0.2 N.m.

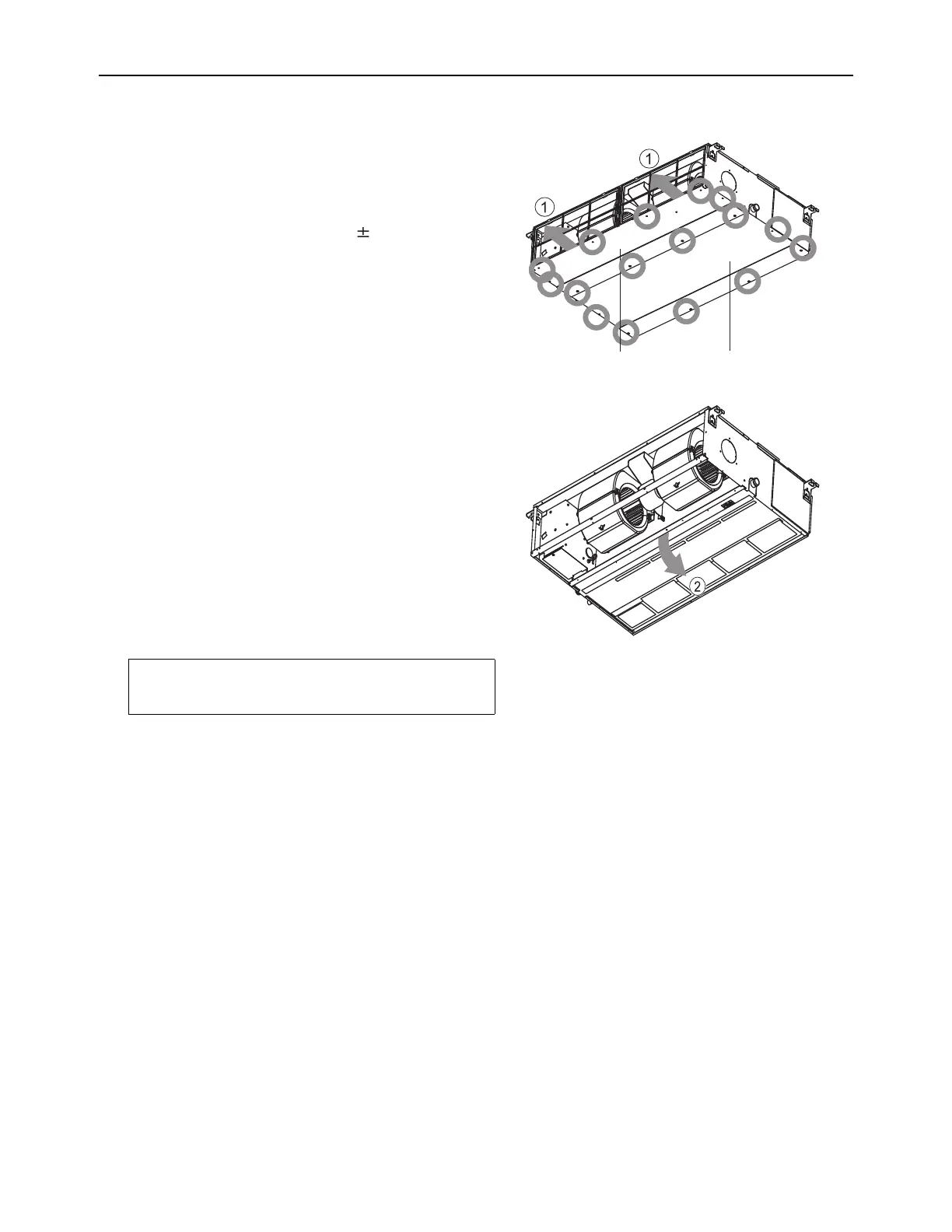

Fig.4
2. Removing the drainpan
(1) Pull out the drain pan in the direction of the arrow 2.
Fig.5
Note
Drain the water out of the drain pan before removing
it.
(D)
(E)
