18 AMS-SVX02A-EN
Unit Installation
Less than
500mm
220mm
1-1.5m
Roof
Less than 300mm
Ceiling
Clamp (accessory)
Drainage hose
(accessory)
Drainage lift pipe
Hanger bracket
Less than 280mm

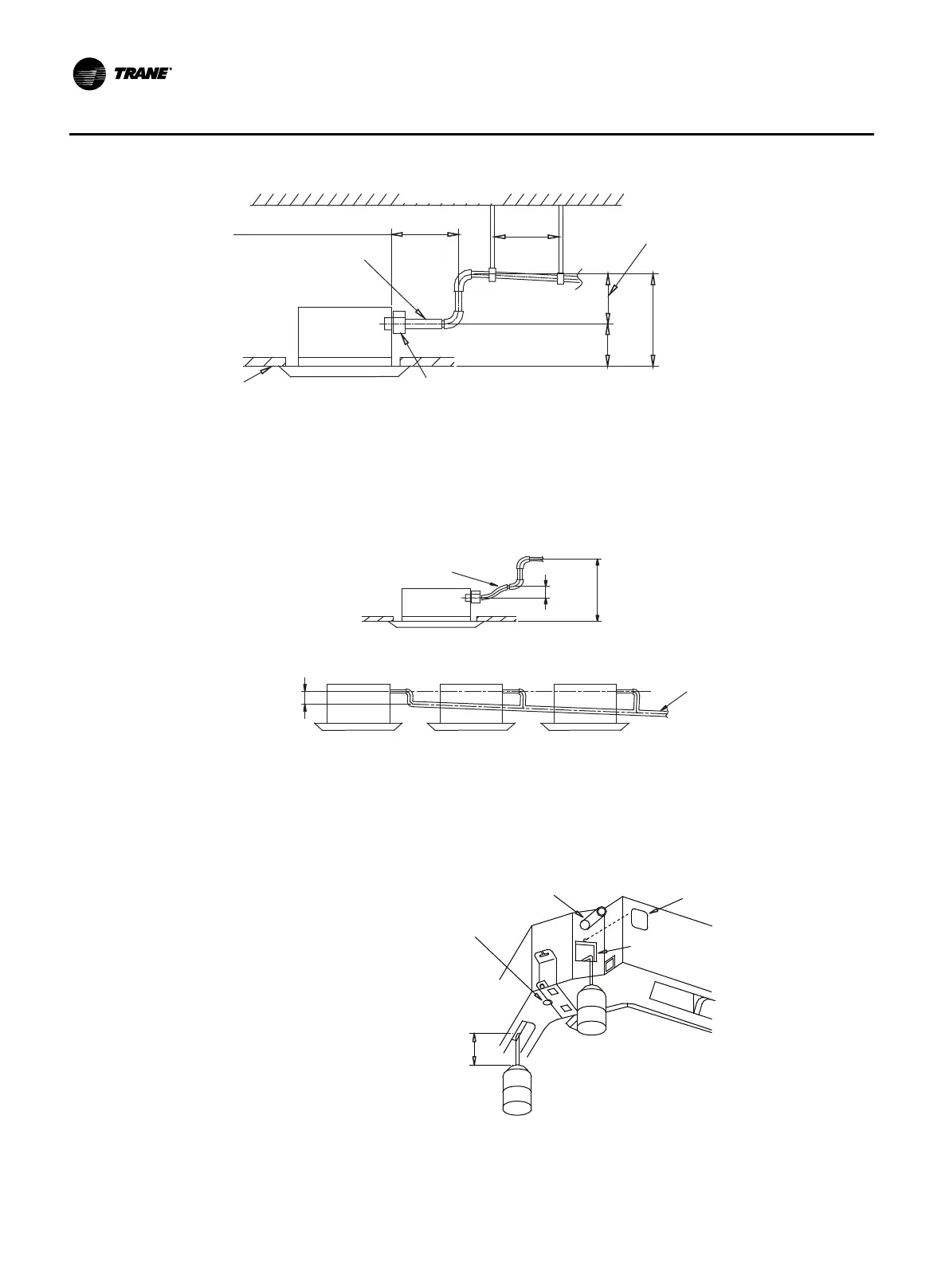

Figure 13.
Explanation
The inclination of supplied drainage hose shall not exceed 75mm, allowing the drainage •
socket not have to bear additional external force.
If several drainage pipes converge, then perform the installation by following the •
procedures below.
Drainage hose
(accessory)
Over 100mm
T-joint Confluent
drainage pipe
Less than 75mm
Less than 500mm
Selected confl uent drainage pipe to be sized to operating capacity to the Figure 14.
unit
Check if the water drains smoothly at the end of installation.2.
Slowly inject 600cc water via air outlet or inspection hole to check the drainage.•
Check the drainage in the cooling condition after installation of electrical circuits.•
[Water injection method]
Drainage pipe
Over 100mm
<Inject water at the air outlet end>
<Inject water via the
inspection hole>
Plastic spray can
(its tube shall be about 100mm in length)
Inspection hole cover
Inspection hole
Service drainage outlet
(with rubber plug)
(drain off the water in the gutter via this outlet)
Figure 15.
