14 AMS-SVX02A-EN
Unit Installation
Panel Installation

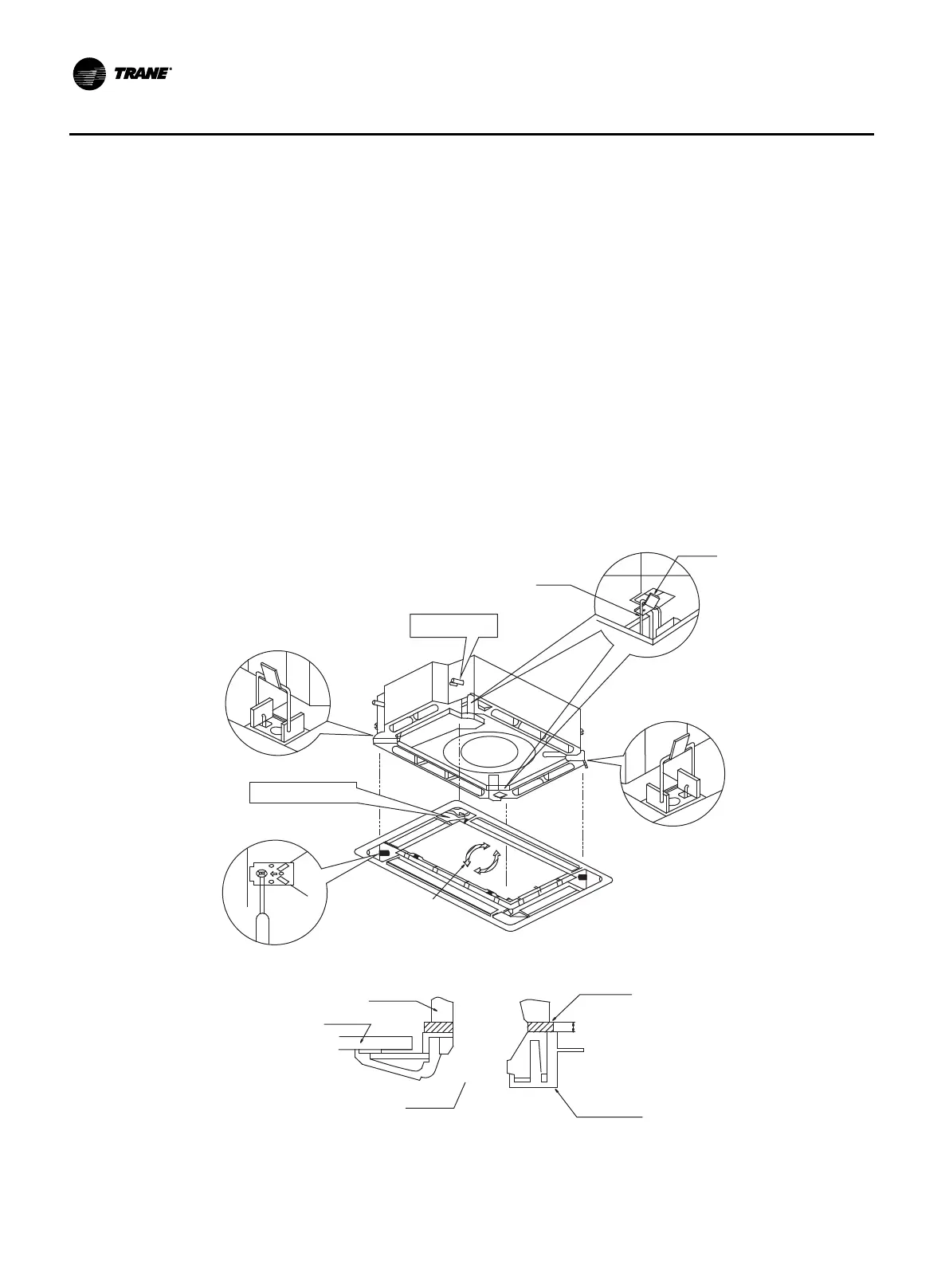

As shown in Fig.6, place the air defl ector motor facing indoor unit pipe mouth.1.
Panel installation2.
Ɨ Install the panel on the indoor unit temporarily. Put the buckle at the hook (2 positions) in
the opposite air defl ector motor side.
Ƙ Put the residual 2 buckles at the main hook temporarily (air defl ector motor wires can not
be involved in sealing materials).
ƙ Torque the 4 hexagonal screws below the hook to 15mm (the panel will be lifted later).
ƚ As shown in fig.ƚ , adjust the panel in arrow direction for good connection between
regulation plate and the ceiling.
ƛ Tighten screws till the thickness of sealing materials between panel and indoor unit is
5-8mm.
ƛ
ƚ
ƙ
Ƙ
Ƙ
Ɨ
Hook
Buckle
Pipe mouth
Air deflector motor
Indoor unit
Ceiling
Air outlet
Decoration panel
Sealing materials
5-8mm
Figure 6.
