Installation - Mechanical
28 CLCH-SVX009L-EN
• Bolt the shipping splits together.
• Ensure that the hanger rods extend through the bottom of
the base lug. It is the responsibility of the building
engineers to provide the appropriate hangers.
Unit Assembly for Indoor Units
Note: Air handlers often include optional factory-provided
casing penetration entry points for field-provided
wiring. Consider overall unit serviceability and
accessibility before mounting, running wires (power),
making cabinet penetrations, or mounting any
components to the cabinet.
Joining at Shipping Splits
1. Bring sections close to each other prior to connecting.
2. Remove the strap channels, top and bottom screws from
the main section, and retain the screws. Screws will be
used to tie the sections together. See the Figure 25 .

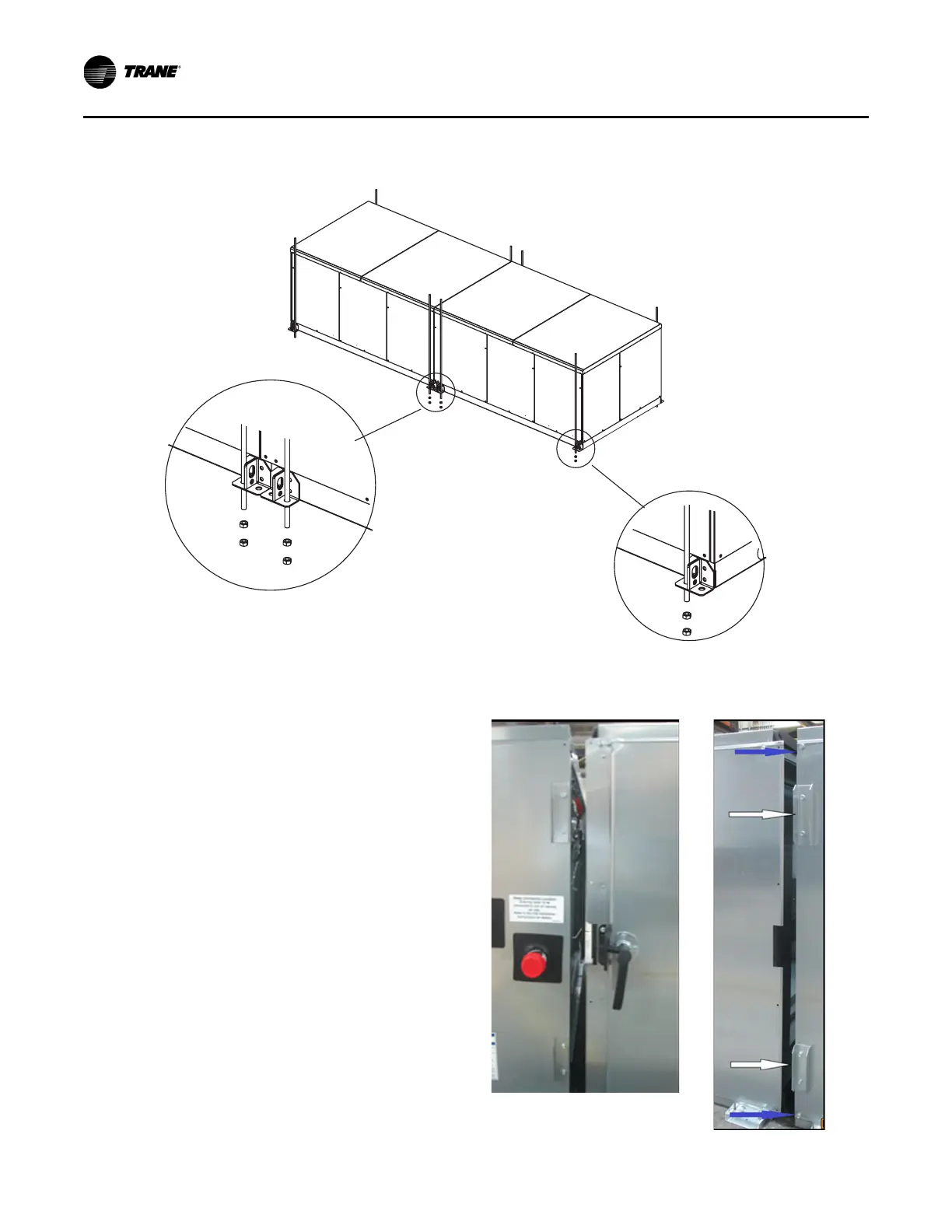

Figure 24. Ceiling suspension for unit sizes 3 to 30
Hole diameter
is 0.625 inches
Figure 25. Bring sections close, remove strap
channels.
