Installation - Mechanical
32 CLCH-SVX009L-EN

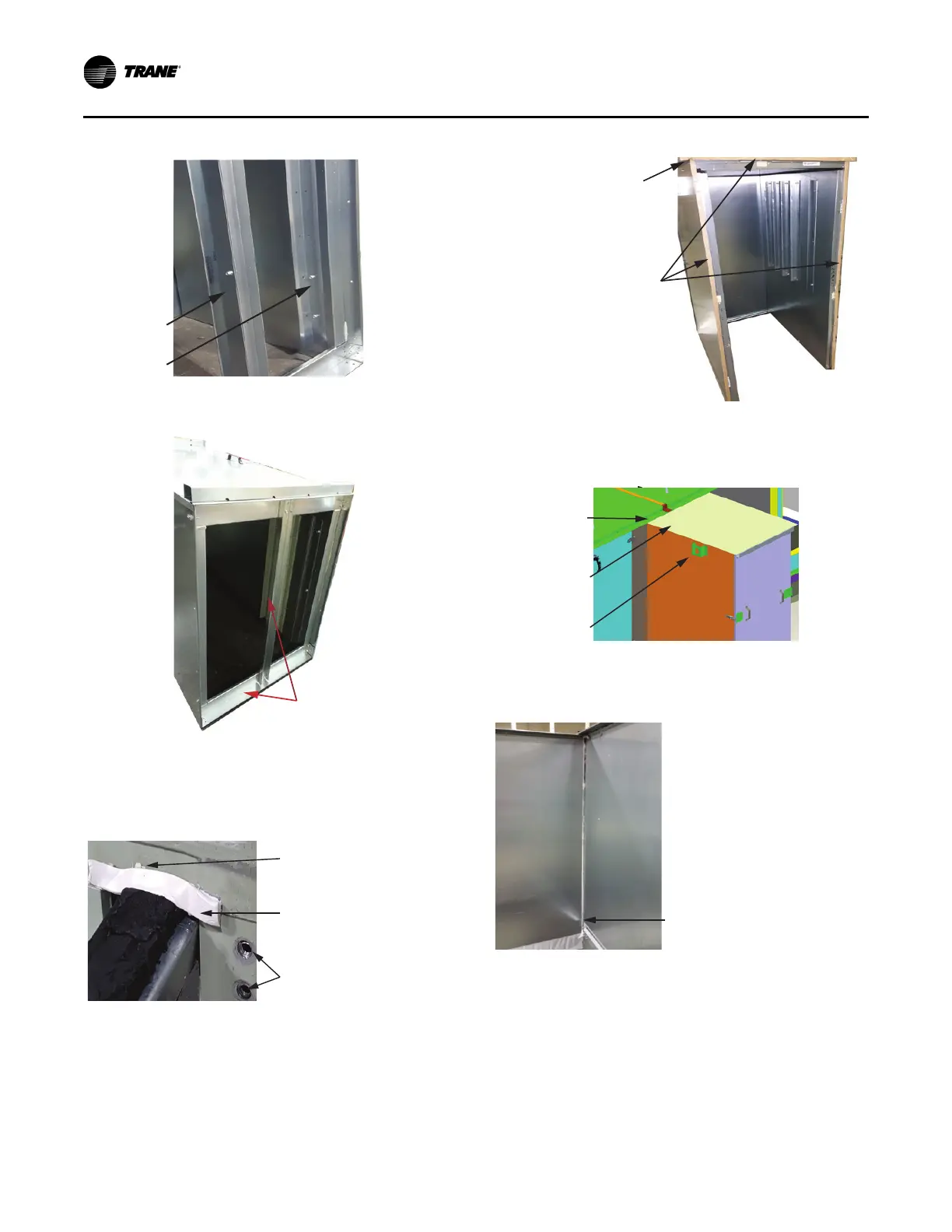

2. Remove the shipping supports from the pipe cabinet.
3. Apply Butyl tape to the unit baserail roof curb notches (tape
must extend beyond the notch) on both sides, and peel off
liner). Remove screw from baserail that will interfere with
trim angles.
4. Apply Butyl tape to the back of pipe cabinet side wall (full
height of the side wall along the outer edge to base) and
roof (full length of the roof along the outer edge), and peel
off the liner. Strips of tape must contact each other at
intersections. Tape must contact gasket.
5. Lift the pipe cabinet using the side lifting lugs. Tuck the pipe
cabinet roof underneath the unit roof overhang.
6. Place the pipe cabinet against the unit and push firmly to
squeeze Butyl tape.
7. Maker sure there is a gap between pipe cabinet and bottom
deflectors.
Remove screws
(outside the pipe cabinet)
Butyl tape must
contact gasket
Butyl tape
Butyl tape
with liner
Strips of tape must
contact each other
at intersections
Pipe cabinet
roof
Unit roof
overhang
Lifting lug
Pipe
cabinet Unit
1 5/8-in. ± 1/8-in. gap
between pipe cabinet
and horizontal deflector
To Next Page
