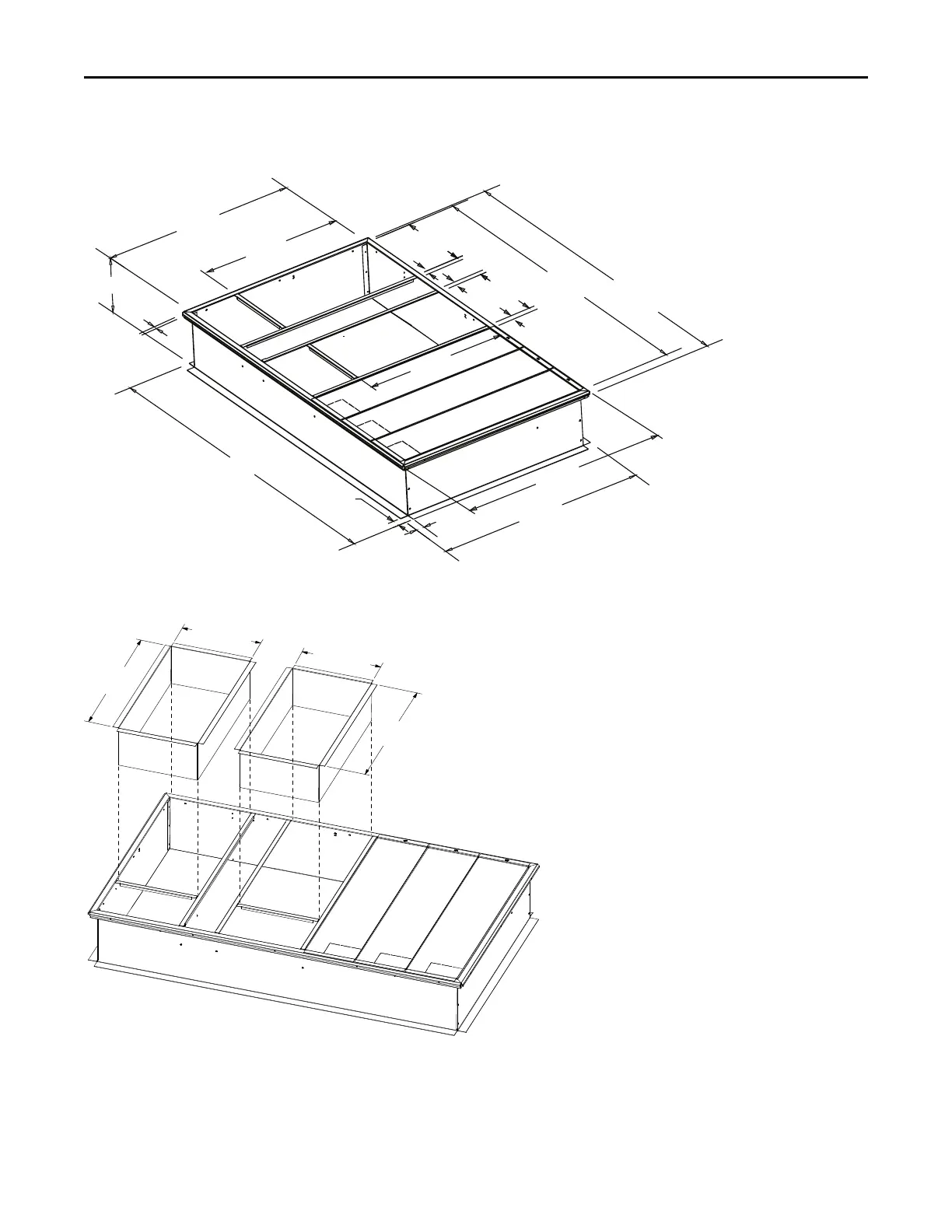

Figure 6. 6 to 10 tons high efficiency – roof curb
CLEARAN
CE 36” (914 MM)
CLEA
RANCE 36” (914 MM)
CLEAR
ANCE 48” (1219 MM)
CLEARANCE 36” (914 MM) FOR DOWNFLOW
CLEARANCE 18” (457 MM) FOR HORIZON
TA
L
14”
355 MM
1 3/4”
44 MM
46 3/8”
1178 MM
34 3/8”
873 MM
84 1/2”
2146 MM
2”
51 MM
34 3/8”
873 MM
1”
25 MM
49 7/8”
1267 MM
50 3/8”
1280 MM
2”
51 MM
83 7/8”
2130 MM
80 1/2”
2045 MM
18 1/2”
470 MM
1”
25 MM
6 5/8”
168 MM
18 1/4”
470 MM
1”
25 MM
RETURN
SUPPLY
Figure 7. 6 to 10 tons high efficiency – downflow duct connections, field fabricated
ALL FLANGES 1 1/4" (31 MM)
17 3/4”
451MM
17 3/4”
451MM
33 3/4”
857 MM
33 3/4”
857 MM
RE
TURN
SUPPLY
Dimensions and Weights
