Trane Precedent YHJ072 - Page 16

16
RT-SVX075C-EN

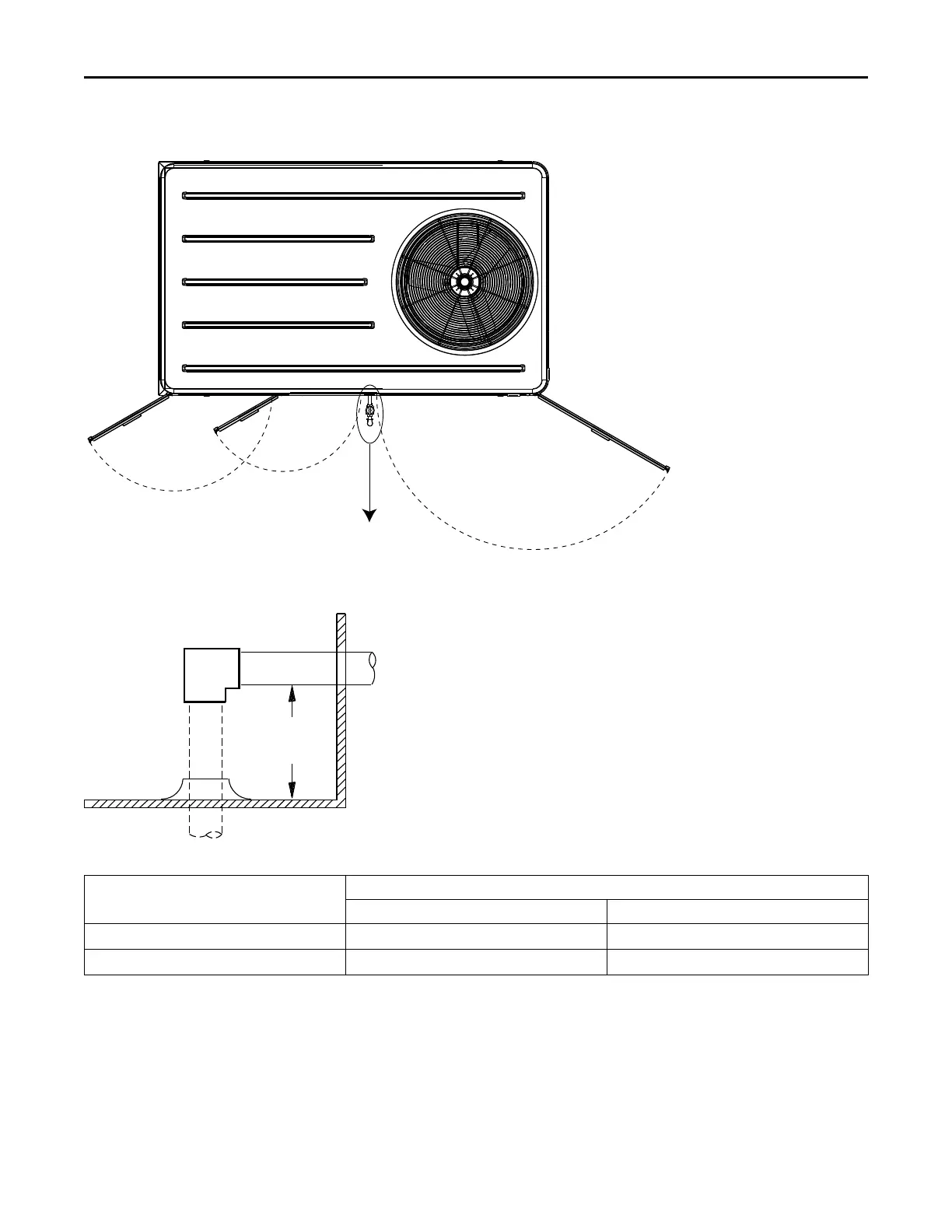

Figure 8. 6 to 10 tons high efficiency – swing diameter for hinged door(s) option
21 3/8”
543 MM
17”
432 MM
34 5/8”
879 MM
Applicable to
Y_C models only
Figure 9. 6 to 25 tons high efficiency— gas pipe height
A
Note: Height of gas pipe required from inside unit base to gas shut off assembly (factory provided).
Model
Dimension A
inch mm
YHJ (072 – 150)*
4 5/8 117
YHJ (180 – 300)*
1 3/6 30
Dimensions and Weights
