Trane Precedent YHJ072 User Manual

RT-SVX075C-EN
19

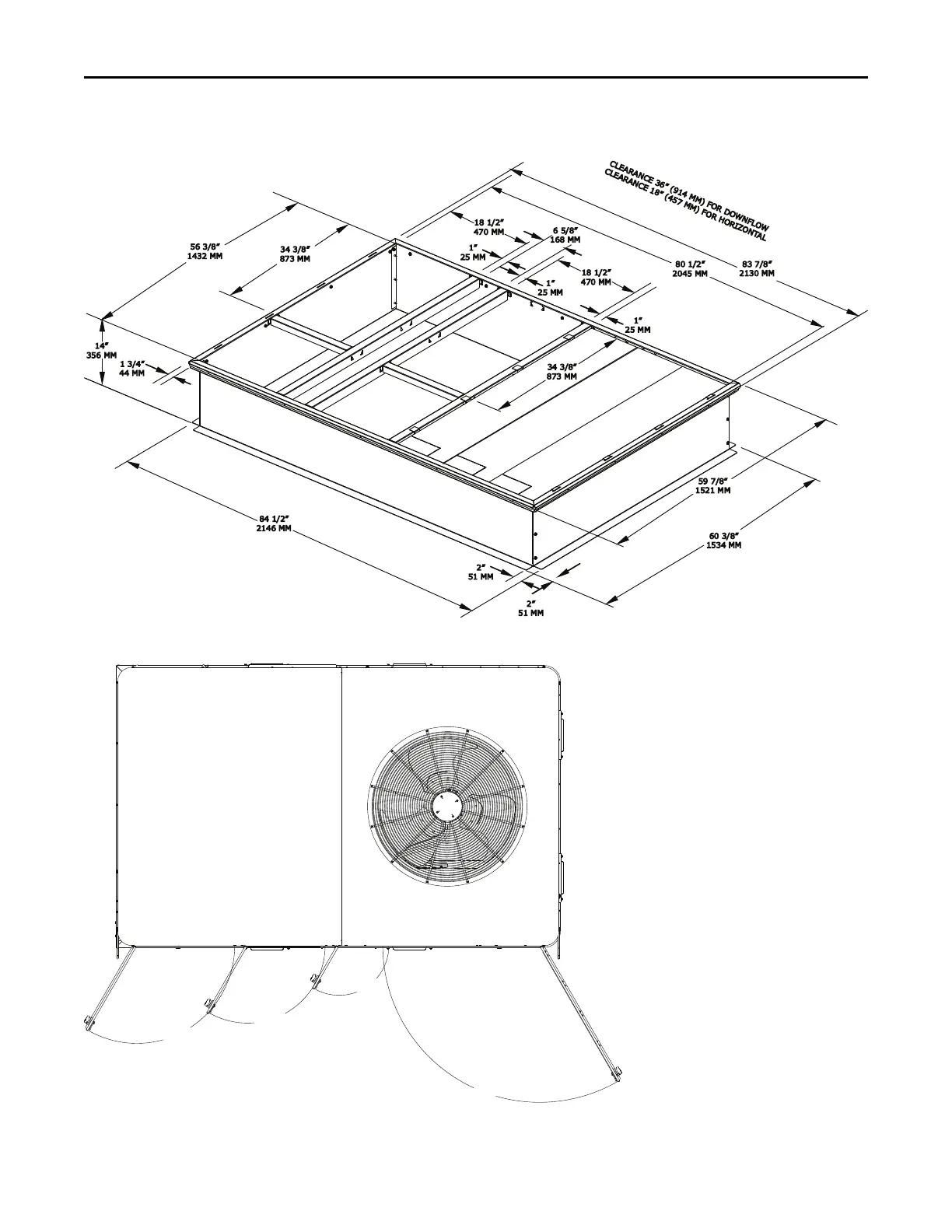

Figure 14. 12.5 tons high efficiency – roof curb
56 3/8”
1432 MM
14”
356 MM
1 3/4”
44 MM
34 3/8”
873 MM
18 1/2”
470 MM
1”
25 MM
6 5/8”
168 MM
1”
25 MM
18 1/2”
470 MM
1”
25 MM
80 1/2”
2045 MM
83 7/8”
2130 MM
CL
EA
RA
NCE 36” (914 MM) FOR DOWNFLOW
CLEARANC
E 18” (457 MM) FOR HORIZONTAL
34 3/8”
873 MM
59 7/8”
1521 MM
60 3/8”
1534 MM
2”
51 MM
2”
51 MM
84 1/2”
2146 MM
Figure 15. 12.5 tons high efficiency – swing diameter for hinged door(s) option
17-3/8"
[443]
11"
[279]
35"
[890]
21-3/4"
[554]
Dimensions and Weights

Trane Precedent YHJ072 Specifications
