Trane Precedent YHJ072 User Manual

22
RT-SVX075C-EN

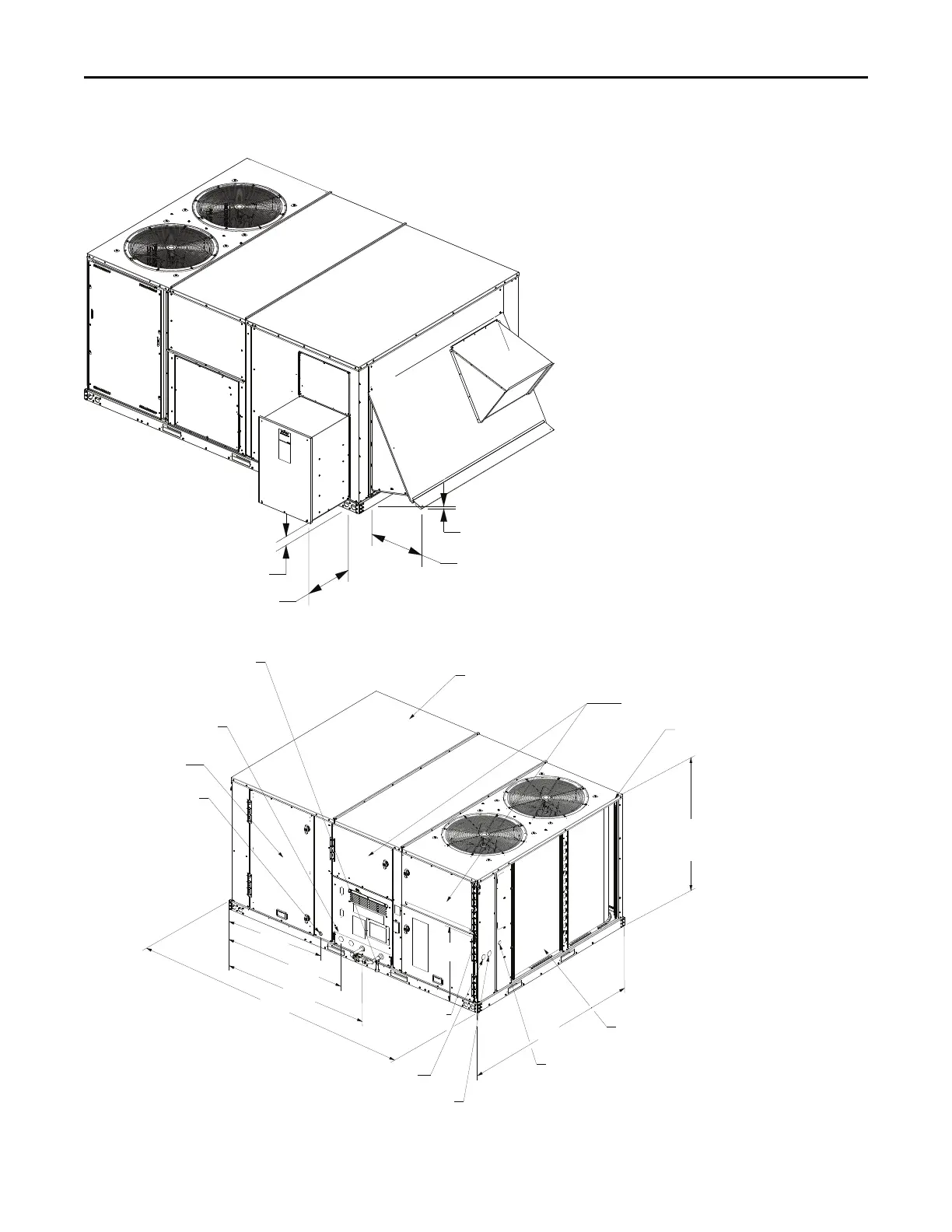

Figure 18. 15 to 25 tons high efficiency – power exhaust
21.4
4.4
22.7
7.8
Figure 19. 15 to 25 tons high efficiency
123''
[3124]
87''
[2210]
59'' D.0 CAB OR
[1499]
66'' D.1 CAB
[1676]
65 5/8''
[1668]
55''
[1398]
31 7/8''
[810]
44 3/4''
[1135]
GAS CONNECTION
3/4 NPT (250, 320, 400 MBh)
EVAPORATOR SECTION
ACCESS PANEL
CONDENSATE DRAIN
INDOOR TOP PANEL
CONTROL BOX SECTION
ACCESS PANEL
UNIT CONTROL WIRE
2'' (50 MM) DIA. HOLE
UNIT POWER WIRE
2'' (50 MM) DIA. HOLE
OUTDOOR T
OP PANEL
SERVICE GAUGE PORT ACCESS
1 3/8'' (35 MM) DIA. HOLE
2" ELECTRICAL CONN SINGLE POINT
POWER "T" MODELS ONLY
UNIT CONTROL WIRE
CONDENSER COIL
Note: Cabinet size for 15 to 15 ton units: D0.
Dimensions and Weights

Trane Precedent YHJ072 Specifications

General

Brand	Trane
Model	Precedent YHJ072
Category	Air Conditioner
Language	English
