Trane Precedent YHJ072 User Manual

RT-SVX075C-EN
23

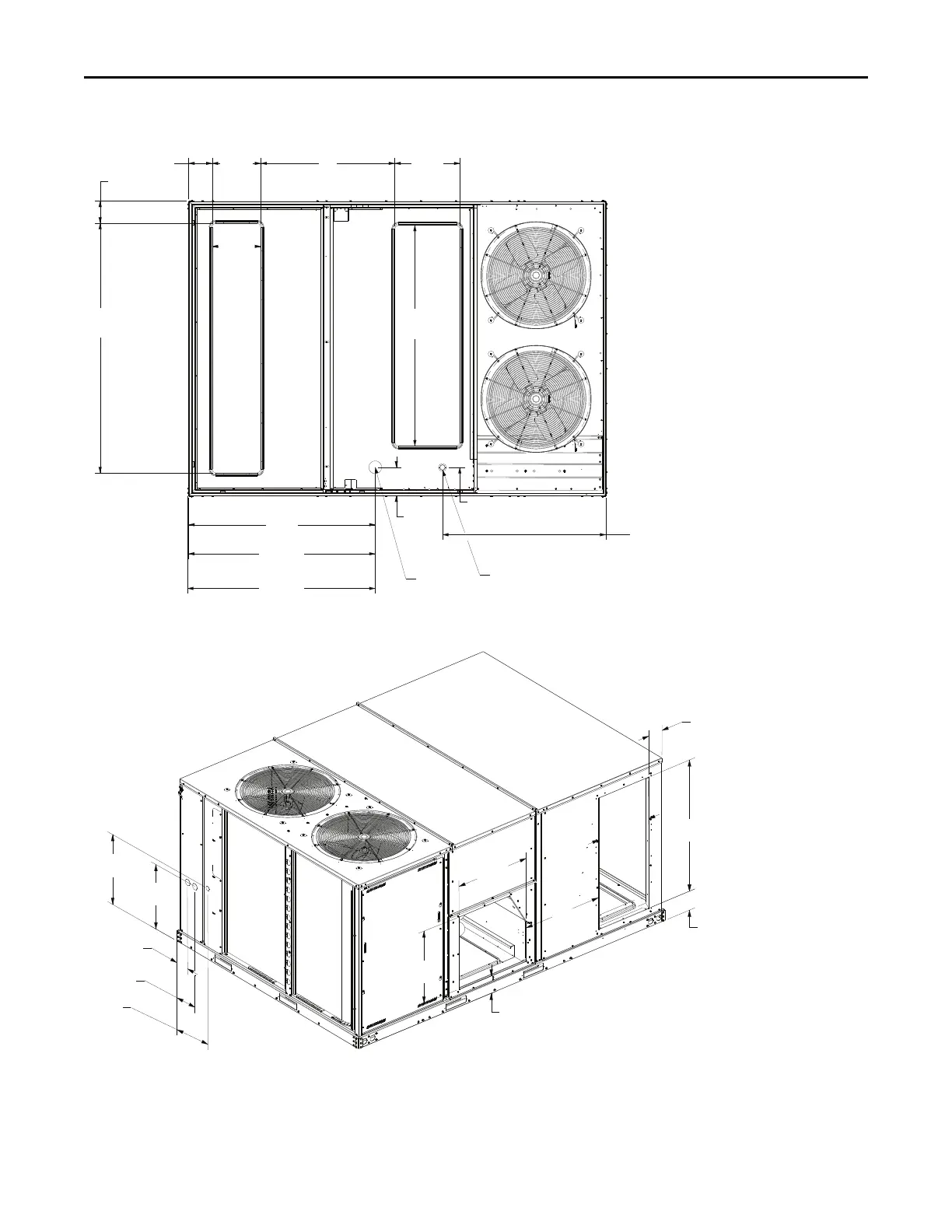

Figure 20. 15 to 25 tons high efficiency – downflow airflow supply/return, through-the-base utilities
7"
177 MM
14 3/8"
365 MM
14 7/16"
365MM
40"
1002MM
19 3/8"
488MM
65"
1652MM
73 5/8"
1868MM
8 3/8"
212MM
48"
1223MM
6 5/8''
167 MM
55.0577
[1398.467]
55.2977
[1404.563]
8''
205MM
55 3/8''
1404MM
THROUGH
THE BASE
ELECTRICAL
THROUGH
THE BASE GAS
(Y_J MODELS
ONLY)
Figure 21. 15 to 25 ton high efficiency – horizontal airflow supply/return
22 3/8''
[570]
23 11/16''
[603]
26 3/4''
[679]
29''
[737]
20 ''
[508]
46 1/2''
[1181]
5 1/4''
[133]
6''
[153]
5 1/2''
[141]
25 1/2''
[648]
4 9/16''
[114]
7 15/16''
[202]
14 1/16''
[357]
SUPPLY
RETURN
Dimensions and Weights

Trane Precedent YHJ072 Specifications

General

Brand	Trane
Model	Precedent YHJ072
Category	Air Conditioner
Language	English
