RT-SVX075C-EN
27

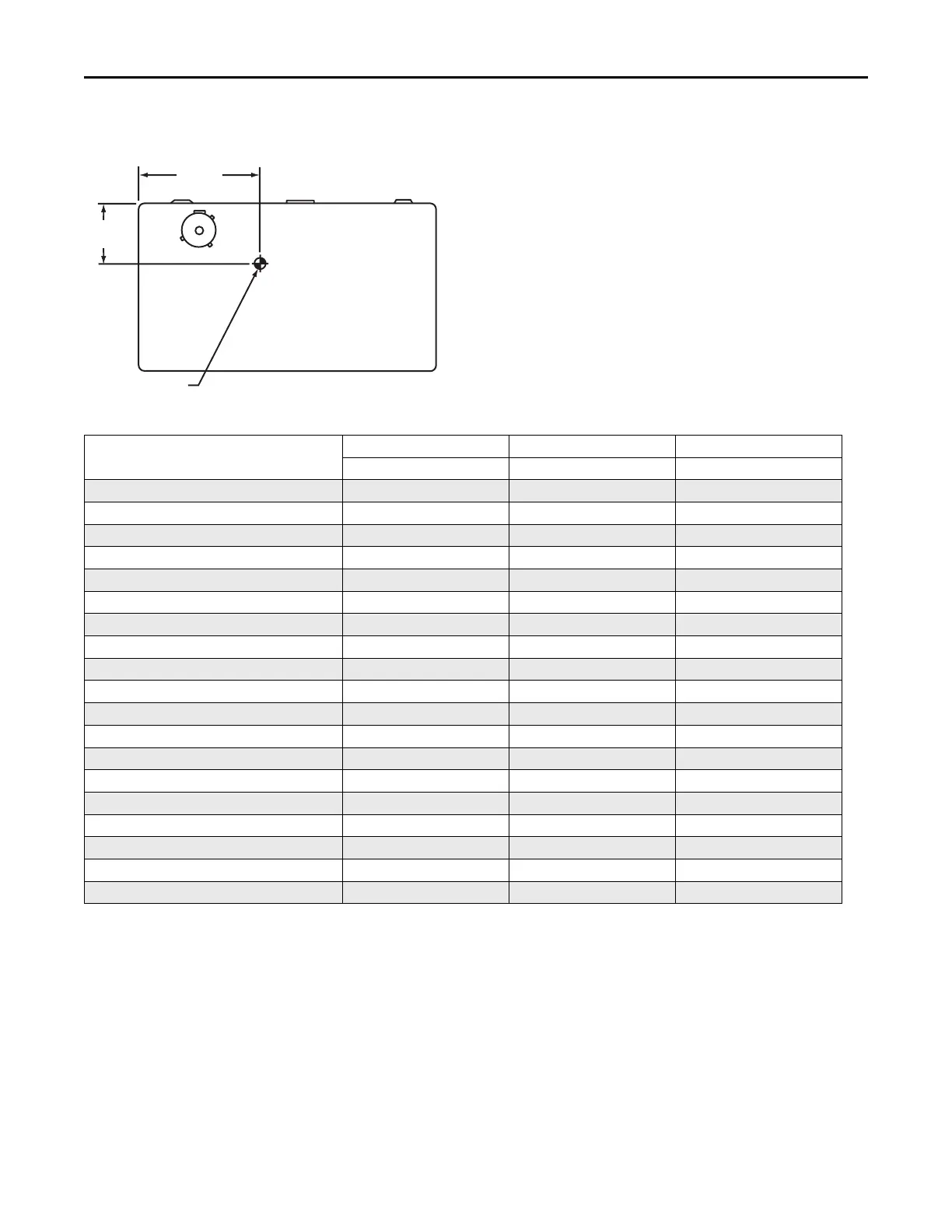

Figure 26. Corner weights
Center of Gravity
Length
Center of
Gravity
Width
Center of Gravity
A
B
C
D
Table 2. Factory installed options (FIOPS)/accessory net weights (lb)
Accessory
YHJ072-120 YHJ150 YHJ180-300
6, 7.5, 8.5, 10 Tons
12.5 Tons
15, 17.5, 20, 25 Tons
Barometric Relief 10 10 40
Economizer 36 36 91
Hinged Doors
12 12 20
Low Leak Economizer - Downflow 91 91 150
Low Leak Economizer - Horizontal — — 180
Manual Outside Air Damper
26 26 15
Motorized Outside Air Damper
30 30 82
Oversized Motor 14 — 30
Powered Convenience Outlet 38 50 50
Powered Exhaust 80 80 110
Reheat Coil 16 20 33
Roof Curb 105 111 235
Smoke Detector, Supply
5 5 5
Smoke Detector, Return
7 7 5
Stainless Steel Heat Exchanger
6 6 5
Through-the-Base Electrical
13 13 10
Through-the-Base Gas
5 5 10
Unit Mounted Circuit Breaker 5 5 10
Unit Mounted Disconnect 5 5 10
Notes:
1. Weights for options not listed are less than 5 pounds.
2. Net weight should be added to unit weight when ordering factory-installed accessories.
3. Weights are approximate.
Dimensions and Weights
