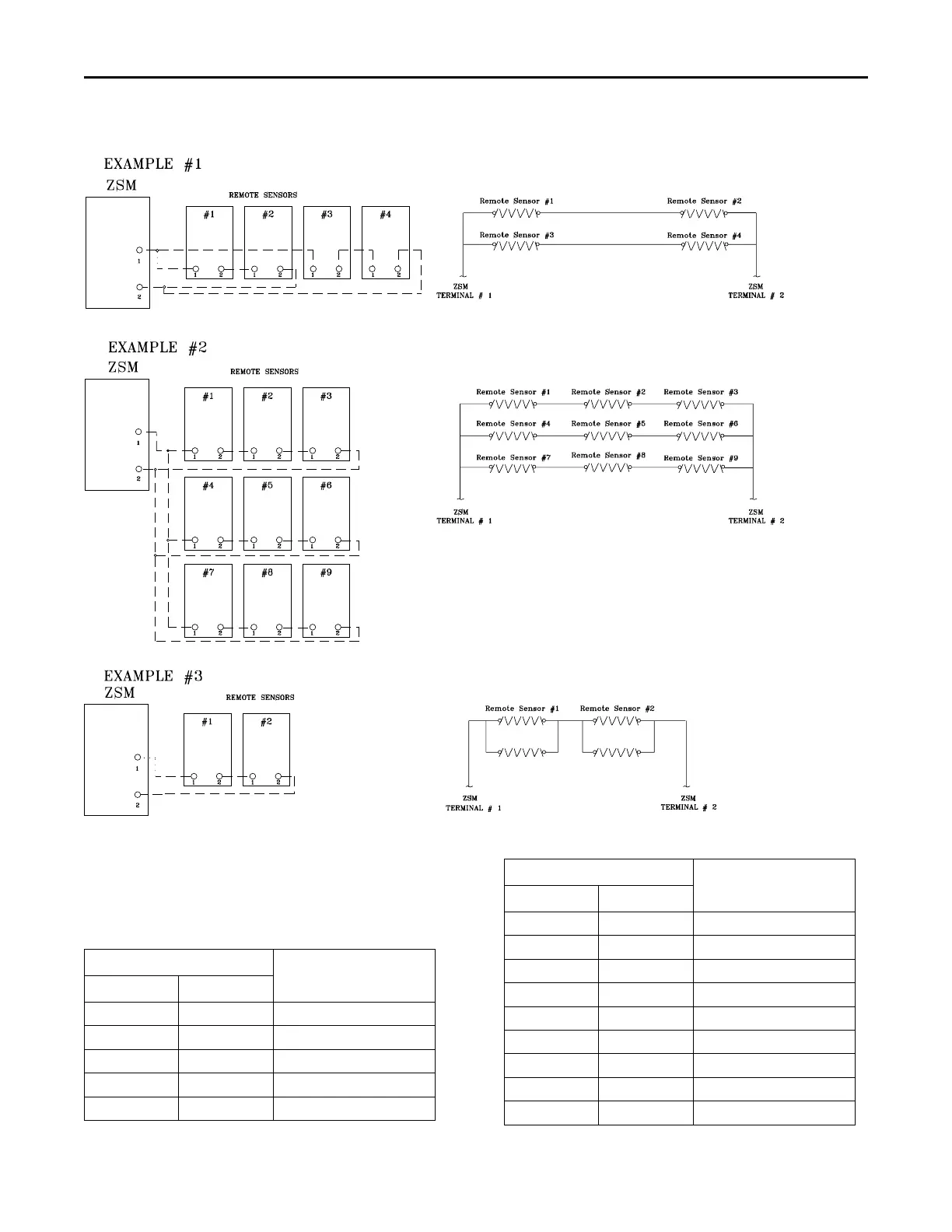

Figure 70. Examples
Note: Wiring pin numbers are for reference only. There are
multiple smoke detector systems that could have
differently numbered pins. For correct wiring details,
refer to the specific smoke detector, ship-with
literature.
Table 11. Temperature vs. resistance
Temperature
Nominal Resistance
(kOhms)
Degrees °F Degrees °C
-20 -28.9 170.1
-15 -26.1 143.5
-10 -23.3 121.4
-5 -20.6 103.0
0 -17.8 87.56
Table 11. Temperature vs. resistance (continued)
Temperature
Nominal Resistance
(kOhms)
Degrees °F Degrees °C
5 -15.0 74.65
10 -12.2 63.80
15 -9.4 54.66
20 -6.7 46.94
25 -3.8 40.40
30 -1.1 34.85
35 1.7 30.18
40° 4.4 26.22
45° 7.2 22.85
