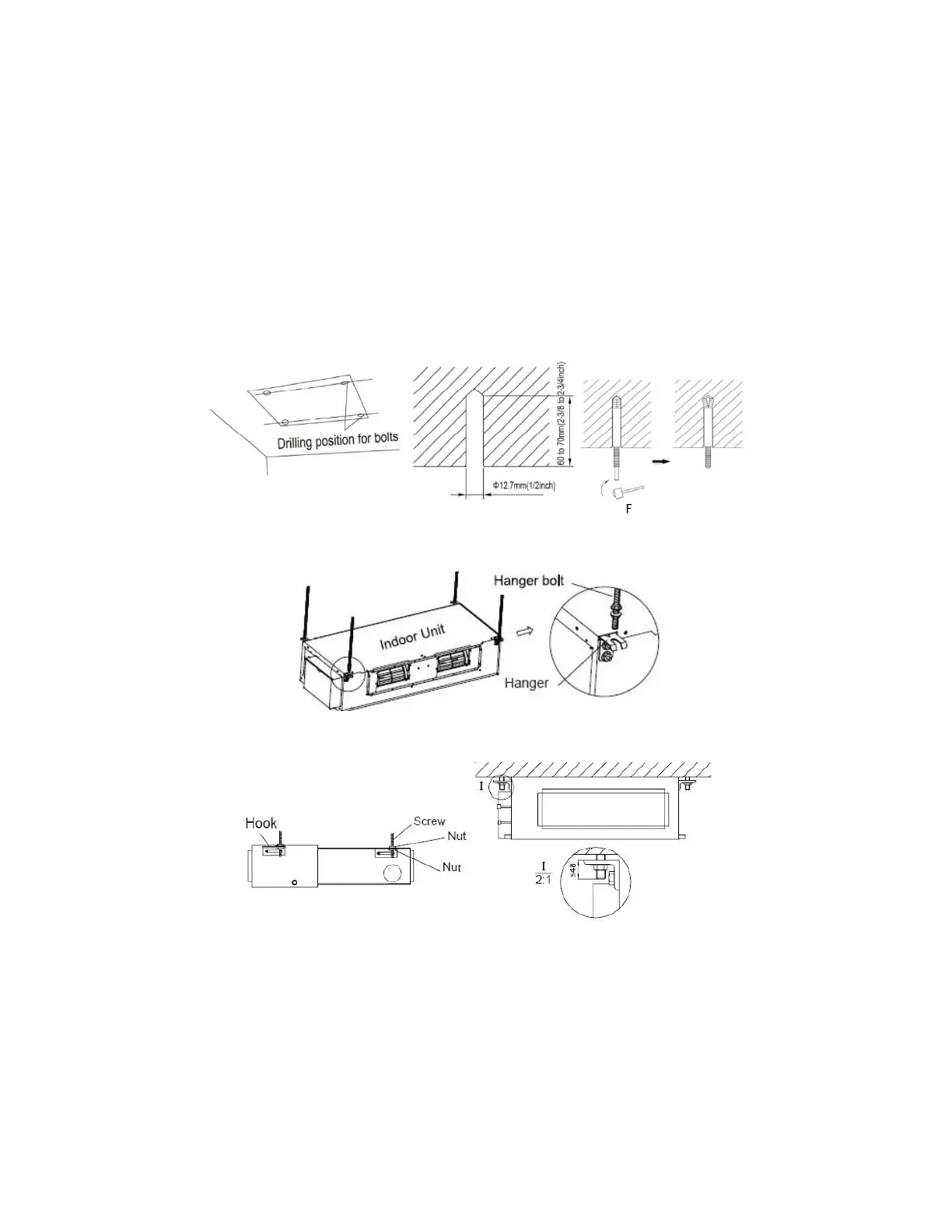

Using the installation template, drill holes for bolts (four holes). (Fig. 4.2)
4.1.3 Installing the Suspension Bolts
1. Install the bolts to the ceiling at a location strong enough to hang the unit. Mark the bolt
positions from the installation template. Drill fo u r 1 2 .7 m m (1 /2 ) d ia m e te r h o le s . (F ig . 4 .3 )
2. Insert the anchor bolts into the drilled holes, and drive the pins completely into the anchor
bolts with a hammer. (Fig. 4.4)
3. Install the hanger to the unit. (Fig. 4.5)
4. Pass the unit hangers over the bolts installed to the ceiling and install the unit with the special
nut.( Fig. 4.6)
Fig. 4.2 Fig. 4.3 ig. 4.4
Fig.4.5
Fig. 4.6
4.1.2 Drilling Holes for Bolts and Installing the Bolts
