Trane RAUJ-C60 - Page 41

SS-SVX11K-EN
41

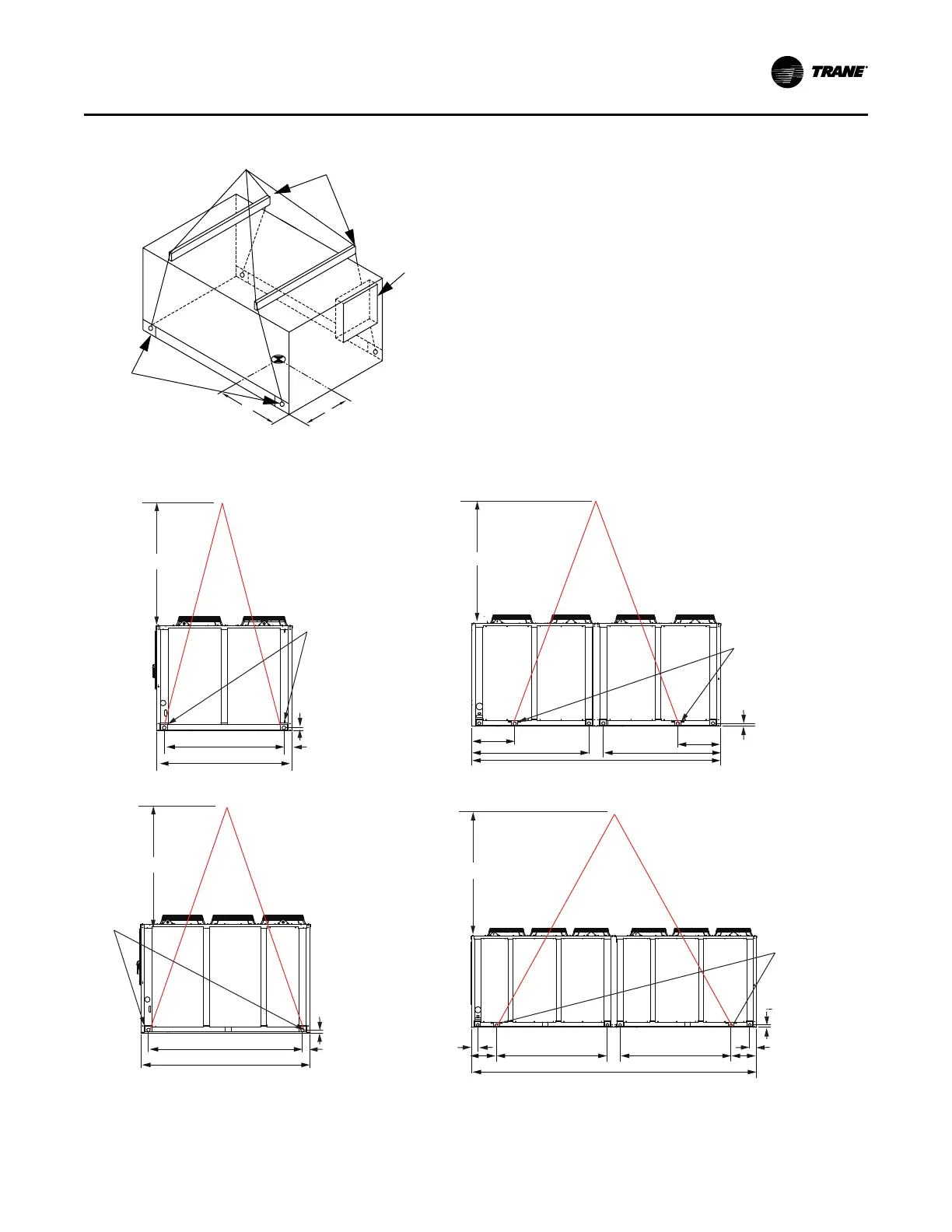

Figure 28. Rigging and center-of-gravity data
Y
8’0” Spreader Bars
(field supplied)
Control
Panel
Lifting
Brackets
X
NNoottee:: See lifting bracket location figure for more detail.
Figure 29. Lifting bracket locations
80T
30-1/4”
176-7/16”
1-13/16”
7’ 0”
Lifting
Brackets
20-40T
78”
88-5/16”
1-13/16”
5-3/16”
7’ 0”
Lifting
Brackets
100-120T
5-1/8”
20-1/16”
108-5/8” 108-11/16”
20-1/16”
5-3/16”
227-1/4”
7’ 0”
Lifting
Brackets
50, 60T
103-1/2”
113-13/16”
1-15/16”
5-3/16”
7’ 0”
Lifting
Brackets
30-1/8”
1-15/16”
83-1/8”
83-1/4”
IInnssttaallllaattiioonn MMeecchhaanniiccaall
