SS-SVX11K-EN
73

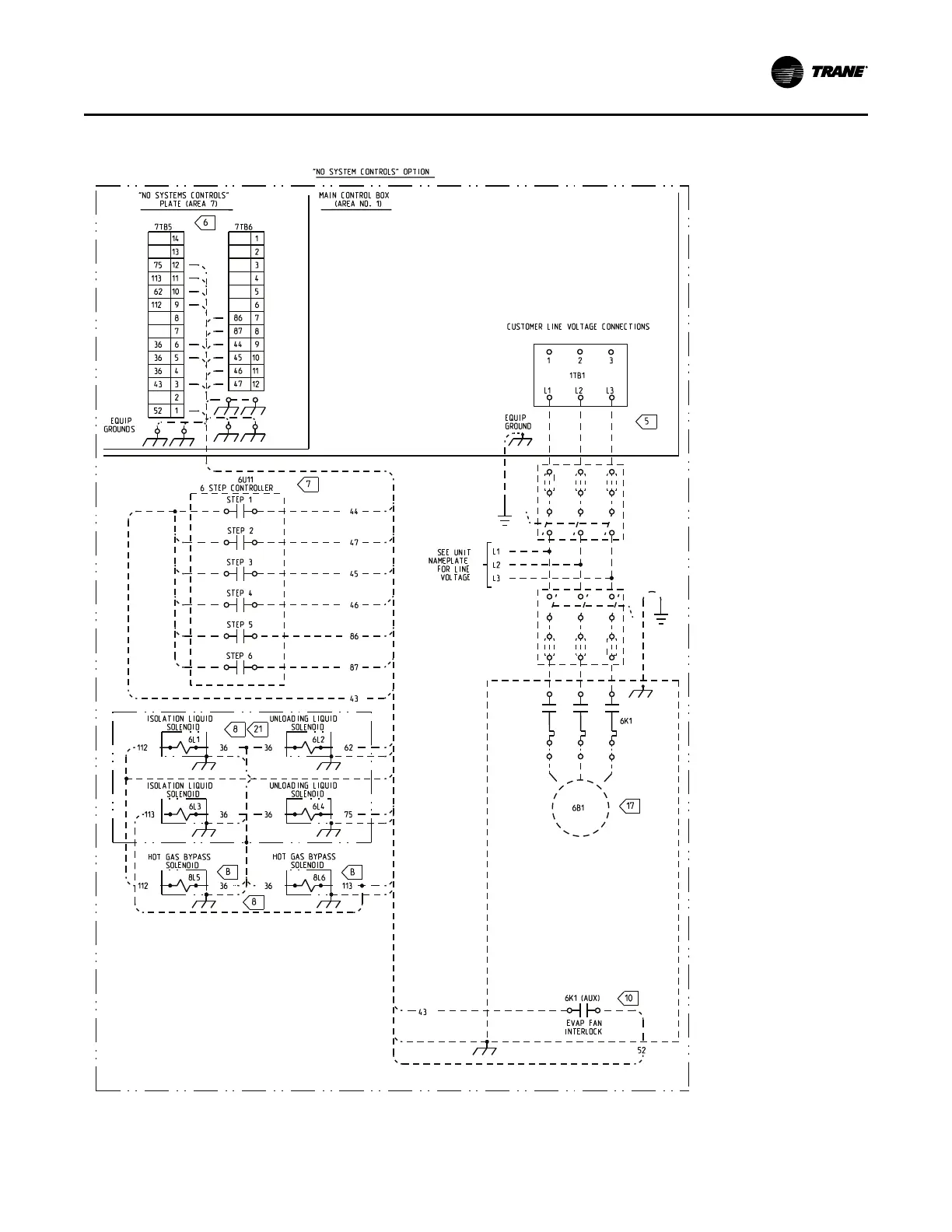

Figure 48. Field connection diagram RAUJ 80 to 120 tons — no system control
2307-9144
IInnssttaallllaattiioonn EElleeccttrriiccaall
