80
SS-SVX11K-EN
• Hot or cold air from ducts;
• Radiant heat from the sun, or from appliances;
• Concealed pipes and chimneys;
• Vibrating surfaces; or
• Unconditioned areas behind the thermostat (e.g.,
outside walls).
Mount the thermostat subbase on either a standard 2"
X 4" handy box, a comparable European outlet box, or
on any nonconductive flat surface. See illustration
below for mounting details.

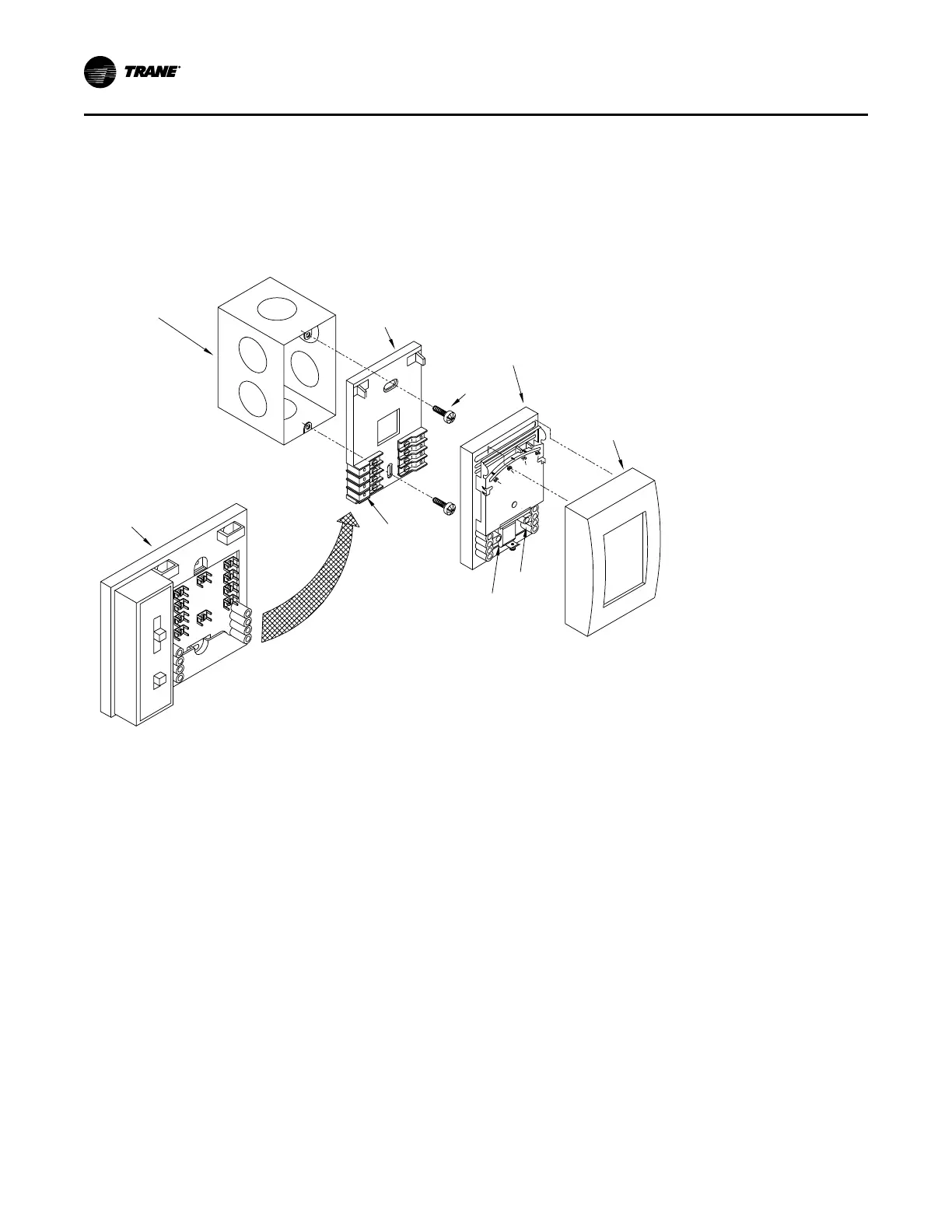

Figure 54. T7067 electronic zone thermostat & Q667 switching subbase
Switching Subbase
(Honeywell Q667;
See Note 2)
Captive-Terminal/
Mounting Screws
Heat LED
Cool LED
2” x 4”
Outlet Box
(Field Supplied)
Wall Plate
Electric Thermostat
(Honeywell T7067)
Mounting Screws
Thermostat Cover
Notes:
1. Step-by-step subbase and thermostat installation instructions
are packaged with these devices.
2. The switching subbase is only provided when the unit is ordered
without a remote panel.
RAUC\CV Zone Thermostat
NNoottee:: Specific installation instructions are packaged with each thermostat and subbase. For subbase and thermostat
terminal identification, see figure below.
IInnssttaallllaattiioonn EElleeccttrriiccaall
