18 RRU-SVX01E-EN
Unit Weight/Rigging
Rigging
Refer to Figure 9 and Table 1 for typical unit operating
weights rigging before proceeding.
3. Remove the shipping crate from around the unit. Do
not remove the crating from the top of the unit.
4. Rig the unit as shown in Figure 9. Attach adequate
strength lifting slings to all four lifting brackets in the
unit base rail. Do not use cables, chains, or slings
except as shown.
5. Install a lifting bar, as shown in Figure 9, to protect the
unit and to facilitate a uniform lift. The minimum
distance between the lifting hook and the top of the
unit should be 7 feet.
6. Test-lift the unit to ensure it is properly rigged and
balanced, make any necessary rigging adjustments.
7. Lift the unit and position it into place.
8. Down flow units; align the base rail of the unit with the
curb rail while lowering the unit onto the curb. Make
sure that the gasket on the curb is not damaged while
positioning the unit.
WARNING
Heavy Objects!
Failure to follow instructions below or properly lift unit
could result in unit dropping and possibly crushing
operator/technician which could result in death or
serious injury, and equipment or property-only damage.
Ensure that all the lifting equipment used is properly
rated for the weight of the unit being lifted. Each of the
cables (chains or slings), hooks, and shackles used to
lift the unit must be capable of supporting the entire
weight of the unit. Lifting cables (chains or slings) may
not be of the same length. Adjust as necessary for even
unit lift.
WARNING
Improper Unit Lift!
Failure to properly lift unit in a LEVEL position could
result in unit dropping and possibly crushing operator/
technician which could result in death or serious injury,
and equipment or property-only damage.
Test lift unit approximately 24 inches (61 cm) to verify
proper center of gravity lift point. To avoid dropping of
unit, reposition lifting point if unit is not level.

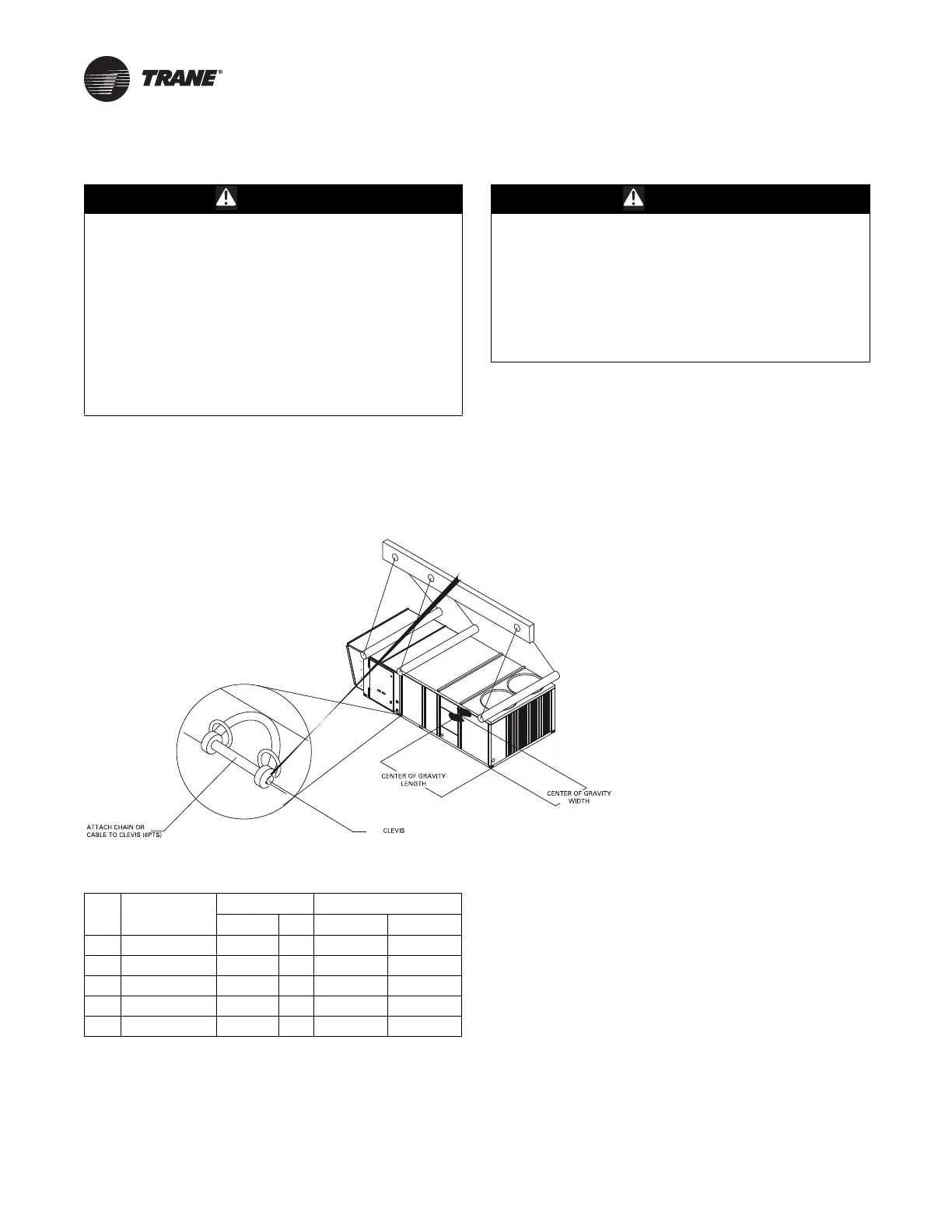

Figure 9. Rigging and center-of-gravity data
Table 1. Typical unit weights
Tons
Unit Model
Number
Weight (lb) Center of Gravity (in.)
Shipping Net Length Width
10 RRU120F*DQA 1772 1617 62 22
12.5 RRU150F*DBA 3182 2775 76 36
15 RRU180F*DCA 3250 2777 76 36
20 RRU240F*DCA 3321 2876 76 35
25 RRU300F*DCA 3460 2982 76 35
