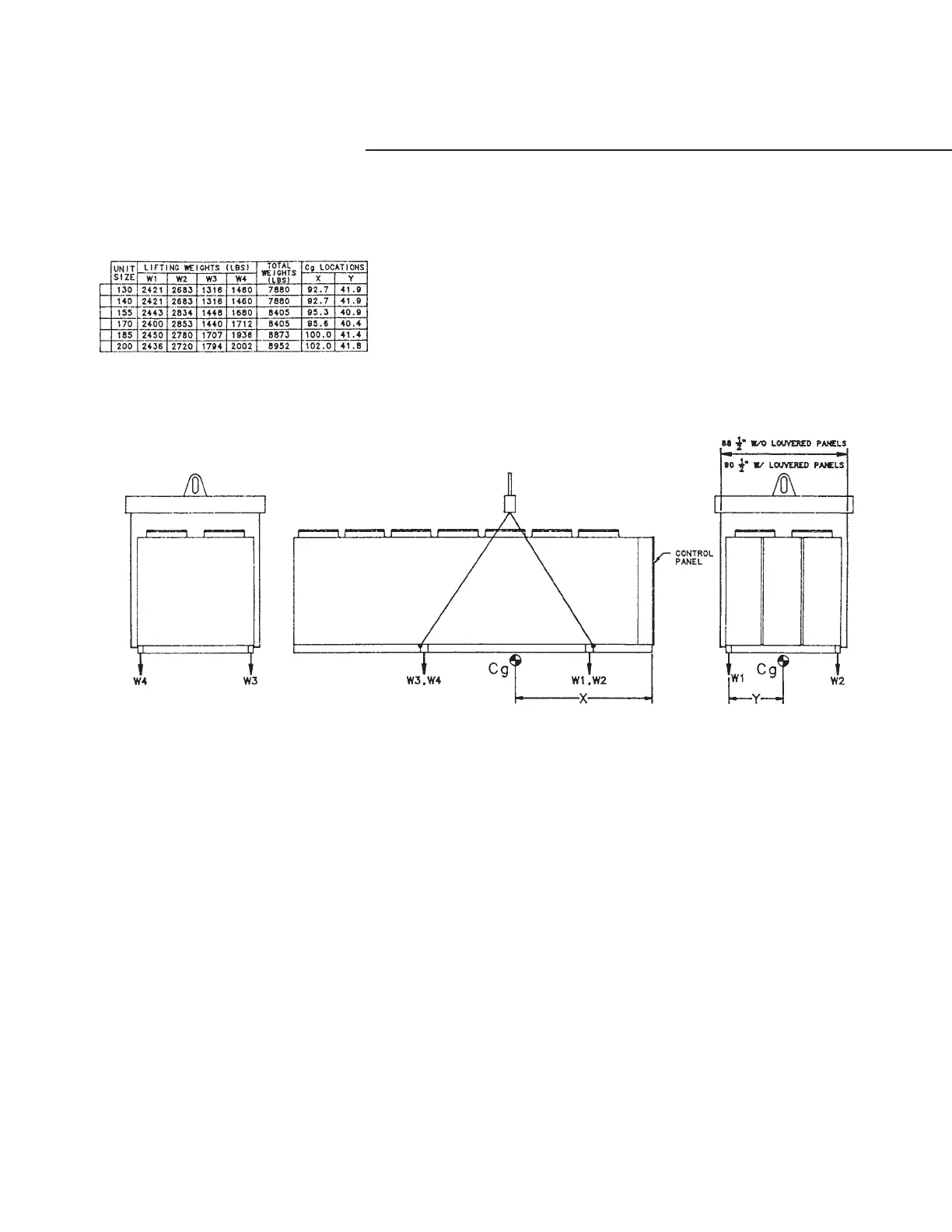

Figure 17
Rigging and Lifting Weights for
RTAA Outdoor Unit with
Remote Evaporator Option
NOTES:
1. LIFTING CHAINS (CABLES) WILL NOT BE
THE SAME LENGTH. ADJUST TO KEEP
UNIT LEVEL WHILE LIFTING.
2. DO NOT FORK LIFT UNIT.
3. WEIGHTS ARE TYPICAL FOR UNITS
WITH R-22 CHARGE.
4. DEDUCT 740 FROM TOTAL WEIGHT FOR
UNITS WITHOUT ARCHITECTURAL
LOUVER PANELS.
